D.I.Y. 996TT Redneck Engine Build Thread.

Going back to a few years ago I managed to blow up my car. We think it was a hydrolock situation and it destroyed my motor. I think it was a combination of bad gas and boost creep in cold weather that detonated and lifted my heads resulting in a hydrolock. You can see that thread here: https://www.6speedonline.com/forums/...otor-pics.html Anyways, I got into riding motorcycles a bit and left my car on jackstands in the garage for a few years while I debated what to do about it. I didn't want to wait this long but I got busy with a few career projects and such. I was planning on getting a pull out motor but after taking my engine apart in my garage I decided that I wanted a built motor and that I could find parts online and build it myself (against much of the advice given here! Sorry BLKMGK ). I have quite a bit of experience building motors. I have built a few hot ATV motors, a CBR600F4 motor, and a nice Oldsmobile 455 motor with a friend. I began collecting parts last summer. I got a set of cases from Specialized German dismantler. Prodigymb hooked me up with a set of 997 pistons, liners, stock oil pump, and 997 lifters from his build which were removed with 20k miles on them. CRR hooked me up with a crank and some Pauter rods from his old 996GT2 with less than 10k on them. I got a BBI underdrive pulley from BlackHorseTurbo. Sean at Silly Rabbit drilled and tapped my cases for 12mm ARP studs. I was also able to squeeze some helpful advice out of Sean after loitering around his shop for around 5 hours (I won't reveal his engine building secrets though ). I plan to use Sean's Cometic head gasket. I am using the old IMS and heads/cams/housings from my old engine with about 58k on them. I am lightly porting the heads myself and am getting the valves all cleaned up and sealed well. I have new timing chains also. I plan to just go back to my old setup with K24 billet turbos running 1.2 bar and run a bigger setup in the future. I was fine with what I had earlier and I am running out of $$! Yes I am doing this inside my house as it is the cleanest place I have. I am waiting on some new rod bolts but I will post up and update my progress. I spent a lot of time measuring and having things magnafluxed to make sure my parts are good. Feel free to comment with any advice or criticism. I assembled the crankcase already with plastigage to double check clearances and it all looks good, so here we go:

Attached Thumbnails Click image for larger version

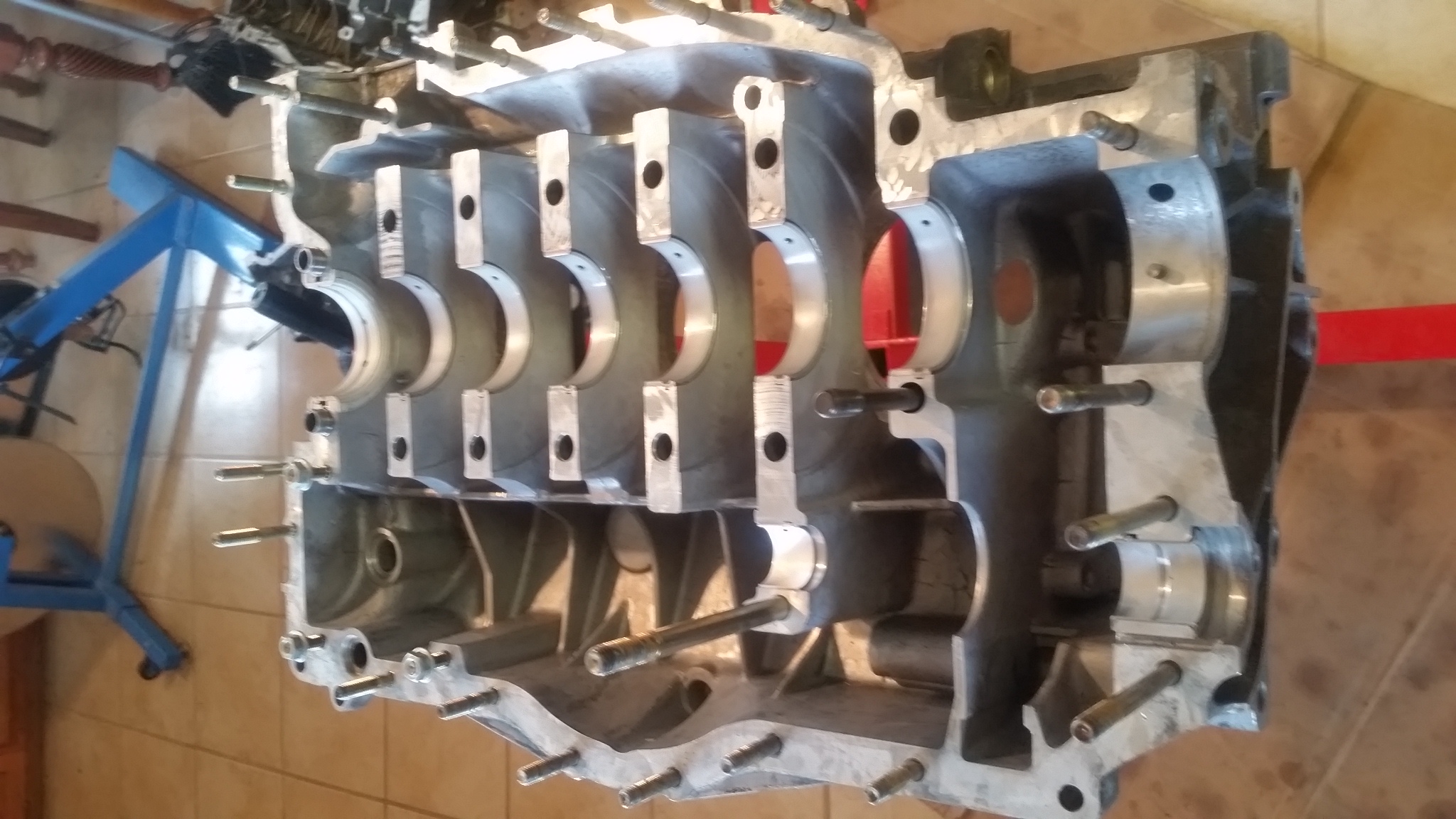

Name:	1parts.jpg
Views:	326
Size:	832.6 KB

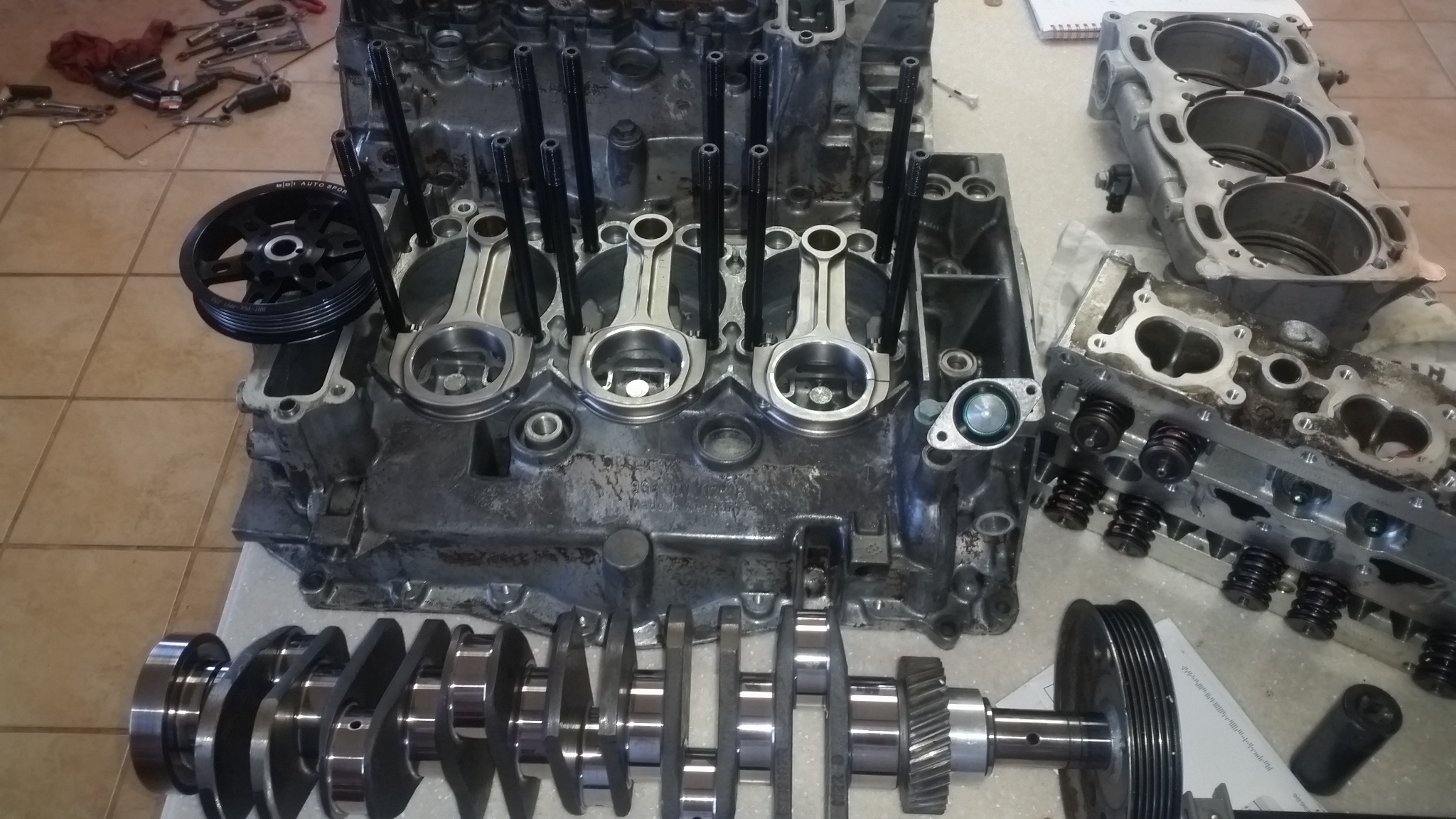

ID:	453041   Click image for larger version

Name:	2studs.jpg
Views:	249
Size:	982.4 KB

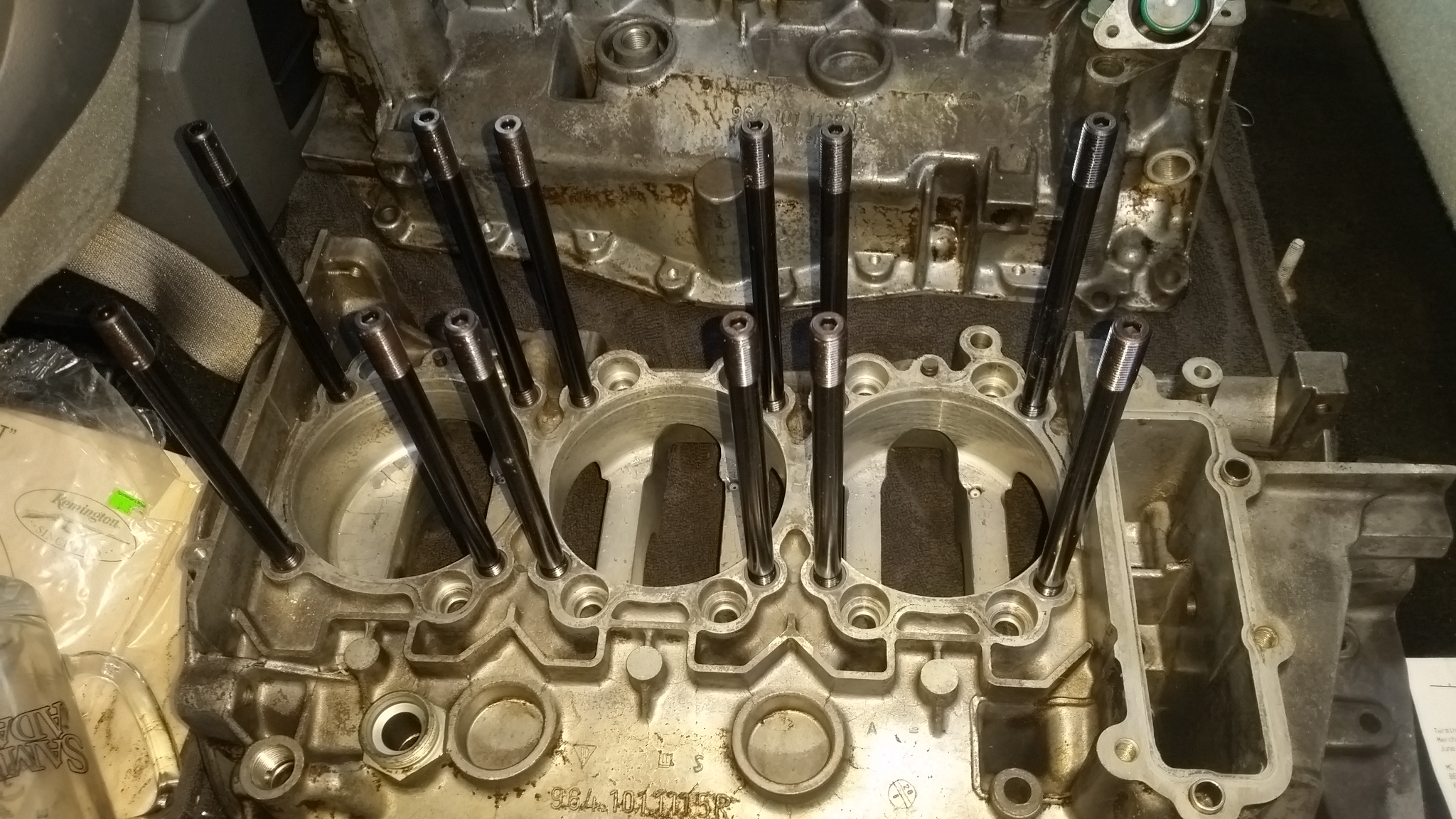

ID:	453042   Click image for larger version

Name:	4case.jpg
Views:	242
Size:	698.7 KB
ID:	453043

Last edited by brnrdtns; 07-08-2016 at 11:26 PM.
  #2
Old 07-08-2016, 08:08 PM
Banned
Join Date: Dec 2008
Location: tn
Age: 57
Posts: 5,598
Rep Power: 622
32krazy! has a reputation beyond repute32krazy! has a reputation beyond repute32krazy! has a reputation beyond repute32krazy! has a reputation beyond repute32krazy! has a reputation beyond repute32krazy! has a reputation beyond repute32krazy! has a reputation beyond repute32krazy! has a reputation beyond repute32krazy! has a reputation beyond repute32krazy! has a reputation beyond repute32krazy! has a reputation beyond repute
looks great! let me know if i can help in any way.

  #3
Old 07-08-2016, 08:39 PM
VGLNTE1's Avatar
Registered User
Join Date: Dec 2011
Location: Illinois
Posts: 1,507
Rep Power: 125
VGLNTE1 has a reputation beyond reputeVGLNTE1 has a reputation beyond reputeVGLNTE1 has a reputation beyond reputeVGLNTE1 has a reputation beyond reputeVGLNTE1 has a reputation beyond reputeVGLNTE1 has a reputation beyond reputeVGLNTE1 has a reputation beyond reputeVGLNTE1 has a reputation beyond reputeVGLNTE1 has a reputation beyond reputeVGLNTE1 has a reputation beyond reputeVGLNTE1 has a reputation beyond repute
This man is single. lol

  #4
Old 07-08-2016, 09:05 PM
BLKMGK's Avatar
Registered User
Join Date: Apr 2009
Location: Virginia
Age: 51
Posts: 2,980
Rep Power: 570
BLKMGK has a reputation beyond reputeBLKMGK has a reputation beyond reputeBLKMGK has a reputation beyond reputeBLKMGK has a reputation beyond reputeBLKMGK has a reputation beyond reputeBLKMGK has a reputation beyond reputeBLKMGK has a reputation beyond reputeBLKMGK has a reputation beyond reputeBLKMGK has a reputation beyond reputeBLKMGK has a reputation beyond reputeBLKMGK has a reputation beyond repute
Which 12mm are you going with? Fingers crossed for you!

  #5
Old 07-08-2016, 10:15 PM
brnrdtns's Avatar
Registered User
Thread Starter
Join Date: Jan 2012
Location: Boise, Idaho
Age: 35
Posts: 1,475
Rep Power: 132
brnrdtns has a reputation beyond reputebrnrdtns has a reputation beyond reputebrnrdtns has a reputation beyond reputebrnrdtns has a reputation beyond reputebrnrdtns has a reputation beyond reputebrnrdtns has a reputation beyond reputebrnrdtns has a reputation beyond reputebrnrdtns has a reputation beyond reputebrnrdtns has a reputation beyond reputebrnrdtns has a reputation beyond reputebrnrdtns has a reputation beyond repute
They are ARP. Sean has a few cars running around with them and they are working great. To simplify here is my parts list:

2003 996TT cases
stock crank, balanced, micropolished
Pauter rods
997TT pistons and liners
ARP 12mm studs
Glyco stock bearings
Lightly ported brnrdtns special order 20 hours with a dye grinder DIY heads
Cometic head gasket
997 lifters
Gasket kit from EBS racing
BBI underdrive pulley
k24 billet turbos from Blouch
inlet pipes
custom 3 inch exhaust
60lb injectors
Protomotive tune
Spec stage 2+ clutch with GT2 conversion
welded coolant fittings


Last edited by brnrdtns; 07-09-2016 at 02:59 PM.
  #6
Old 07-08-2016, 10:31 PM
brnrdtns's Avatar
Registered User
Thread Starter
Join Date: Jan 2012
Location: Boise, Idaho
Age: 35
Posts: 1,475
Rep Power: 132
brnrdtns has a reputation beyond reputebrnrdtns has a reputation beyond reputebrnrdtns has a reputation beyond reputebrnrdtns has a reputation beyond reputebrnrdtns has a reputation beyond reputebrnrdtns has a reputation beyond reputebrnrdtns has a reputation beyond reputebrnrdtns has a reputation beyond reputebrnrdtns has a reputation beyond reputebrnrdtns has a reputation beyond reputebrnrdtns has a reputation beyond repute
Originally Posted by VGLNTE1 View Post
This man is single. lol
I like to tell people that I skipped my first marriage.

  #7
Old 07-09-2016, 09:03 AM
Slider's Avatar
Registered User
Join Date: Apr 2010
Location: Victoria, BC
Posts: 2,026
Rep Power: 194
Slider has a reputation beyond reputeSlider has a reputation beyond reputeSlider has a reputation beyond reputeSlider has a reputation beyond reputeSlider has a reputation beyond reputeSlider has a reputation beyond reputeSlider has a reputation beyond reputeSlider has a reputation beyond reputeSlider has a reputation beyond reputeSlider has a reputation beyond reputeSlider has a reputation beyond repute
This looks like fun!

  #8
Old 07-09-2016, 09:27 AM
gophaster's Avatar
Registered User
Join Date: Jan 2012
Location: South FLA
Posts: 709
Rep Power: 201
gophaster has a reputation beyond reputegophaster has a reputation beyond reputegophaster has a reputation beyond reputegophaster has a reputation beyond reputegophaster has a reputation beyond reputegophaster has a reputation beyond reputegophaster has a reputation beyond reputegophaster has a reputation beyond reputegophaster has a reputation beyond reputegophaster has a reputation beyond reputegophaster has a reputation beyond repute
Lmao, or at least soon to be single.. ...Anyway, OP looking great!! You will have a beast when done!!

Originally Posted by VGLNTE1 View Post
This man is single. lol

  #9
Old 07-09-2016, 10:16 AM
jpflip's Avatar
Registered User
Join Date: Mar 2008
Location: Montreal Canada
Age: 64
Posts: 2,731
Rep Power: 255
jpflip has a reputation beyond reputejpflip has a reputation beyond reputejpflip has a reputation beyond reputejpflip has a reputation beyond reputejpflip has a reputation beyond reputejpflip has a reputation beyond reputejpflip has a reputation beyond reputejpflip has a reputation beyond reputejpflip has a reputation beyond reputejpflip has a reputation beyond reputejpflip has a reputation beyond repute
Would love to live not far and give you a hand..... Beautiful job!!!!!

  #10
Old 07-09-2016, 10:29 AM
Registered User
Join Date: Nov 2013
Location: Batavia, IL
Age: 39
Posts: 448
Rep Power: 48
vogz has a reputation beyond reputevogz has a reputation beyond reputevogz has a reputation beyond reputevogz has a reputation beyond reputevogz has a reputation beyond reputevogz has a reputation beyond reputevogz has a reputation beyond reputevogz has a reputation beyond reputevogz has a reputation beyond reputevogz has a reputation beyond reputevogz has a reputation beyond repute
Awesome man! I build the engine on my 350Z myself (just outsourced drilling for bigger headstuds). It was my first engine build ever and ran strong from 2007 until I sold it last year. It's been flawless for the new owner as far as I know too!

I predict nothing but success for you.

The great thing about building it yourself is you will take the time to make sure everything is perfect when a shop that turns out engine builds daily might not.

  #11
Old 07-09-2016, 10:50 AM
unvmy996's Avatar
Registered User
Join Date: Sep 2006
Posts: 7,475
Rep Power: 700
unvmy996 has a reputation beyond reputeunvmy996 has a reputation beyond reputeunvmy996 has a reputation beyond reputeunvmy996 has a reputation beyond reputeunvmy996 has a reputation beyond reputeunvmy996 has a reputation beyond reputeunvmy996 has a reputation beyond reputeunvmy996 has a reputation beyond reputeunvmy996 has a reputation beyond reputeunvmy996 has a reputation beyond reputeunvmy996 has a reputation beyond repute
Originally Posted by VGLNTE1 View Post
This man is single. lol
Lol or is about to be

  #12
Old 07-09-2016, 11:10 AM
brnrdtns's Avatar
Registered User
Thread Starter
Join Date: Jan 2012
Location: Boise, Idaho
Age: 35
Posts: 1,475
Rep Power: 132
brnrdtns has a reputation beyond reputebrnrdtns has a reputation beyond reputebrnrdtns has a reputation beyond reputebrnrdtns has a reputation beyond reputebrnrdtns has a reputation beyond reputebrnrdtns has a reputation beyond reputebrnrdtns has a reputation beyond reputebrnrdtns has a reputation beyond reputebrnrdtns has a reputation beyond reputebrnrdtns has a reputation beyond reputebrnrdtns has a reputation beyond repute
Originally Posted by vogz View Post
Awesome man! I build the engine on my 350Z myself (just outsourced drilling for bigger headstuds). It was my first engine build ever and ran strong from 2007 until I sold it last year. It's been flawless for the new owner as far as I know too!

I predict nothing but success for you.

The great thing about building it yourself is you will take the time to make sure everything is perfect when a shop that turns out engine builds daily might not.
The Porsche motor is pretty difficult to build because its oil gallery system is complex and has a ton of seals in it that you can not damage or they will leak and probably result in a spun bearing. There are a lot of ways to die. I would be nervous about the head sealing procedure if I were using 10mm studs, but with the 12's I am comfortable with it. I plan to have EBS Racing down in Reno set my cams for me and I should be good to go.

  #13
Old 07-09-2016, 08:30 PM
OhioC5's Avatar
Registered User
Join Date: Mar 2009
Location: Akron, Ohio
Posts: 399
Rep Power: 35
OhioC5 is a splendid one to beholdOhioC5 is a splendid one to beholdOhioC5 is a splendid one to beholdOhioC5 is a splendid one to beholdOhioC5 is a splendid one to beholdOhioC5 is a splendid one to beholdOhioC5 is a splendid one to beholdOhioC5 is a splendid one to behold
Taking on this project is impressive. I'm very handy with a set of tools and would be afraid to try it. I hope it works out well for you. Keep us posted.

  #14
Old 07-09-2016, 10:30 PM
Registered User
Join Date: Nov 2013
Location: Batavia, IL
Age: 39
Posts: 448
Rep Power: 48
vogz has a reputation beyond reputevogz has a reputation beyond reputevogz has a reputation beyond reputevogz has a reputation beyond reputevogz has a reputation beyond reputevogz has a reputation beyond reputevogz has a reputation beyond reputevogz has a reputation beyond reputevogz has a reputation beyond reputevogz has a reputation beyond reputevogz has a reputation beyond repute
Originally Posted by brnrdtns View Post
The Porsche motor is pretty difficult to build because its oil gallery system is complex and has a ton of seals in it that you can not damage or they will leak and probably result in a spun bearing. There are a lot of ways to die. I would be nervous about the head sealing procedure if I were using 10mm studs, but with the 12's I am comfortable with it. I plan to have EBS Racing down in Reno set my cams for me and I should be good to go.
Sounds like a blast. Nissan's VQ was no cakewalk either.

I hope it works out for you. Might inspire me to do the same eventually.

  #15
Old 07-11-2016, 09:20 AM
brnrdtns's Avatar
Registered User
Thread Starter
Join Date: Jan 2012
Location: Boise, Idaho
Age: 35
Posts: 1,475
Rep Power: 132
brnrdtns has a reputation beyond reputebrnrdtns has a reputation beyond reputebrnrdtns has a reputation beyond reputebrnrdtns has a reputation beyond reputebrnrdtns has a reputation beyond reputebrnrdtns has a reputation beyond reputebrnrdtns has a reputation beyond reputebrnrdtns has a reputation beyond reputebrnrdtns has a reputation beyond reputebrnrdtns has a reputation beyond reputebrnrdtns has a reputation beyond repute
Found a nice video for assembling the bottom end. I'm going to buy it. http://pfixit.com/crankcase.html
