Area Under the Curve

Thread Tools

Search this Thread

Rate Thread

  #136
Old 07-25-2011, 12:31 PM
TTdude's Avatar
Registered User
Thread Starter
Join Date: Oct 2008
Location: Fastlane USA
Posts: 2,319
Rep Power: 244
TTdude Is a GOD !TTdude Is a GOD !TTdude Is a GOD !TTdude Is a GOD !TTdude Is a GOD !TTdude Is a GOD !TTdude Is a GOD !TTdude Is a GOD !TTdude Is a GOD !TTdude Is a GOD !TTdude Is a GOD !

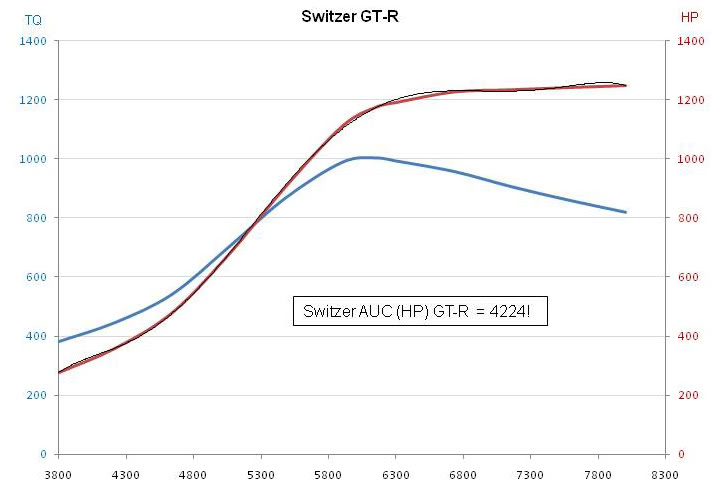

Neil sent me some dyno data for Scott's GT-R 1248 whp build. Absolutely massive HP AUC. Calculated range was 3800-8000 rpm. The simulated cure fit was excellent so the calc is good. Thanks Neil for sending the data.


Attached Thumbnails Click image for larger version Name: SwitzerGT-RAUC-1_zps9bbb1369.jpg Views: 310 Size: 33.8 KB ID: 302155
Last edited by TTdude; 11-17-2013 at 11:24 AM.
Reply
  #137
Old 07-25-2011, 01:11 PM
Divexxtreme's Avatar
Registered User
Join Date: Jun 2005
Location: Virginia, USA
Posts: 8,511
Rep Power: 787
Divexxtreme Is a GOD !Divexxtreme Is a GOD !Divexxtreme Is a GOD !Divexxtreme Is a GOD !Divexxtreme Is a GOD !Divexxtreme Is a GOD !Divexxtreme Is a GOD !Divexxtreme Is a GOD !Divexxtreme Is a GOD !Divexxtreme Is a GOD !Divexxtreme Is a GOD !
Great stuff, Dave. This is one of the most informative threads I've seen on here a while. Nice job.

Reply
  #138
Old 07-25-2011, 02:41 PM
The Bogg's Avatar
Registered User
Join Date: Sep 2009
Location: GTA, Ontario, Canada
Posts: 2,666
Rep Power: 234
The Bogg Is a GOD !The Bogg Is a GOD !The Bogg Is a GOD !The Bogg Is a GOD !The Bogg Is a GOD !The Bogg Is a GOD !The Bogg Is a GOD !The Bogg Is a GOD !The Bogg Is a GOD !The Bogg Is a GOD !The Bogg Is a GOD !
Originally Posted by TTdude
Neil sent me some dyno data for Scott's GT-R 1248 whp build. Absolutely massive HP AUC. Calculated range was 3800-8000 rpm. The simulated cure fit was excellent so the calc is good. Thanks Neil for sending the data.

whoo-hoo, hit 5k rpm and HANG ON

Reply
  #139
Old 07-25-2011, 03:10 PM
TTdude's Avatar
Registered User
Thread Starter
Join Date: Oct 2008
Location: Fastlane USA
Posts: 2,319
Rep Power: 244
TTdude Is a GOD !TTdude Is a GOD !TTdude Is a GOD !TTdude Is a GOD !TTdude Is a GOD !TTdude Is a GOD !TTdude Is a GOD !TTdude Is a GOD !TTdude Is a GOD !TTdude Is a GOD !TTdude Is a GOD !
For comparison, calc. HP AUCs from 3800-7200 rpm
Divexxtreme = 3074
TopGun = 2863
KPG = 2342

Reply
  #140
Old 07-28-2011, 07:51 AM
Tom@Champion's Avatar
Former Vendor
Join Date: Apr 2009
Location: Pompano Beach, FL
Age: 48
Posts: 4,326
Rep Power: 0
Tom@Champion Is a GOD !Tom@Champion Is a GOD !Tom@Champion Is a GOD !Tom@Champion Is a GOD !Tom@Champion Is a GOD !Tom@Champion Is a GOD !Tom@Champion Is a GOD !Tom@Champion Is a GOD !Tom@Champion Is a GOD !Tom@Champion Is a GOD !Tom@Champion Is a GOD !
TTdude....need your email addy again, got another log for you of our 68's.

Reply
  #141
Old 07-29-2011, 02:49 PM
TTdude's Avatar
Registered User
Thread Starter
Join Date: Oct 2008
Location: Fastlane USA
Posts: 2,319
Rep Power: 244
TTdude Is a GOD !TTdude Is a GOD !TTdude Is a GOD !TTdude Is a GOD !TTdude Is a GOD !TTdude Is a GOD !TTdude Is a GOD !TTdude Is a GOD !TTdude Is a GOD !TTdude Is a GOD !TTdude Is a GOD !

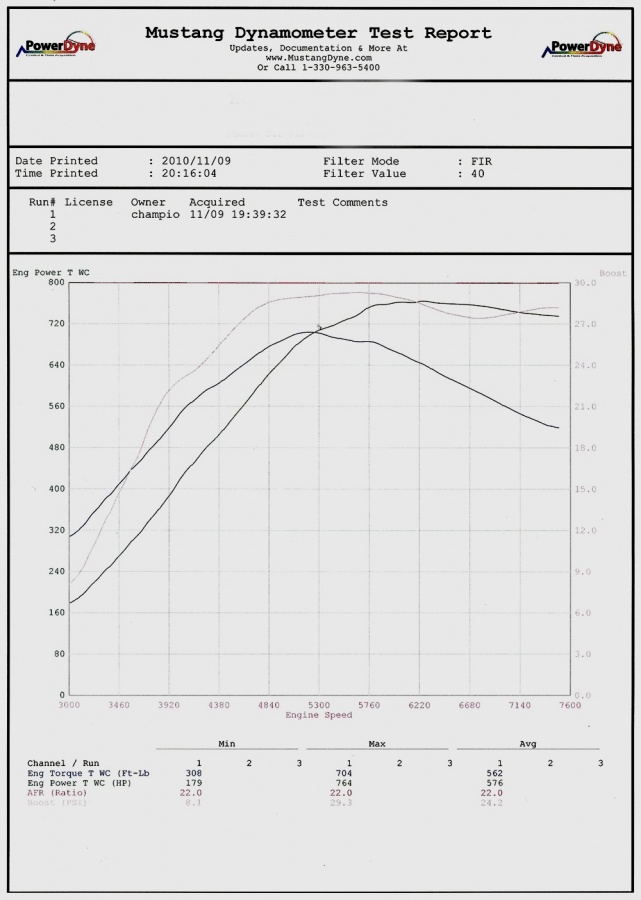

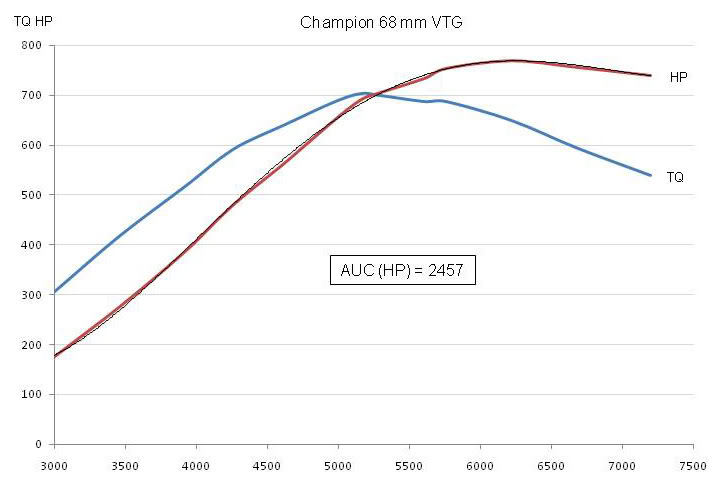

Champion HP AUC for 68 mm vtg based on Mustang Dyno from 3000-7200 rpm. Impressive numbers Tom!


Attached Thumbnails Click image for larger version Name: ChampionMustangAUC_zpsdddb16b4.jpg Views: 294 Size: 32.5 KB ID: 302160
Attached Images
Last edited by TTdude; 11-17-2013 at 11:28 AM.
Reply
  #142
Old 07-31-2011, 03:54 PM
TTdude's Avatar
Registered User
Thread Starter
Join Date: Oct 2008
Location: Fastlane USA
Posts: 2,319
Rep Power: 244
TTdude Is a GOD !TTdude Is a GOD !TTdude Is a GOD !TTdude Is a GOD !TTdude Is a GOD !TTdude Is a GOD !TTdude Is a GOD !TTdude Is a GOD !TTdude Is a GOD !TTdude Is a GOD !TTdude Is a GOD !

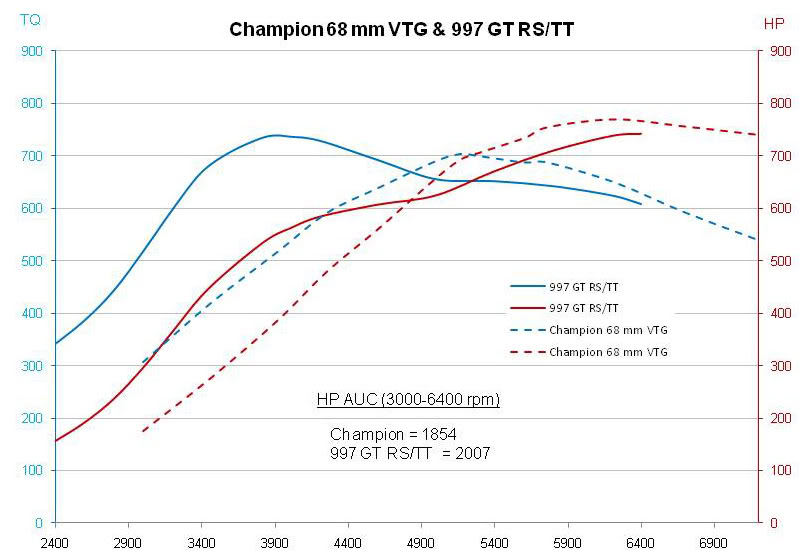

997 GT3 RS/TT vs Champion based on dynos....


Attached Thumbnails Click image for larger version Name: ChampionvsKarol_zps77382e4b.jpg Views: 328 Size: 62.9 KB ID: 302161
Attached Images
Last edited by TTdude; 11-17-2013 at 11:30 AM.
Reply
  #143
Old 08-02-2011, 04:21 PM
trompazo's Avatar
Registered User
Join Date: Dec 2008
Location: Calgary, Canada
Posts: 42
Rep Power: 17
trompazo is on a distinguished road

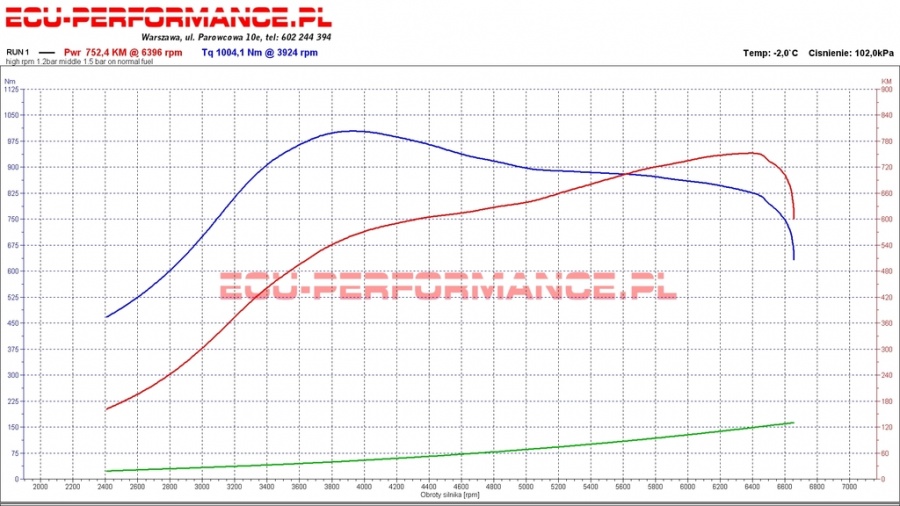

I'd like to see how the Champion 65mm compare to the smaller 63.5s like TTdude's graph from page one and the 68mm's.

This is the only dyno of the 65mm I could find (from a Gt2 not a TT).

Attached Images
Reply
  #144
Old 08-02-2011, 04:31 PM
trompazo's Avatar
Registered User
Join Date: Dec 2008
Location: Calgary, Canada
Posts: 42
Rep Power: 17
trompazo is on a distinguished road
Originally Posted by TTdude
Milou's third gear pull with Tip. He's running mafless so I used Load values. Looks like your extrude hotsides paid off! Nice low end gains with some gains up top as well. Thanks for sharing bro. Your car must feel really sweet.


These extrude honed 63.5mm turbos spool faster than anything else in this thread including the graphs for stock turbos/stopck turbos with Protomotive tune.

But given that the data was done with a 3rd gear pull and not a 4th gear pull, I wonder if that accounts for the much better spool up, and maybe they are not directly comparable?

They are making 100 load by 2000rpms (vs 80 on stock turbos) and 130 by 2500rpms (vs. 110 stock).

Reply
  #145
Old 08-02-2011, 04:44 PM
TTdude's Avatar
Registered User
Thread Starter
Join Date: Oct 2008
Location: Fastlane USA
Posts: 2,319
Rep Power: 244
TTdude Is a GOD !TTdude Is a GOD !TTdude Is a GOD !TTdude Is a GOD !TTdude Is a GOD !TTdude Is a GOD !TTdude Is a GOD !TTdude Is a GOD !TTdude Is a GOD !TTdude Is a GOD !TTdude Is a GOD !
Originally Posted by trompazo
I'd like to see how the Champion 65mm compare to the smaller 63.5s like TTdude's graph from page one and the 68mm's.

This is the only dyno of the 65mm I could find (from a Gt2 not a TT).
If Tom has any 65 mm vtg datalogs he could send me, I'd be happy to plot them. I don't have a dyno of my turbos.

I agree that it is best to compare apples to apples whenever possible.

Reply
  #146
Old 08-03-2011, 07:17 AM
Tom@Champion's Avatar
Former Vendor
Join Date: Apr 2009
Location: Pompano Beach, FL
Age: 48
Posts: 4,326
Rep Power: 0
Tom@Champion Is a GOD !Tom@Champion Is a GOD !Tom@Champion Is a GOD !Tom@Champion Is a GOD !Tom@Champion Is a GOD !Tom@Champion Is a GOD !Tom@Champion Is a GOD !Tom@Champion Is a GOD !Tom@Champion Is a GOD !Tom@Champion Is a GOD !Tom@Champion Is a GOD !
Originally Posted by trompazo
I'd like to see how the Champion 65mm compare to the smaller 63.5s like TTdude's graph from page one and the 68mm's.

This is the only dyno of the 65mm I could find (from a Gt2 not a TT).
Originally Posted by TTdude
If Tom has any 65 mm vtg datalogs he could send me, I'd be happy to plot them. I don't have a dyno of my turbos.

I agree that it is best to compare apples to apples whenever possible.
Actually, I think we just dyno'ed one a few days ago...I'll see if I can grab the log. Or at the very least I'm sure there's a log somewhere in there from a 65mm setup I can send over.

Reply
  #147
Old 08-07-2011, 01:53 PM
TTdude's Avatar
Registered User
Thread Starter
Join Date: Oct 2008
Location: Fastlane USA
Posts: 2,319
Rep Power: 244
TTdude Is a GOD !TTdude Is a GOD !TTdude Is a GOD !TTdude Is a GOD !TTdude Is a GOD !TTdude Is a GOD !TTdude Is a GOD !TTdude Is a GOD !TTdude Is a GOD !TTdude Is a GOD !TTdude Is a GOD !

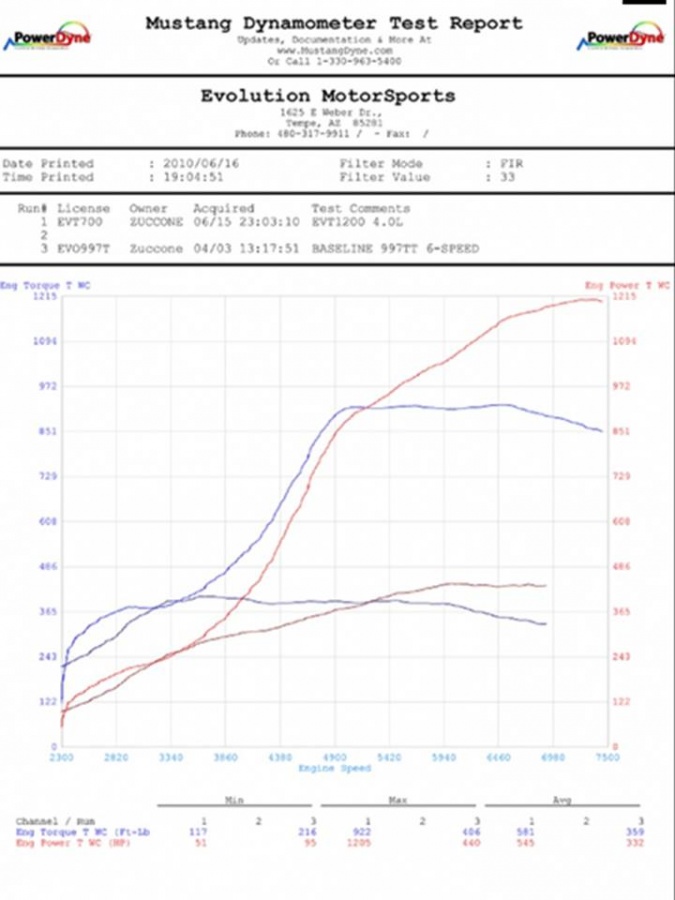

Couple of Mutant Monsters....

Edit--will repost graph revised calcs.

Attached Images
Last edited by TTdude; 08-07-2011 at 03:13 PM.
Reply
  #148
Old 08-07-2011, 02:21 PM
Divexxtreme's Avatar
Registered User
Join Date: Jun 2005
Location: Virginia, USA
Posts: 8,511
Rep Power: 787
Divexxtreme Is a GOD !Divexxtreme Is a GOD !Divexxtreme Is a GOD !Divexxtreme Is a GOD !Divexxtreme Is a GOD !Divexxtreme Is a GOD !Divexxtreme Is a GOD !Divexxtreme Is a GOD !Divexxtreme Is a GOD !Divexxtreme Is a GOD !Divexxtreme Is a GOD !
Originally Posted by TTdude
Couple of Mutant Monsters....

Very nice, Dave. Now please give me back my extra 500 rpm (actually 800 rpm, since my redline is 8300) so I can see how they really compare.

Last edited by Divexxtreme; 08-07-2011 at 02:27 PM.
Reply
  #149
Old 08-07-2011, 02:43 PM
TTdude's Avatar
Registered User
Thread Starter
Join Date: Oct 2008
Location: Fastlane USA
Posts: 2,319
Rep Power: 244
TTdude Is a GOD !TTdude Is a GOD !TTdude Is a GOD !TTdude Is a GOD !TTdude Is a GOD !TTdude Is a GOD !TTdude Is a GOD !TTdude Is a GOD !TTdude Is a GOD !TTdude Is a GOD !TTdude Is a GOD !
Originally Posted by Divexxtreme
Very nice, Dave. Now please give me back my extra 500 rpm (actually 800 rpm, since my redline is 8300) so I can see how they really compare.
Unfortunately, EVT1200 data stops just before 7500 (~7465). I can extrapolate the curve to 8000 based on the slope and see what it looks like (it will be a little later today).

Last edited by TTdude; 08-07-2011 at 02:49 PM.
Reply
  #150
Old 08-07-2011, 03:33 PM
Divexxtreme's Avatar
Registered User
Join Date: Jun 2005
Location: Virginia, USA
Posts: 8,511
Rep Power: 787
Divexxtreme Is a GOD !Divexxtreme Is a GOD !Divexxtreme Is a GOD !Divexxtreme Is a GOD !Divexxtreme Is a GOD !Divexxtreme Is a GOD !Divexxtreme Is a GOD !Divexxtreme Is a GOD !Divexxtreme Is a GOD !Divexxtreme Is a GOD !Divexxtreme Is a GOD !
Originally Posted by TTdude
Unfortunately, EVT1200 data stops just before 7500 (~7465). I can extrapolate the curve to 8000 based on the slope and see what it looks like (it will be a little later today).
What I meant was to compare our actual, real-world AUCs. The ones the cars will actually use when they're driven. If EVT's redline is 7465, that would be that car's actual AUC. My redline is 8300, so that would be my actual AUC.

No worries either way, bro. This is great info and I appreciate all the effort you put into it providing it.

Last edited by Divexxtreme; 08-07-2011 at 03:39 PM.
