HOw does my coolant level look?

Thread Tools

Rate Thread

Old May 25, 2014 | 07:36 PM
  #1
no1joey's Avatar
Thread Starter
|
Registered User
Joined: Mar 2014
Posts: 409
From: Sydney
Rep Power: 34
no1joey is a name known to allno1joey is a name known to allno1joey is a name known to allno1joey is a name known to allno1joey is a name known to allno1joey is a name known to all

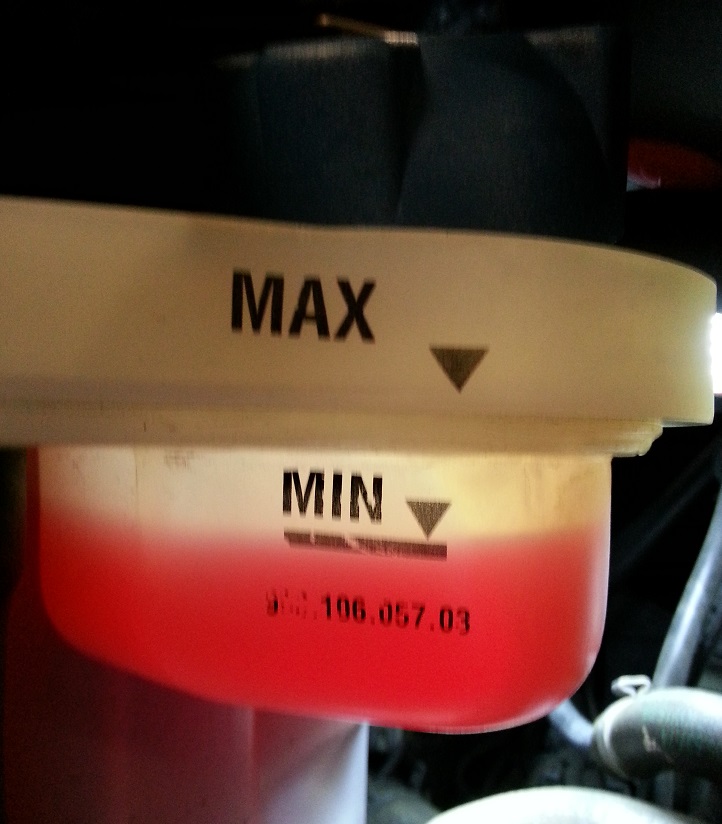

HOw does my coolant level look?

This is normal right when engine hot?



Attached Thumbnails Click image for larger version

Name:	20140525_204956_zps4a6ddeda.jpg
Views:	2400
Size:	156.5 KB
ID:	378659
Old May 25, 2014 | 07:52 PM
  #2
jhbrennan's Avatar
Registered User
Joined: Apr 2006
Posts: 5,260
From: Austin
Rep Power: 770
jhbrennan Is a GOD !jhbrennan Is a GOD !jhbrennan Is a GOD !jhbrennan Is a GOD !jhbrennan Is a GOD !jhbrennan Is a GOD !jhbrennan Is a GOD !jhbrennan Is a GOD !jhbrennan Is a GOD !jhbrennan Is a GOD !jhbrennan Is a GOD !
In your owner's manual -
When the engine is cold and the car is level the fluid level must lie between the “MIN” and “MAX” markings.

Old May 25, 2014 | 07:52 PM
  #3
no1joey's Avatar
Thread Starter
|
Registered User
Joined: Mar 2014
Posts: 409
From: Sydney
Rep Power: 34
no1joey is a name known to allno1joey is a name known to allno1joey is a name known to allno1joey is a name known to allno1joey is a name known to allno1joey is a name known to all
Originally Posted by jhbrennan
In your owner's manual -
When the engine is cold and the car is level the fluid level must lie between the “MIN” and “MAX” markings.

Thanks, but the question was relating to a hot engine.

Old May 25, 2014 | 08:02 PM
  #4
jhbrennan's Avatar
Registered User
Joined: Apr 2006
Posts: 5,260
From: Austin
Rep Power: 770
jhbrennan Is a GOD !jhbrennan Is a GOD !jhbrennan Is a GOD !jhbrennan Is a GOD !jhbrennan Is a GOD !jhbrennan Is a GOD !jhbrennan Is a GOD !jhbrennan Is a GOD !jhbrennan Is a GOD !jhbrennan Is a GOD !jhbrennan Is a GOD !
Since coolant expands when hot, I'd say if you take a measurement while cold you would find the level would be well below Min.

Old May 25, 2014 | 08:10 PM
  #5
no1joey's Avatar
Thread Starter
|
Registered User
Joined: Mar 2014
Posts: 409
From: Sydney
Rep Power: 34
no1joey is a name known to allno1joey is a name known to allno1joey is a name known to allno1joey is a name known to allno1joey is a name known to allno1joey is a name known to all
Originally Posted by jhbrennan
Since coolant expands when hot, I'd say if you take a measurement while cold you would find the level would be well below Min.
Well I've asked my local garage who did a coolant flush a few weeks ago about it (left a msg)... the car isn't overheating though I hope it has enough coolant. I thought maybe the level drops when the engines hot, as it has to circulate around more?...will advise what my garage tells me.

Old May 25, 2014 | 08:11 PM
  #6
cab83_750's Avatar
Registered User
Joined: Aug 2011
Posts: 1,473
From: CA
Rep Power: 86
cab83_750 has much to be proud ofcab83_750 has much to be proud ofcab83_750 has much to be proud ofcab83_750 has much to be proud ofcab83_750 has much to be proud ofcab83_750 has much to be proud ofcab83_750 has much to be proud ofcab83_750 has much to be proud ofcab83_750 has much to be proud ofcab83_750 has much to be proud of
At that level (cold), just add distilled water. Of course, if you have the $ to spend, add the 'special' Porsche coolant blend.

Old May 25, 2014 | 08:59 PM
  #7
no1joey's Avatar
Thread Starter
|
Registered User
Joined: Mar 2014
Posts: 409
From: Sydney
Rep Power: 34
no1joey is a name known to allno1joey is a name known to allno1joey is a name known to allno1joey is a name known to allno1joey is a name known to allno1joey is a name known to all
Yep it was 250ml too low, topped up with demineralized water, will add the same amount of coolant tomorrow when I pick up a bottle from my local dealership.

Strange, I can only put it down to the garage not putting in enough, as I have no leaks, they would of shown up in my car spot.

Old May 25, 2014 | 09:52 PM
  #8
Anderson's Avatar
Registered User
Joined: Mar 2012
Posts: 47
From: Calgary
Rep Power: 16
Anderson is infamous around these parts
Best thing is to check when engine is cold, but in your case add some just to make sure.

Old May 25, 2014 | 11:48 PM
  #9
spyerx's Avatar
Registered User
Joined: Oct 2011
Posts: 369
From: SoCal
Rep Power: 31
spyerx is a jewel in the roughspyerx is a jewel in the roughspyerx is a jewel in the rough
These systems due to capacity and length are hard to get all air out. After a few drive cycles you may need to top up a bit. Just use distiller water like you did.

Old May 26, 2014 | 06:15 AM
  #10
jhbrennan's Avatar
Registered User
Joined: Apr 2006
Posts: 5,260
From: Austin
Rep Power: 770
jhbrennan Is a GOD !jhbrennan Is a GOD !jhbrennan Is a GOD !jhbrennan Is a GOD !jhbrennan Is a GOD !jhbrennan Is a GOD !jhbrennan Is a GOD !jhbrennan Is a GOD !jhbrennan Is a GOD !jhbrennan Is a GOD !jhbrennan Is a GOD !
Originally Posted by no1joey
Yep it was 250ml too low, topped up with demineralized water, will add the same amount of coolant tomorrow when I pick up a bottle from my local dealership.

Strange, I can only put it down to the garage not putting in enough, as I have no leaks, they would of shown up in my car spot.
Just keep a watch on the level. Sometimes if a leak is in the plumbing from front to rear you won't see any evidence on the garage floor since the under car panels would catch it. Also, the capacity is 32 liters so I wouldn't be overly concerned being 250ml low. Let us know what your cold measurement shows.

Old May 26, 2014 | 08:32 AM
  #11
cerbomark's Avatar
Registered User
Joined: Feb 2012
Posts: 2,541
From: upstate, NY
Rep Power: 238
cerbomark Is a GOD !cerbomark Is a GOD !cerbomark Is a GOD !cerbomark Is a GOD !cerbomark Is a GOD !cerbomark Is a GOD !cerbomark Is a GOD !cerbomark Is a GOD !cerbomark Is a GOD !cerbomark Is a GOD !cerbomark Is a GOD !
also, the level on these things is especially effected by checking it while parked on even the slightest un level ground.
That s not low enough to be worried about anything. Just top it off with the water and don t even bother with buying the expensive stuff (which you should never need to use anyway)....

Old May 27, 2014 | 12:19 PM
  #12
ksdprasad's Avatar
Registered User
Joined: Sep 2011
Posts: 294
From: New jersey
Rep Power: 26
ksdprasad is infamous around these parts
how about poland srping water. just curious.
