15mm front spacers for Vantage?

  #1
Old 02-10-2017, 06:06 AM
Registered User
Thread Starter
Join Date: Jan 2017
Location: london
Age: 32
Posts: 37
Rep Power: 0
rickg is an unknown quantity at this point
15mm front spacers for Vantage?

Hi guys,

Im going to be putting the H&R 23mm spacers on the rear of my 2006 vantage (running standard wheels) Is it possible to run 15mm spacers for the front wheels(the same type as the H&R with the studs built into the spacer)?

I know the RSC spacer kit would have been the best option, but I am able to get hold of 15mm spacers locally so wondered if they would have been ok to use?I do not track the car, it is only a weekend toy.

  #2
Old 02-10-2017, 09:00 AM
Zettinger's Avatar
Registered User
Join Date: Feb 2013
Location: Fl
Posts: 539
Rep Power: 30
Zettinger is just really niceZettinger is just really niceZettinger is just really niceZettinger is just really nice
I have the H&R 11mm on my front axle and 23mm rear.
The benefit of the H&R spacers is that you keep the original studs on your car.

11mm H&R have special nuts with longer shafts.
23mm H&R have studs on the spacer where you mount your wheel.


Last edited by Zettinger; 02-10-2017 at 09:40 AM. Reason: ups you are right.. it has to be 11mm
  #3
Old 02-10-2017, 09:39 AM
Registered User
Thread Starter
Join Date: Jan 2017
Location: london
Age: 32
Posts: 37
Rep Power: 0
rickg is an unknown quantity at this point
I am sure the H&R front spacers you have will be the 11mm which will use the special nuts. I have these also but wanted to know if 15mm will work:

http://www.ebay.co.uk/itm/SCC-Wheel-...IAAOSw44BYfXNp

  #4
Old 02-10-2017, 09:41 AM
Zettinger's Avatar
Registered User
Join Date: Feb 2013
Location: Fl
Posts: 539
Rep Power: 30
Zettinger is just really niceZettinger is just really niceZettinger is just really niceZettinger is just really nice
Originally Posted by rickg View Post
I am sure the H&R front spacers you have will be the 11mm which will use the special nuts. I have these also but wanted to know if 15mm will work:

http://www.ebay.co.uk/itm/SCC-Wheel-...IAAOSw44BYfXNp
You are absolutely right..

Damn! I mixed up the BMW spacers I ordered last month with the Aston spacer size.

  #5
Old 02-10-2017, 09:47 AM
Registered User
Thread Starter
Join Date: Jan 2017
Location: london
Age: 32
Posts: 37
Rep Power: 0
rickg is an unknown quantity at this point
Haha I just ended up looking on H&R's website to see if they did come in 15mm lol

i just feel that 11mm spacers dont really bring the front wheels out as much as the 23mm on the rear which to me looks quite odd. I will be lowering the car also which will make it even more apparent

  #6
Old 02-10-2017, 09:50 AM
Zettinger's Avatar
Registered User
Join Date: Feb 2013
Location: Fl
Posts: 539
Rep Power: 30
Zettinger is just really niceZettinger is just really niceZettinger is just really niceZettinger is just really nice
Just checked my older posts.

Front: H&R TRAK Spacers (2265681CR)
11mm for the front come with own nuts to replace the originals.

Bolt Pattern: 5/114.3
Bolt/Stud: Stud
Center Bore: 68.1
Thread Type: 14x2.0
Width: 11mm

Rear: H&R TRAK+ Wheel Spacer DRM Style 4665681
23mm for the rear have studs on the spacer (DRM) to use OEM nuts.

Bolt Pattern: 5/114.3
Bolt/Stud: Stud
Center Bore: 68.1
Thread Type: 14x2.0
Width: 23mm

  #7
Old 02-10-2017, 09:53 AM
Zettinger's Avatar
Registered User
Join Date: Feb 2013
Location: Fl
Posts: 539
Rep Power: 30
Zettinger is just really niceZettinger is just really niceZettinger is just really niceZettinger is just really nice
Originally Posted by rickg View Post
Haha I just ended up looking on H&R's website to see if they did come in 15mm lol

i just feel that 11mm spacers dont really bring the front wheels out as much as the 23mm on the rear which to me looks quite odd. I will be lowering the car also which will make it even more apparent
Mine will be lowered soon.

I think you can see here the fitment

  #8
Old 02-10-2017, 10:10 AM
Registered User
Thread Starter
Join Date: Jan 2017
Location: london
Age: 32
Posts: 37
Rep Power: 0
rickg is an unknown quantity at this point
Looks great in the pic!! i think i will try the 11mm first and see how they look

what suspension are you going for? i am going for H&R springs, they should be fitted by next week

  #9
Old 02-10-2017, 10:35 AM
Registered User
Join Date: Oct 2015
Location: USA
Posts: 349
Rep Power: 24
Jeff_335i is a splendid one to beholdJeff_335i is a splendid one to beholdJeff_335i is a splendid one to beholdJeff_335i is a splendid one to beholdJeff_335i is a splendid one to beholdJeff_335i is a splendid one to beholdJeff_335i is a splendid one to behold

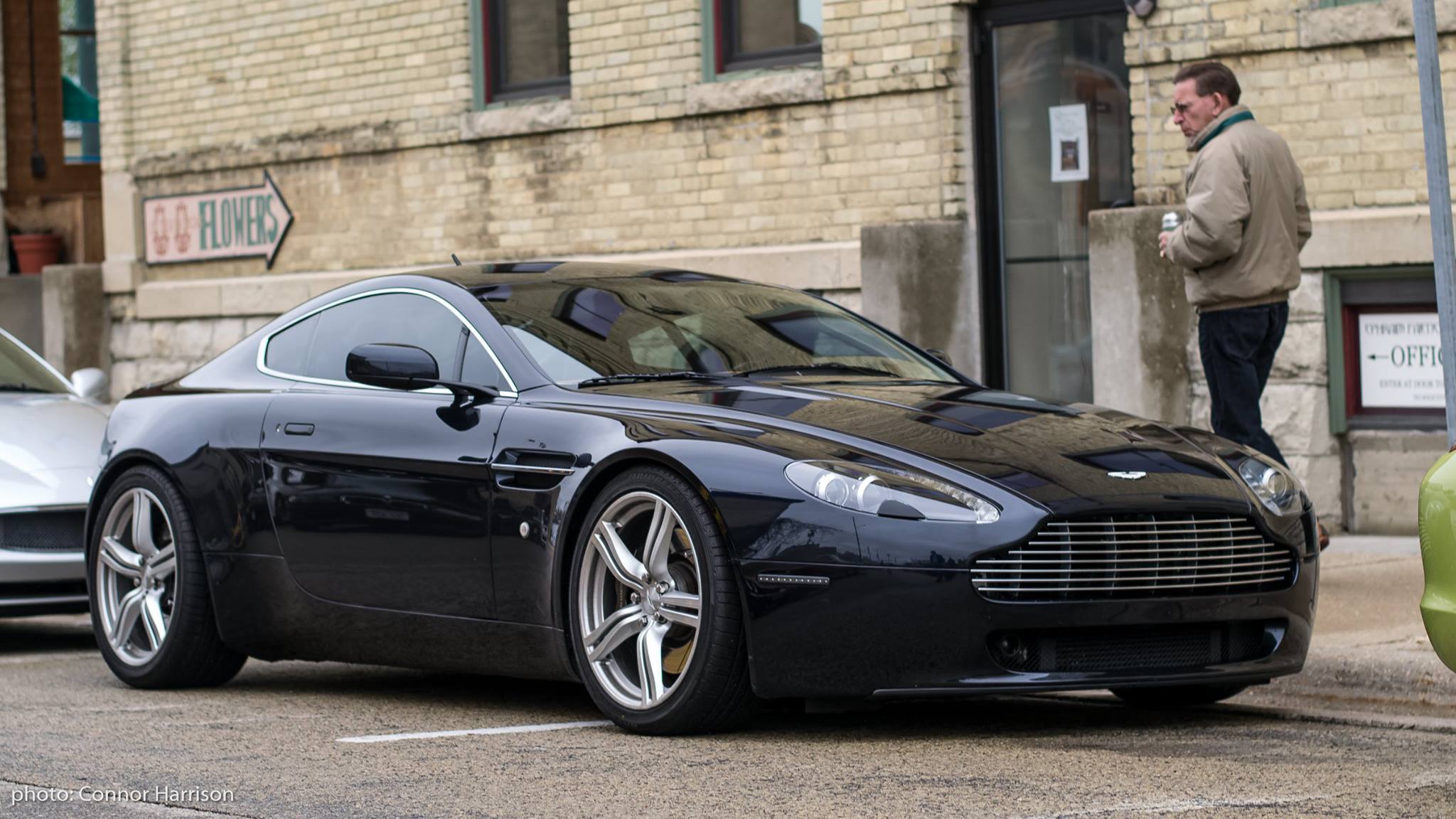

I have the RSC spacers and H&R springs.

Attached Thumbnails Click image for larger version

Name:	13147759_1131754536846622_1783795803978721787_o.jpg
Views:	35
Size:	254.4 KB
ID:	469440
  #10
Old 02-10-2017, 10:51 AM
RCAMV8's Avatar
Registered User
Join Date: Mar 2010
Location: Memphis, TN
Posts: 81
Rep Power: 12
RCAMV8 is on a distinguished road
Jeff, that looks really nice. Which size RSC spacers are you using to be clear?

  #11
Old 02-10-2017, 11:00 AM
Registered User
Join Date: Oct 2015
Location: USA
Posts: 349
Rep Power: 24
Jeff_335i is a splendid one to beholdJeff_335i is a splendid one to beholdJeff_335i is a splendid one to beholdJeff_335i is a splendid one to beholdJeff_335i is a splendid one to beholdJeff_335i is a splendid one to beholdJeff_335i is a splendid one to behold

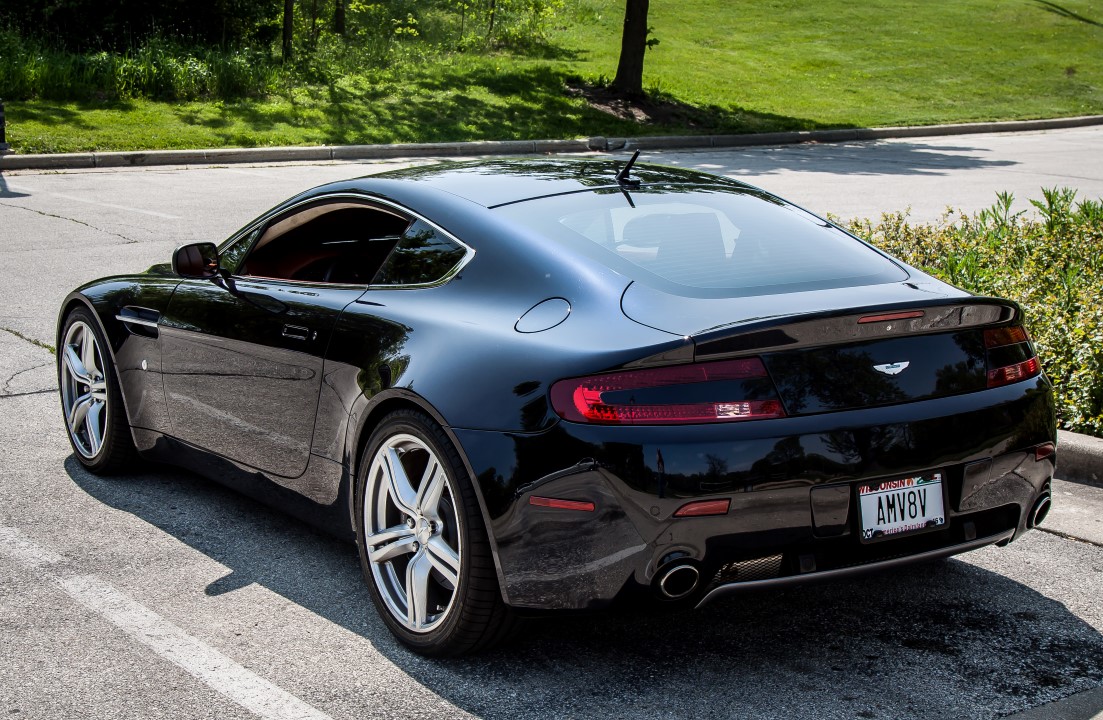

15mm front and 20mm rear. My car's previous owner had them installed with new studs. With the H&R springs (also installed by the previous owner) the tires fill the fender openings perfectly. Here's a photo from the rear -

Attached Thumbnails Click image for larger version

Name:	badgerbimmers-2728 (Custom).jpg
Views:	20
Size:	329.2 KB
ID:	469442
  #12
Old 02-10-2017, 11:02 AM
Zettinger's Avatar
Registered User
Join Date: Feb 2013
Location: Fl
Posts: 539
Rep Power: 30
Zettinger is just really niceZettinger is just really niceZettinger is just really niceZettinger is just really nice
Originally Posted by rickg View Post
Looks great in the pic!! i think i will try the 11mm first and see how they look

what suspension are you going for? i am going for H&R springs, they should be fitted by next week
I have the Sport Pack Bilstein shocks. I learned, from the forum, that H&R springs will mess up my ride quality terrible in this combination.

I ordered VAP springs.


Last edited by Zettinger; 02-10-2017 at 11:05 AM.
  #13
Old 02-10-2017, 11:05 AM
Zettinger's Avatar
Registered User
Join Date: Feb 2013
Location: Fl
Posts: 539
Rep Power: 30
Zettinger is just really niceZettinger is just really niceZettinger is just really niceZettinger is just really nice
Originally Posted by Jeff_335i View Post
I have the RSC spacers and H&R springs.
Very nice!!!

  #14
Old 02-10-2017, 11:10 AM
RCAMV8's Avatar
Registered User
Join Date: Mar 2010
Location: Memphis, TN
Posts: 81
Rep Power: 12
RCAMV8 is on a distinguished road
You're right, that is perfect!!!

  #15
Old 02-10-2017, 11:10 AM
Registered User
Join Date: Oct 2015
Location: USA
Posts: 349
Rep Power: 24
Jeff_335i is a splendid one to beholdJeff_335i is a splendid one to beholdJeff_335i is a splendid one to beholdJeff_335i is a splendid one to beholdJeff_335i is a splendid one to beholdJeff_335i is a splendid one to beholdJeff_335i is a splendid one to behold
Just to clarify Zettinger's remarks about H&R springs and ride quality. He has Sport Package shocks on his car, and the H&R springs don't match well with those.

But since your 2006 doesn't have the sport package since it wasn't even offered then the H&R springs will work fine with your shocks. My car looks like it has the sport package because the wheels are sport pack wheels but those were added on at a later date.

You might also want to consider the VAP springs, the consensus seems to be that they don't lower the car quite as much as the H&Rs. Depends what you are going for and willing to put up with. My car has only 3.5 inches of ground clearance behind the front wheels.
