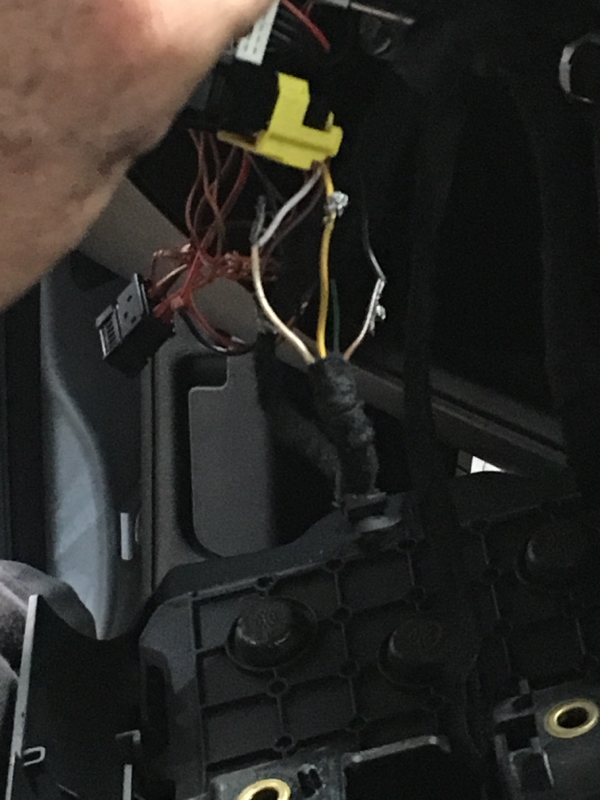

Well i have done it. I bought a MF steering wheel from a crashed 2015 cayenne with the Clockspring and lever unit. Here is the situation, as said before you'll need a new steering wheel, new Clockspring for that MF steering and new lever unit. Your old levers even though that they're the same it just won't work because of different pin connectors location. The main issue is not this, it's on the wiring distribution. The new connector has 16 pins the old 2011-2014 has 12 pins. Cables are the same but the distribution varies. You will need the plastic connector for the 2015 Clockspring which is bigger and the steering turn sensor plug (yellow) if I'm not mistaken with the name.

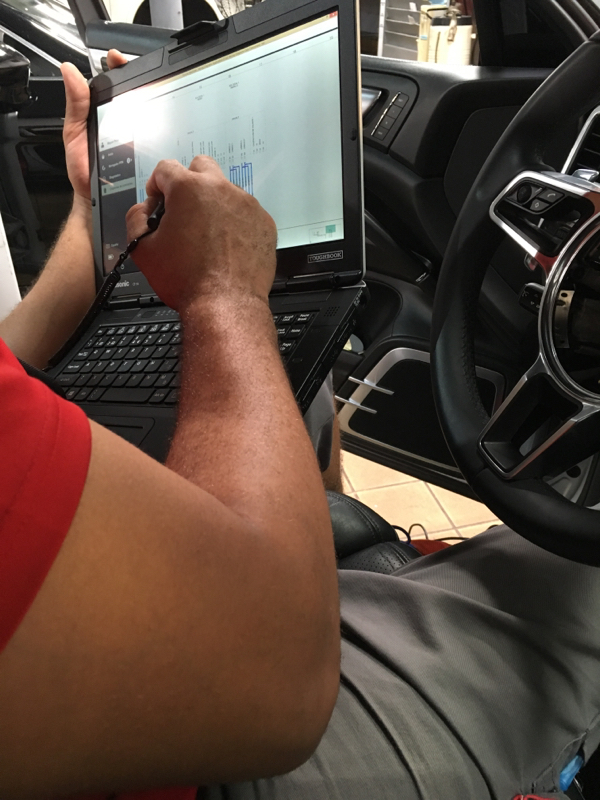

Don't forget you'll need a PIWIS 3 to reprogram, that's the one used on mine, don't know if the PIWIS 2 will do it. Will post pictures later when done, we're testing some other stuff.
Don't forget you'll need a PIWIS 3 to reprogram, that's the one used on mine, don't know if the PIWIS 2 will do it. Will post pictures later when done, we're testing some other stuff.
Registered User
Joined: Aug 2012
Posts: 193
From: DR
Rep Power: 21
It's cool and fast as heaven... It even connects to the car via Bluetooth through a dongle. Overall work load I think it's reduced a 30% with this new unit because of how fast it responds and communicates.
Registered User
Joined: Aug 2012
Posts: 193
From: DR
Rep Power: 21
well we're dealing with an error with the steering angle sensor not calibrating
Registered User
Joined: Aug 2012
Posts: 193
From: DR
Rep Power: 21
yes I know.. When I got here was too late
Registered User
Joined: Apr 2016
Posts: 39
From: London
Rep Power: 12
Wouldn't it be easier to change the wires in the steering wheel plug? Have Porsche just not changed the sequence. All the controls are identical.
I have a 2015 wheel in my 2012 and only the paddles work, debating what to do next. I have 2015 switch unit to fit but not the clock Spring, sounds like that won't work
I have a 2015 wheel in my 2012 and only the paddles work, debating what to do next. I have 2015 switch unit to fit but not the clock Spring, sounds like that won't work
Registered User
Joined: Aug 2012
Posts: 193
From: DR
Rep Power: 21
Wouldn't it be easier to change the wires in the steering wheel plug? Have Porsche just not changed the sequence. All the controls are identical. I have a 2015 wheel in my 2012 and only the paddles work, debating what to do next. I have 2015 switch unit to fit but not the clock Spring, sounds like that won't work
