Ongoing change over valve issues on 991?
#1
02-10-2014, 04:54 PM
Ongoing change over valve issues on 991?
I do not mean to light a fire for nothing, but I got increasingly concerned by what seems to be a lingering issue with change over valves in the 991.

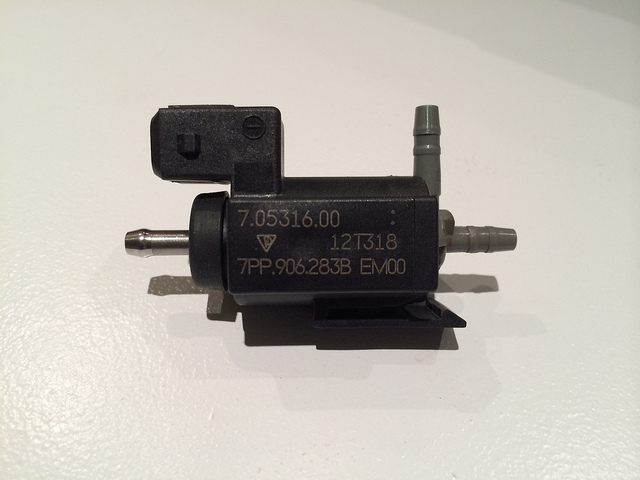

Here's a picture of the part in question (the part number is 7PP906283B, now replaced by 7PP906283C):
Based on a quick research on the internet, it looks like Porsche was aware of the issue for early 2012 builds and that launched a recall campaign (WC-43) intended at replacing 8 of these valves.
In my case, my sport exhaust stopped functioning and 3 out of the 4 change over valves I have checked were bad (I did not check the others).
There are also various threads about 991's built at different times that have had heating/cooling system issued. Again, the same part was the culprit.
I find it intriguing that it has been going on for so long and that Porsche has apparently not resolved the issue.
The first concern I have is that you may not always detect that something is wrong: it is only when my sport exhaust stopped working properly that I discovered it, but the valves controlling the symposer and the intake flap were already bad. The second concern is that I read that this part would be used in more critical components (PDK).
Change over valves (simple solenoids in fact) are a very common part and Pierburg, the manufacturer, supplies it to a lot of car makers, including for the previous 911 models. This part number is specific to the 991 and seems to be the one having an issue. They may not be sealing properly allowing moisture in, causing the valves to malfunction over time.
I am not posting this to alarm you but to keep this in mind and report if you had other issues resulting from the failure of that same part.
Having already had 3 bad solenoids, I intend to drop the car at the dealership to get it checked.
Here's a picture of the part in question (the part number is 7PP906283B, now replaced by 7PP906283C):
Based on a quick research on the internet, it looks like Porsche was aware of the issue for early 2012 builds and that launched a recall campaign (WC-43) intended at replacing 8 of these valves.
In my case, my sport exhaust stopped functioning and 3 out of the 4 change over valves I have checked were bad (I did not check the others).
There are also various threads about 991's built at different times that have had heating/cooling system issued. Again, the same part was the culprit.
I find it intriguing that it has been going on for so long and that Porsche has apparently not resolved the issue.
The first concern I have is that you may not always detect that something is wrong: it is only when my sport exhaust stopped working properly that I discovered it, but the valves controlling the symposer and the intake flap were already bad. The second concern is that I read that this part would be used in more critical components (PDK).
Change over valves (simple solenoids in fact) are a very common part and Pierburg, the manufacturer, supplies it to a lot of car makers, including for the previous 911 models. This part number is specific to the 991 and seems to be the one having an issue. They may not be sealing properly allowing moisture in, causing the valves to malfunction over time.
I am not posting this to alarm you but to keep this in mind and report if you had other issues resulting from the failure of that same part.
Having already had 3 bad solenoids, I intend to drop the car at the dealership to get it checked.
#2
02-10-2014, 05:08 PM
Registered User
Join Date: Jul 2012
Location: Just visiting the planet
Posts: 1,055
Rep Power: 85
Thanks for the feedback.
Any other symptoms that a layman can look out for?
Apparently it doesn't throw an error code, which in Porsche World means everything is just fine..
Any other symptoms that a layman can look out for?
Apparently it doesn't throw an error code, which in Porsche World means everything is just fine..
#3
02-10-2014, 05:18 PM
Nope. Not 'mission critical' hence not monitored part. This is a very common part with a low rate of failure from what I have been told. The 991 issue is an anomaly...
#4
02-10-2014, 05:26 PM
I do not mean to light a fire for nothing, but I got increasingly concerned by what seems to be a lingering issue with change over valves in the 991.
Here's a picture of the part in question (the part number is 7PP906283B, now replaced by 7PP906283C):
Based on a quick research on the internet, it looks like Porsche was aware of the issue for early 2012 builds and that launched a recall campaign (WC-43) intended at replacing 8 of these valves.
In my case, my sport exhaust stopped functioning and 3 out of the 4 change over valves I have checked were bad (I did not check the others).
There are also various threads about 991's built at different times that have had heating/cooling system issued. Again, the same part was the culprit.
I find it intriguing that it has been going on for so long and that Porsche has apparently not resolved the issue.
The first concern I have is that you may not always detect that something is wrong: it is only when my sport exhaust stopped working properly that I discovered it, but the valves controlling the symposer and the intake flap were already bad. The second concern is that I read that this part would be used in more critical components (PDK).
Change over valves (simple solenoids in fact) are a very common part and Pierburg, the manufacturer, supplies it to a lot of car makers, including for the previous 911 models. This part number is specific to the 991 and seems to be the one having an issue. They may not be sealing properly allowing moisture in, causing the valves to malfunction over time.
I am not posting this to alarm you but to keep this in mind and report if you had other issues resulting from the failure of that same part.
Having already had 3 bad solenoids, I intend to drop the car at the dealership to get it checked.
Here's a picture of the part in question (the part number is 7PP906283B, now replaced by 7PP906283C):
Based on a quick research on the internet, it looks like Porsche was aware of the issue for early 2012 builds and that launched a recall campaign (WC-43) intended at replacing 8 of these valves.
In my case, my sport exhaust stopped functioning and 3 out of the 4 change over valves I have checked were bad (I did not check the others).
There are also various threads about 991's built at different times that have had heating/cooling system issued. Again, the same part was the culprit.
I find it intriguing that it has been going on for so long and that Porsche has apparently not resolved the issue.
The first concern I have is that you may not always detect that something is wrong: it is only when my sport exhaust stopped working properly that I discovered it, but the valves controlling the symposer and the intake flap were already bad. The second concern is that I read that this part would be used in more critical components (PDK).
Change over valves (simple solenoids in fact) are a very common part and Pierburg, the manufacturer, supplies it to a lot of car makers, including for the previous 911 models. This part number is specific to the 991 and seems to be the one having an issue. They may not be sealing properly allowing moisture in, causing the valves to malfunction over time.
I am not posting this to alarm you but to keep this in mind and report if you had other issues resulting from the failure of that same part.
Having already had 3 bad solenoids, I intend to drop the car at the dealership to get it checked.
#7
02-11-2014, 08:29 AM
I'll ask my service rep if he can elaborate. There was no mention of a campaign that is currently open -- but my rep did say they had seen this happen on a few cars in the past.
Here is a link to my previous post:
Trending Topics
#8
02-11-2014, 09:27 AM
Great Info!
Thanks!
Those valves are all over the car.
PART NUMBER DESCRIPTION MG SG ILL. NO.
7PP906283B CHANGE-OVER VALVE 1 05 105-05 (Water Tube, for heater)
7PP906283B CHANGE-OVER VALVE 1 06 106-00 (2 Valves, Air Cleaner & Symposer)
7PP906283B CHANGE-OVER VALVE 1 06 106-05 (same as above)
7PP906283B CHANGE-OVER VALVE 1 07 107-10 (Intake Distributor)
7PP906283B CHANGE-OVER VALVE 1 07 107-15 (Engine Vacuum System, non S)
7PP906283B CHANGE-OVER VALVE 1 07 107-17 (2 Valves, Engine Vacuum System, S)
7PP906283B CHANGE-OVER VALVE 1 07 107-20 (3 Valves, Engine Vacuum System, X51)
7PP906283B CHANGE-OVER VALVE 2 02 202-10 (Exhaust Standard)
7PP906283B CHANGE-OVER VALVE 2 02 202-15 (Exhaust Sport)
7PP906283B CHANGE-OVER VALVE 3 02 302-15 (Cooler Trans Manual)
7PP906283B CHANGE-OVER VALVE 3 60 360-00 (2 Valves, Cooler Trans PDK)
With those valves controlling the Trans Cooler, I wonder if bad valves are what lead to PDK failures?
Thanks!
Those valves are all over the car.
PART NUMBER DESCRIPTION MG SG ILL. NO.
7PP906283B CHANGE-OVER VALVE 1 05 105-05 (Water Tube, for heater)
7PP906283B CHANGE-OVER VALVE 1 06 106-00 (2 Valves, Air Cleaner & Symposer)
7PP906283B CHANGE-OVER VALVE 1 06 106-05 (same as above)
7PP906283B CHANGE-OVER VALVE 1 07 107-10 (Intake Distributor)
7PP906283B CHANGE-OVER VALVE 1 07 107-15 (Engine Vacuum System, non S)
7PP906283B CHANGE-OVER VALVE 1 07 107-17 (2 Valves, Engine Vacuum System, S)
7PP906283B CHANGE-OVER VALVE 1 07 107-20 (3 Valves, Engine Vacuum System, X51)
7PP906283B CHANGE-OVER VALVE 2 02 202-10 (Exhaust Standard)
7PP906283B CHANGE-OVER VALVE 2 02 202-15 (Exhaust Sport)
7PP906283B CHANGE-OVER VALVE 3 02 302-15 (Cooler Trans Manual)
7PP906283B CHANGE-OVER VALVE 3 60 360-00 (2 Valves, Cooler Trans PDK)
With those valves controlling the Trans Cooler, I wonder if bad valves are what lead to PDK failures?
Last edited by lunarx; 02-12-2014 at 01:57 AM.
#9
02-13-2014, 09:13 AM

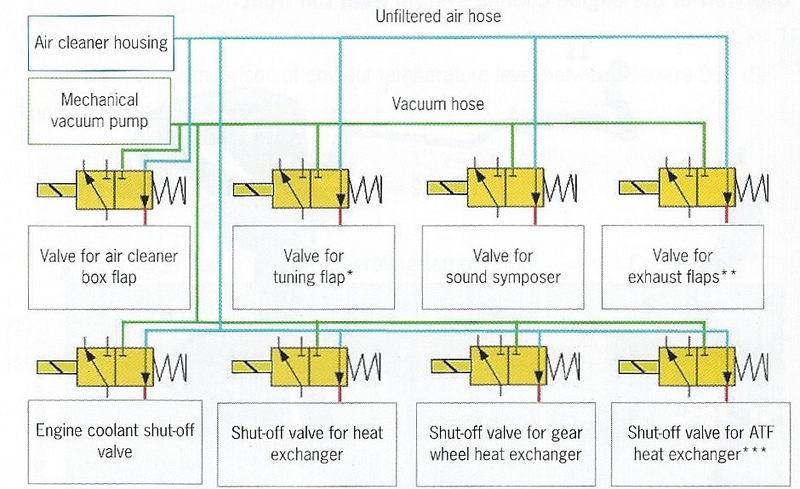

Change Over Valves failure - part 2 I found the following schematic about the vacuum system in the 991 Service Information book (you can buy it from Suncoast BTW):
It confirms my fear that more critical items can go wrong due to failed solenoids: i.e. shut off valves for engine coolant or ATF (= automatic transmission fluid for PDK). The Porsche document nevertheless mentions that "electric solenoid valves in the vacuum system are fully diagnosable (short circuit/open circuit); electrical faults result in an entry in the DME control unit and the PDK unit". I nevertheless did not get any alert for my failed solenoids and will definitely get the other ones checked ASAP.
It confirms my fear that more critical items can go wrong due to failed solenoids: i.e. shut off valves for engine coolant or ATF (= automatic transmission fluid for PDK). The Porsche document nevertheless mentions that "electric solenoid valves in the vacuum system are fully diagnosable (short circuit/open circuit); electrical faults result in an entry in the DME control unit and the PDK unit". I nevertheless did not get any alert for my failed solenoids and will definitely get the other ones checked ASAP.
Last edited by SM_ATL; 02-13-2014 at 01:53 PM.
#11
02-13-2014, 01:36 PM
Interesting stuff, Serge. I wouldn't mind getting these checked out, as well. I just hate to think that the dealer won't really bother doing a thorough check if I don't already have an obvious problem. They'd probably come back with an "all is well" answer.
#12
02-13-2014, 01:46 PM
Well, I agree, Christo- I was just at the dealer this past Monday for a valve failure on my 06/13 build '14 C4S and the part that failed was replaced without ANY mention of other valves being checked, and certainly not replaced. The Service rep even mentioned that "they've seen something 'similar' on other cars" in the past. If there was a campaign previously, then it must have expired or something and my June 13 build was not included.
I do intend on taking back to the dealer at some point -- tried talking to them today, but they were all literally out in the lot digging cars out!!!
Serge- thank you AGAIN for maintaining such a great level of detailed information on this board!
I do intend on taking back to the dealer at some point -- tried talking to them today, but they were all literally out in the lot digging cars out!!!
Serge- thank you AGAIN for maintaining such a great level of detailed information on this board!
#13
02-13-2014, 01:54 PM
Well, I agree, Christo- I was just at the dealer this past Monday for a valve failure on my 06/13 build '14 C4S and the part that failed was replaced without ANY mention of other valves being checked, and certainly not replaced. The Service rep even mentioned that "they've seen something 'similar' on other cars" in the past. If there was a campaign previously, then it must have expired or something and my June 13 build was not included.
#14
02-13-2014, 02:46 PM

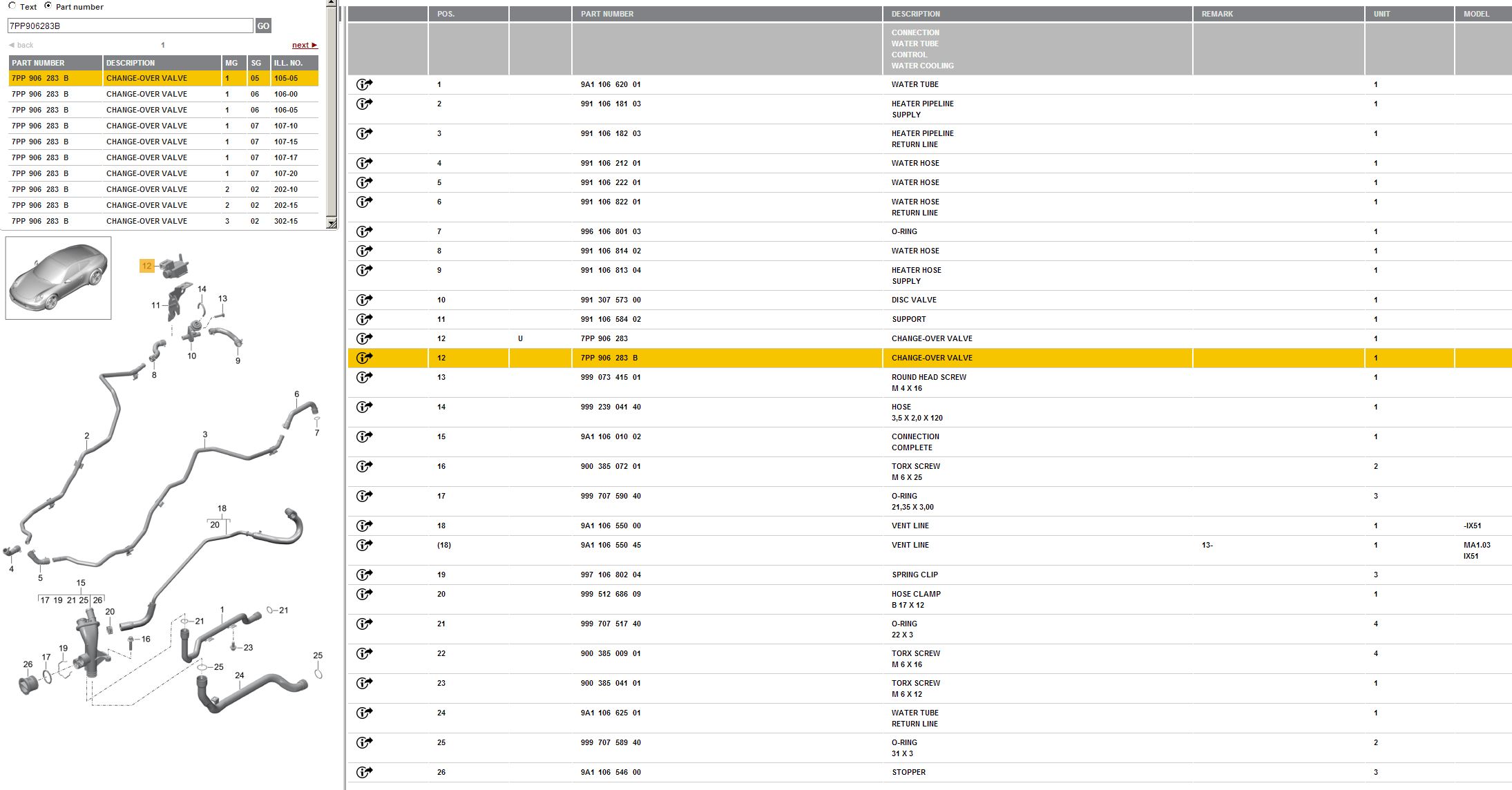

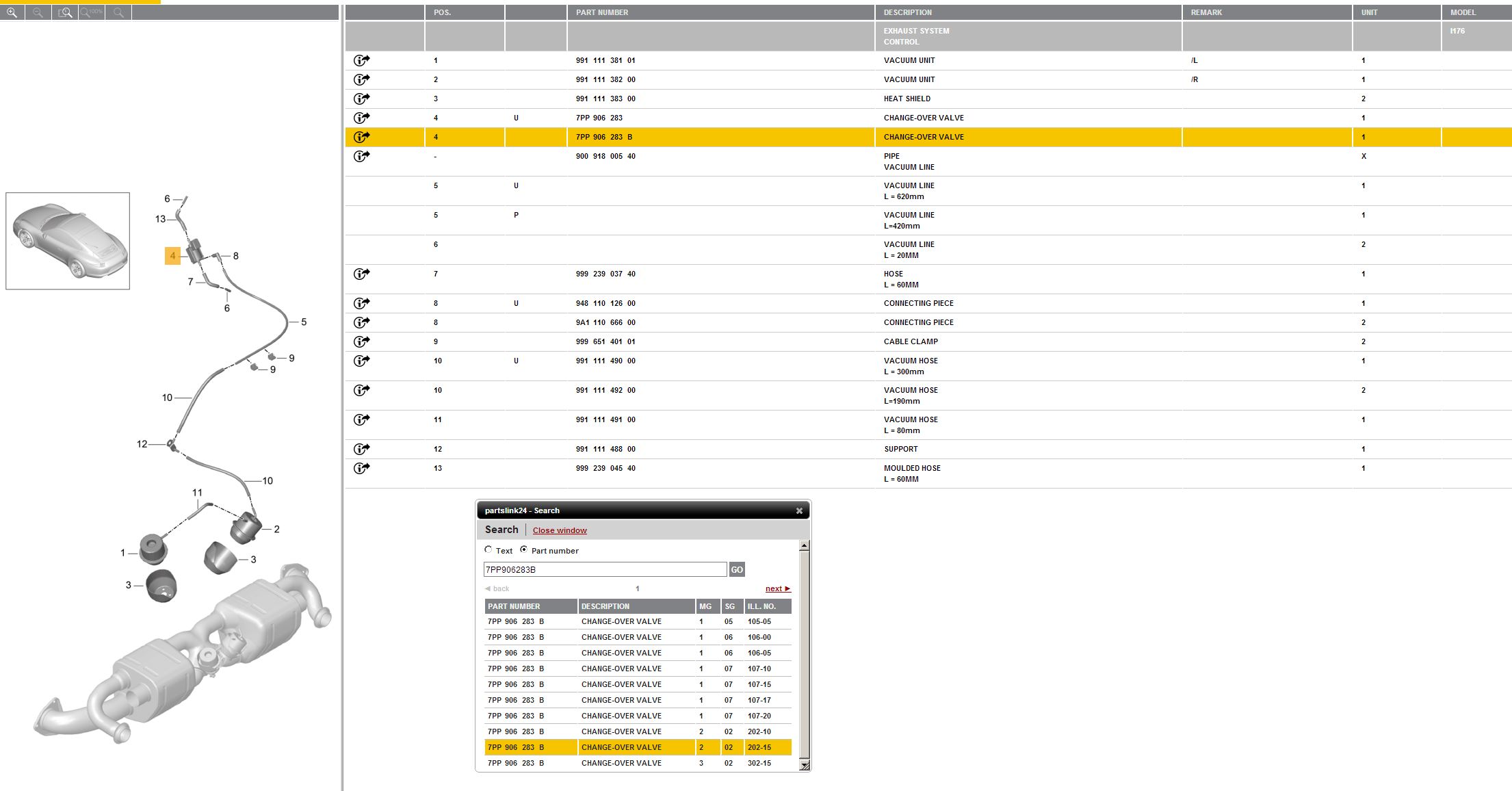

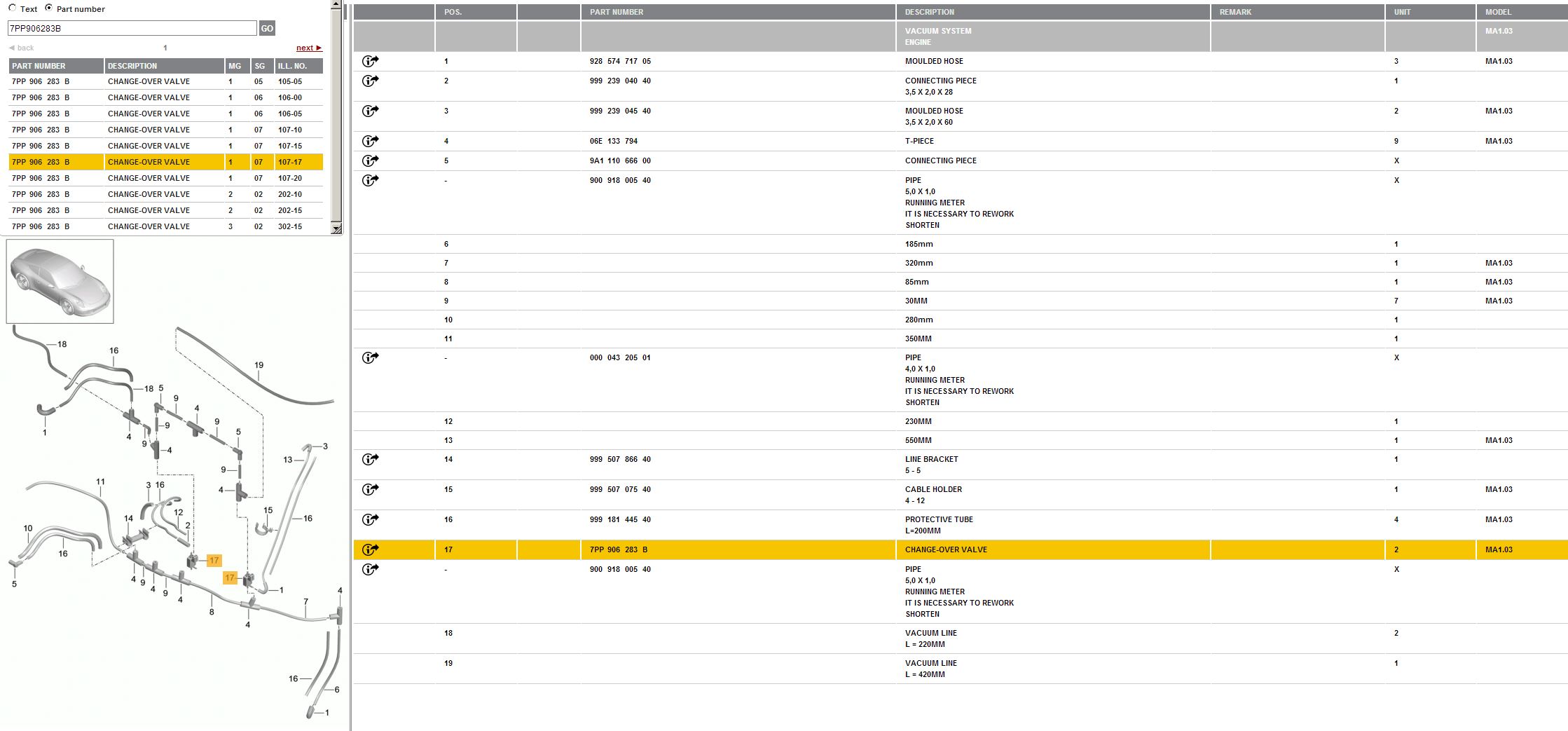

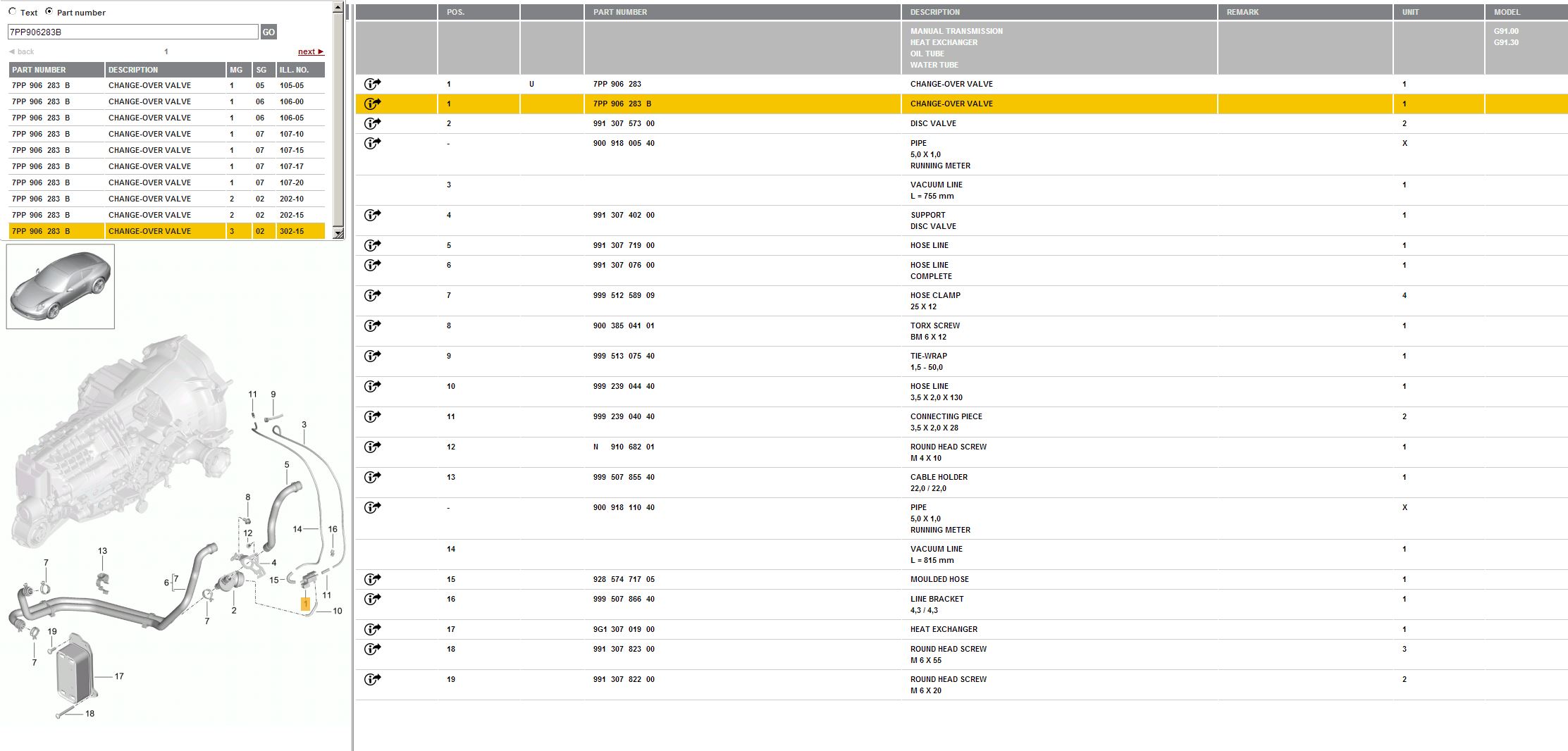

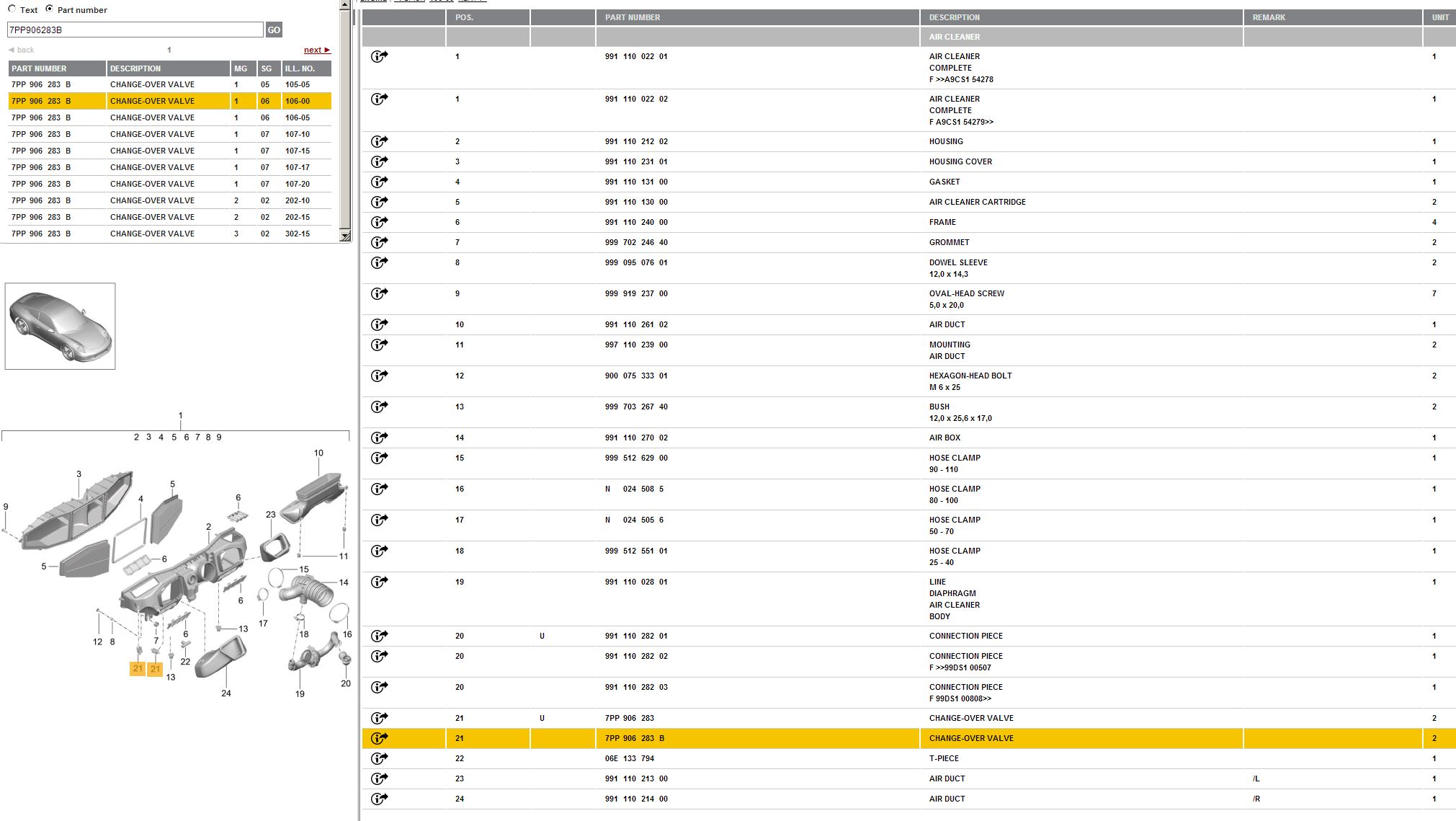

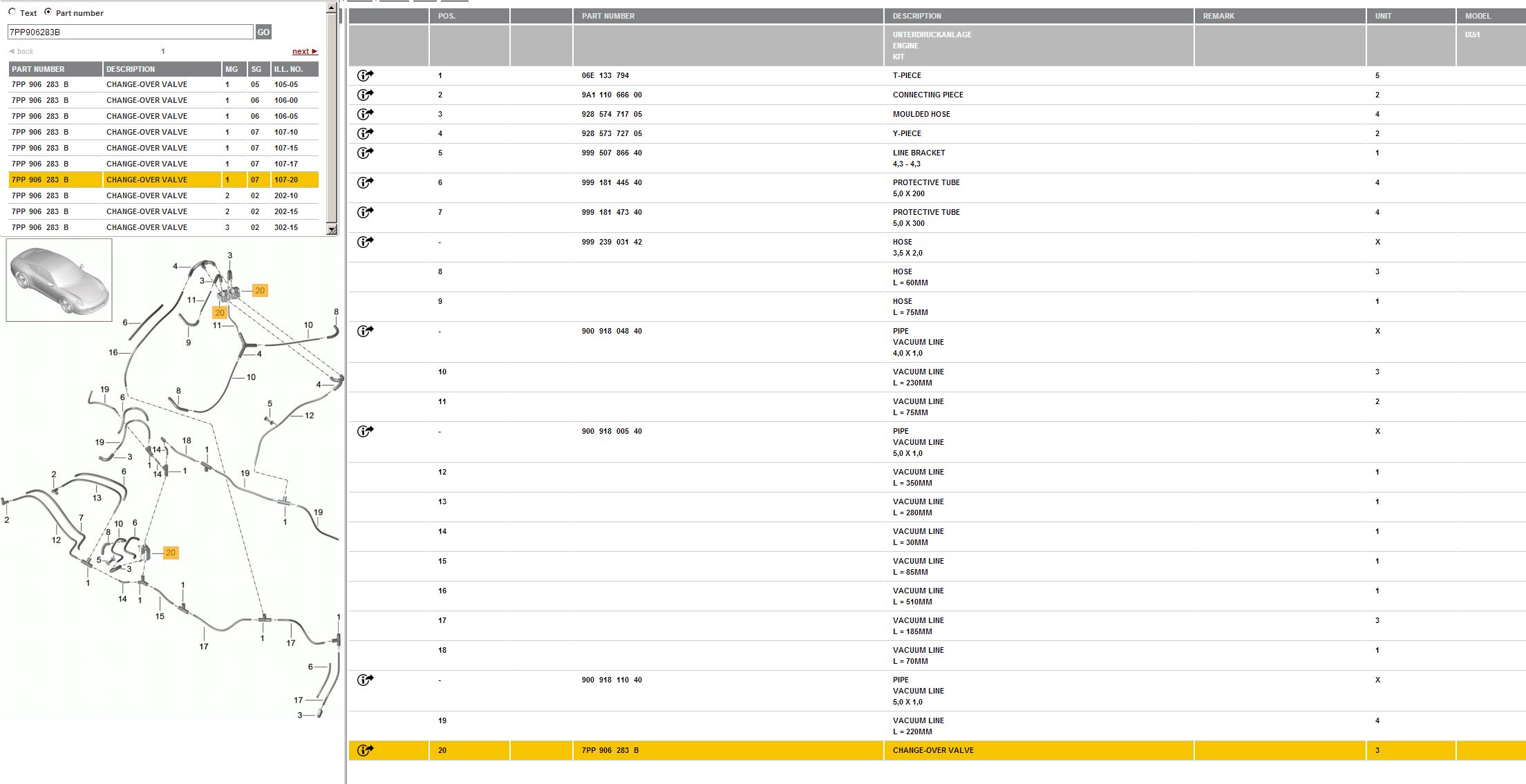

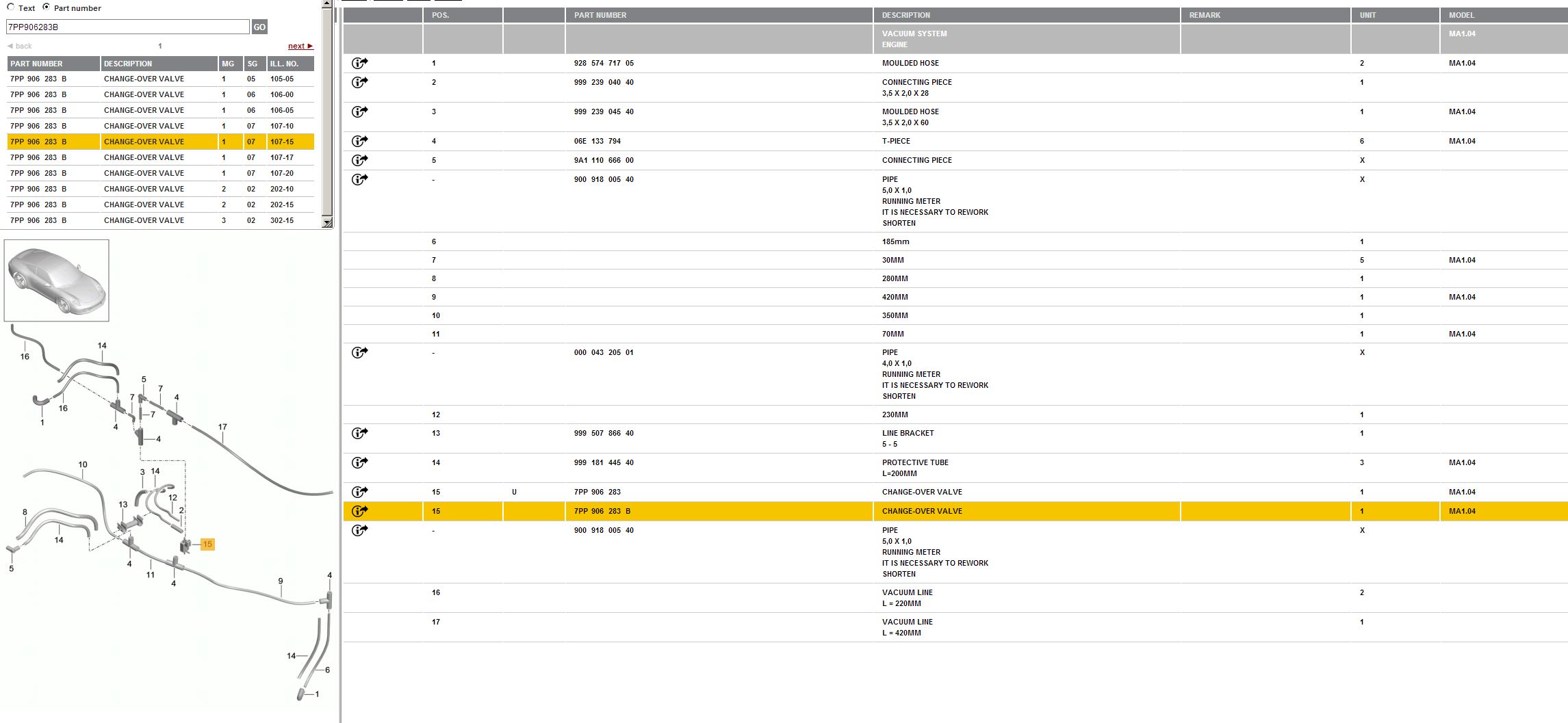

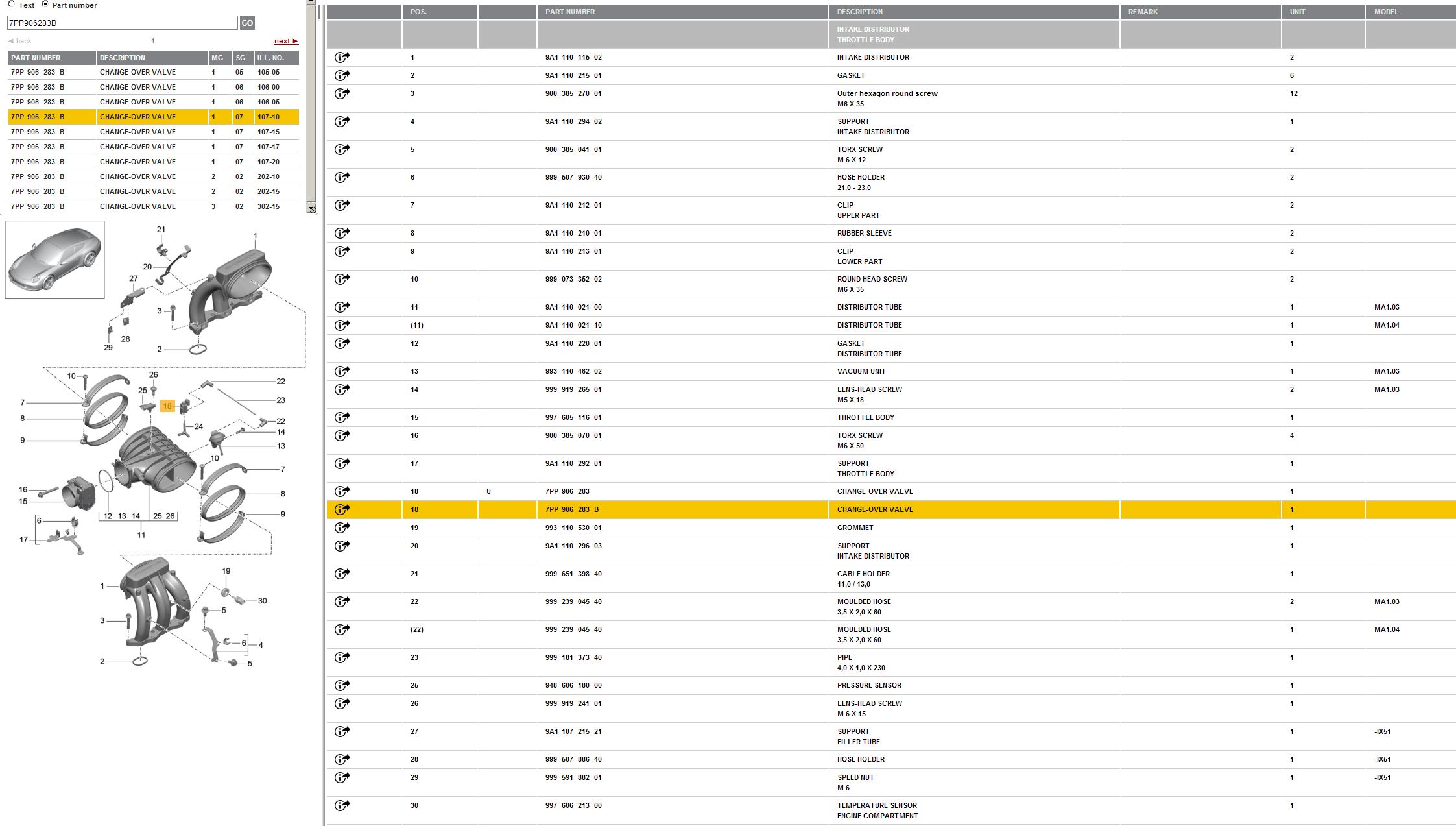

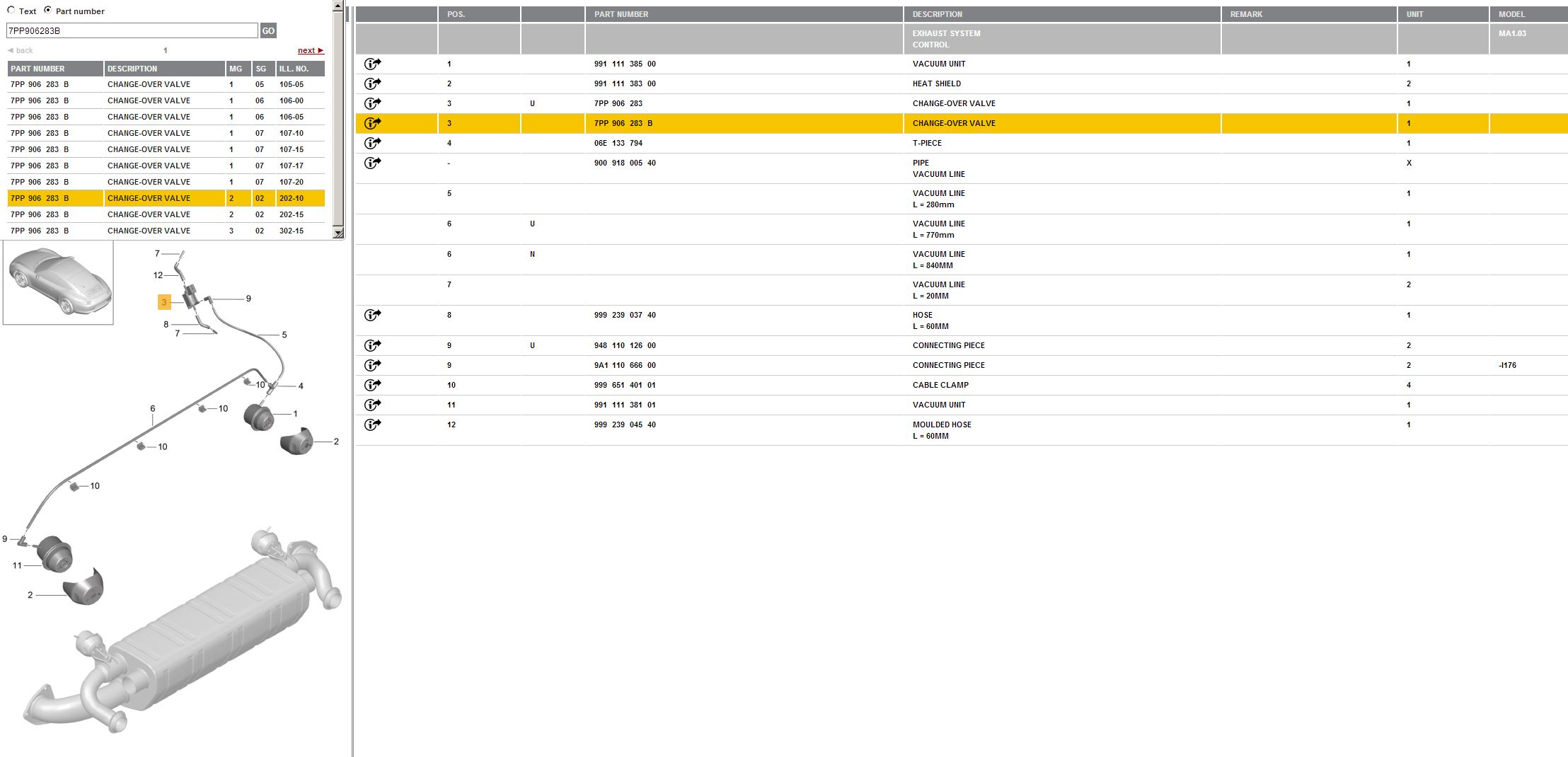

These are the diagrams and in most cases you can see the item being controlled.
