996 Turbo / GT2 Turbo discussion on previous model 2000-2005 Porsche 911 Twin Turbo and 911 GT2.

Silver bullet build

Thread Tools

Rate Thread

Old Apr 25, 2016 | 05:46 AM
  #76
flewis763's Avatar
Thread Starter
|
Registered User
Joined: Jun 2015
Posts: 829
From: Fargo, ND
Rep Power: 76
flewis763 has a reputation beyond reputeflewis763 has a reputation beyond reputeflewis763 has a reputation beyond reputeflewis763 has a reputation beyond reputeflewis763 has a reputation beyond reputeflewis763 has a reputation beyond reputeflewis763 has a reputation beyond reputeflewis763 has a reputation beyond reputeflewis763 has a reputation beyond reputeflewis763 has a reputation beyond reputeflewis763 has a reputation beyond repute
Originally Posted by pwdrhound
Where did you get the vent aluminum vent screens? I need to get mine replaced as they are pretty beat up.
Ya I bought them from rennline not realizing they are designed to fit only the oem gt2 bumper. With the bumper on the center sits flush on the bumper but the side vents there is a space between the bumper and the screen

Old Apr 25, 2016 | 06:16 AM
  #77
32krazy!'s Avatar
Banned
Joined: Dec 2008
Posts: 5,551
From: tn
Rep Power: 628
32krazy! Is a GOD !32krazy! Is a GOD !32krazy! Is a GOD !32krazy! Is a GOD !32krazy! Is a GOD !32krazy! Is a GOD !32krazy! Is a GOD !32krazy! Is a GOD !32krazy! Is a GOD !32krazy! Is a GOD !32krazy! Is a GOD !
Originally Posted by flewis763
Ya I bought them from rennline not realizing they are designed to fit only the oem gt2 bumper. With the bumper on the center sits flush on the bumper but the side vents there is a space between the bumper and the screen

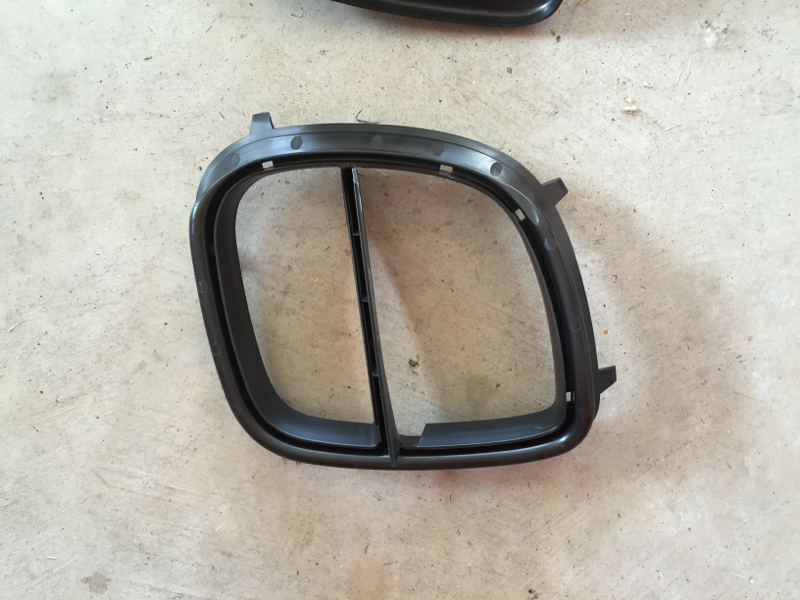

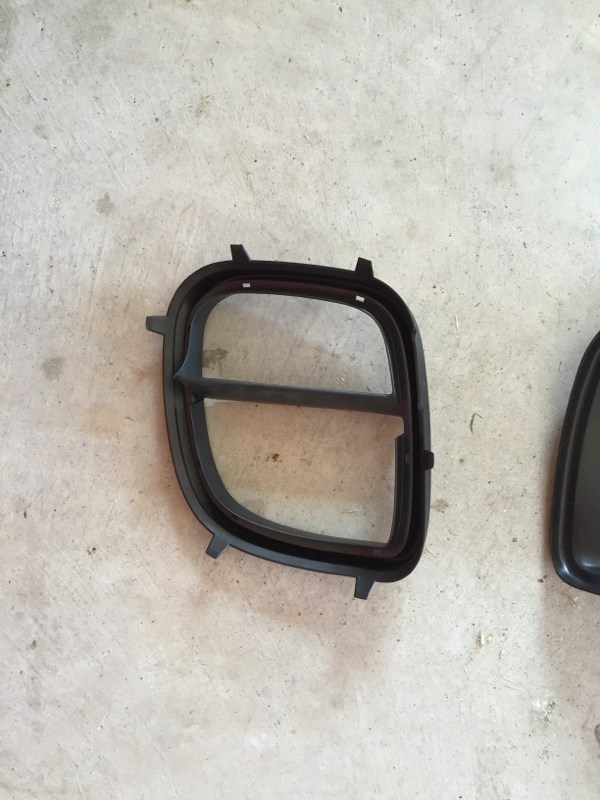

Do you have these pieces installed on the ducting? It goes between the bumper and the air duct

Attached Images
Old Apr 25, 2016 | 07:30 AM
  #78
flewis763's Avatar
Thread Starter
|
Registered User
Joined: Jun 2015
Posts: 829
From: Fargo, ND
Rep Power: 76
flewis763 has a reputation beyond reputeflewis763 has a reputation beyond reputeflewis763 has a reputation beyond reputeflewis763 has a reputation beyond reputeflewis763 has a reputation beyond reputeflewis763 has a reputation beyond reputeflewis763 has a reputation beyond reputeflewis763 has a reputation beyond reputeflewis763 has a reputation beyond reputeflewis763 has a reputation beyond reputeflewis763 has a reputation beyond repute
Originally Posted by 32krazy!
Do you have these pieces installed on the ducting? It goes between the bumper and the air duct

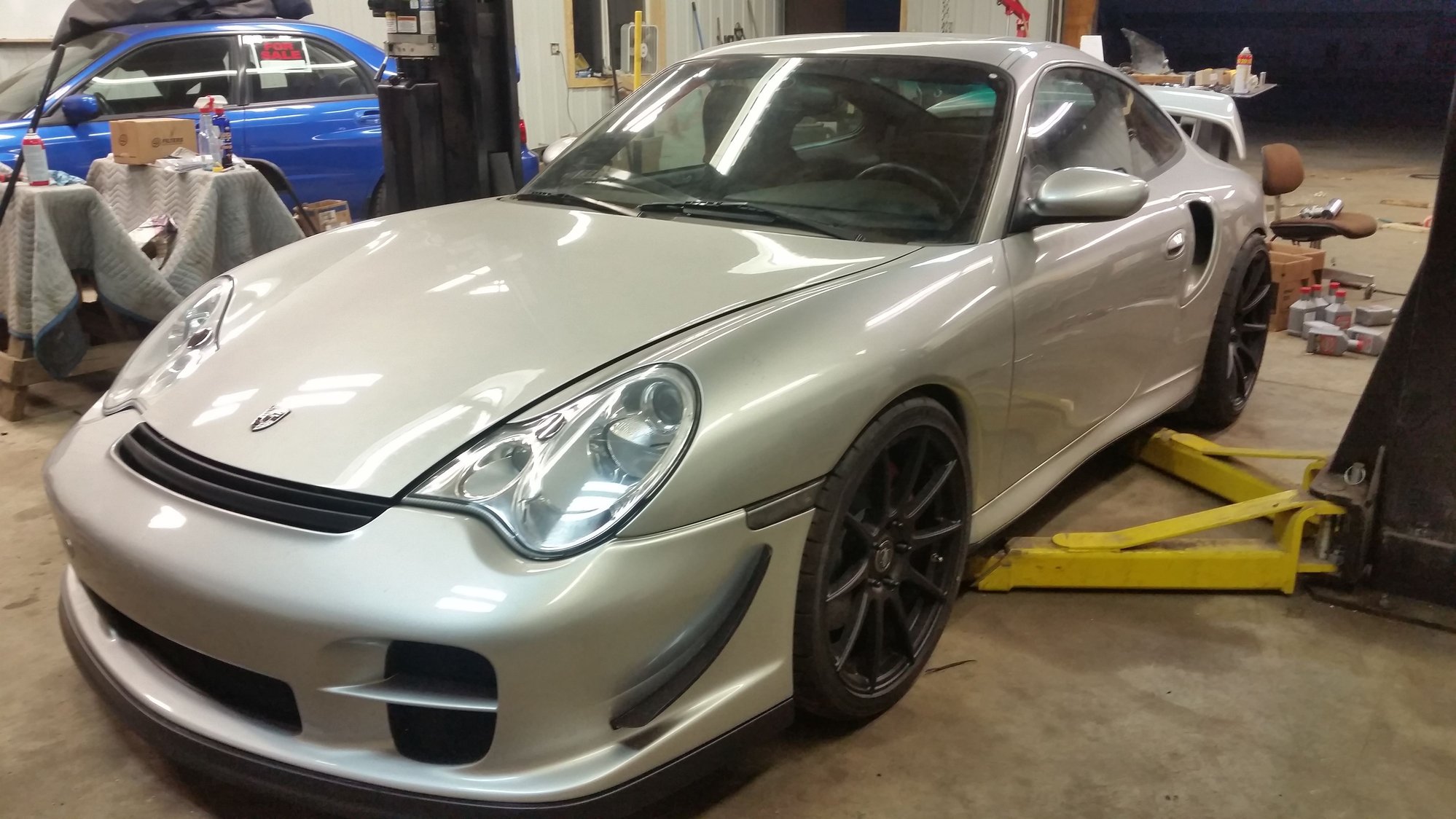

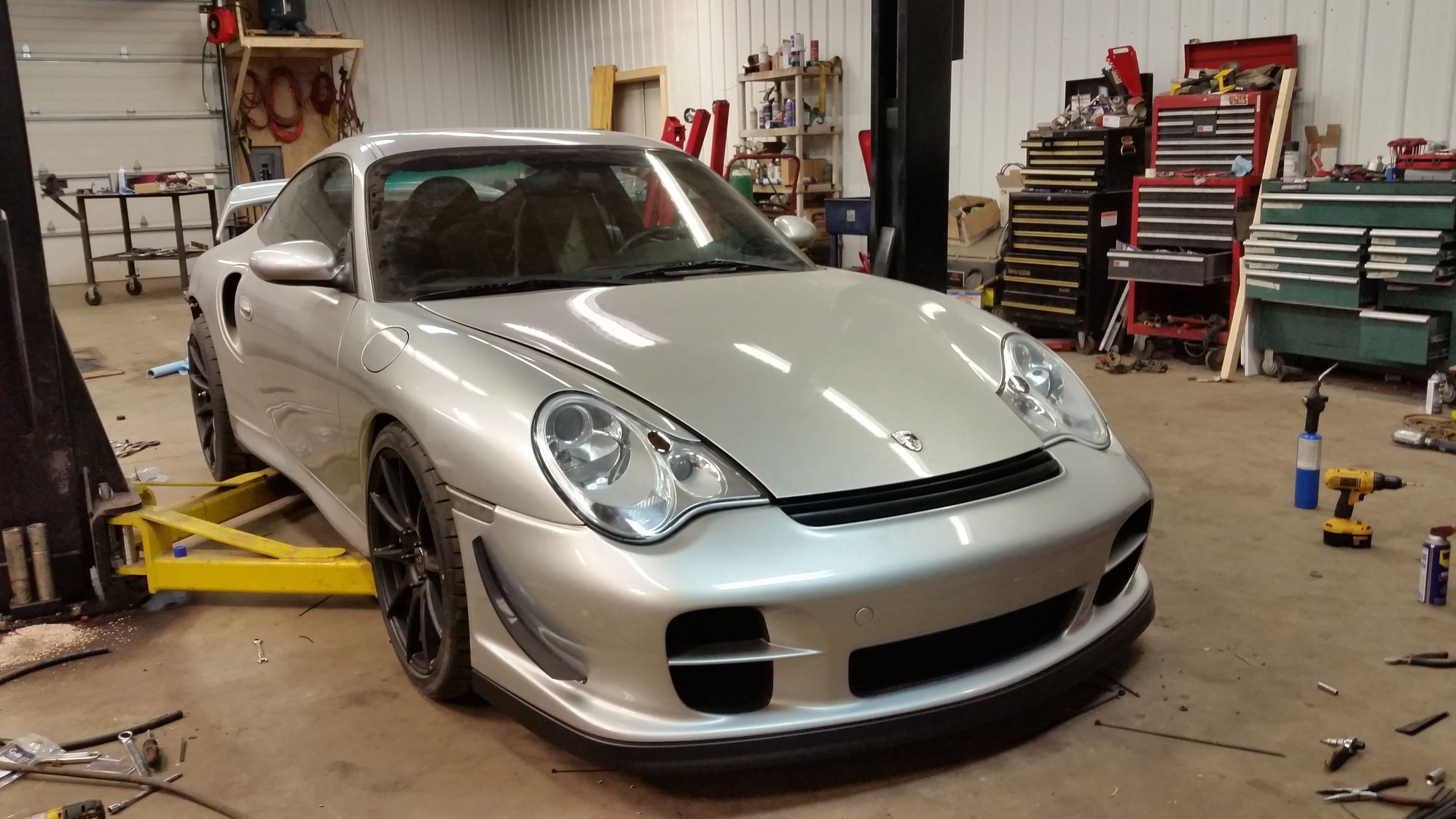

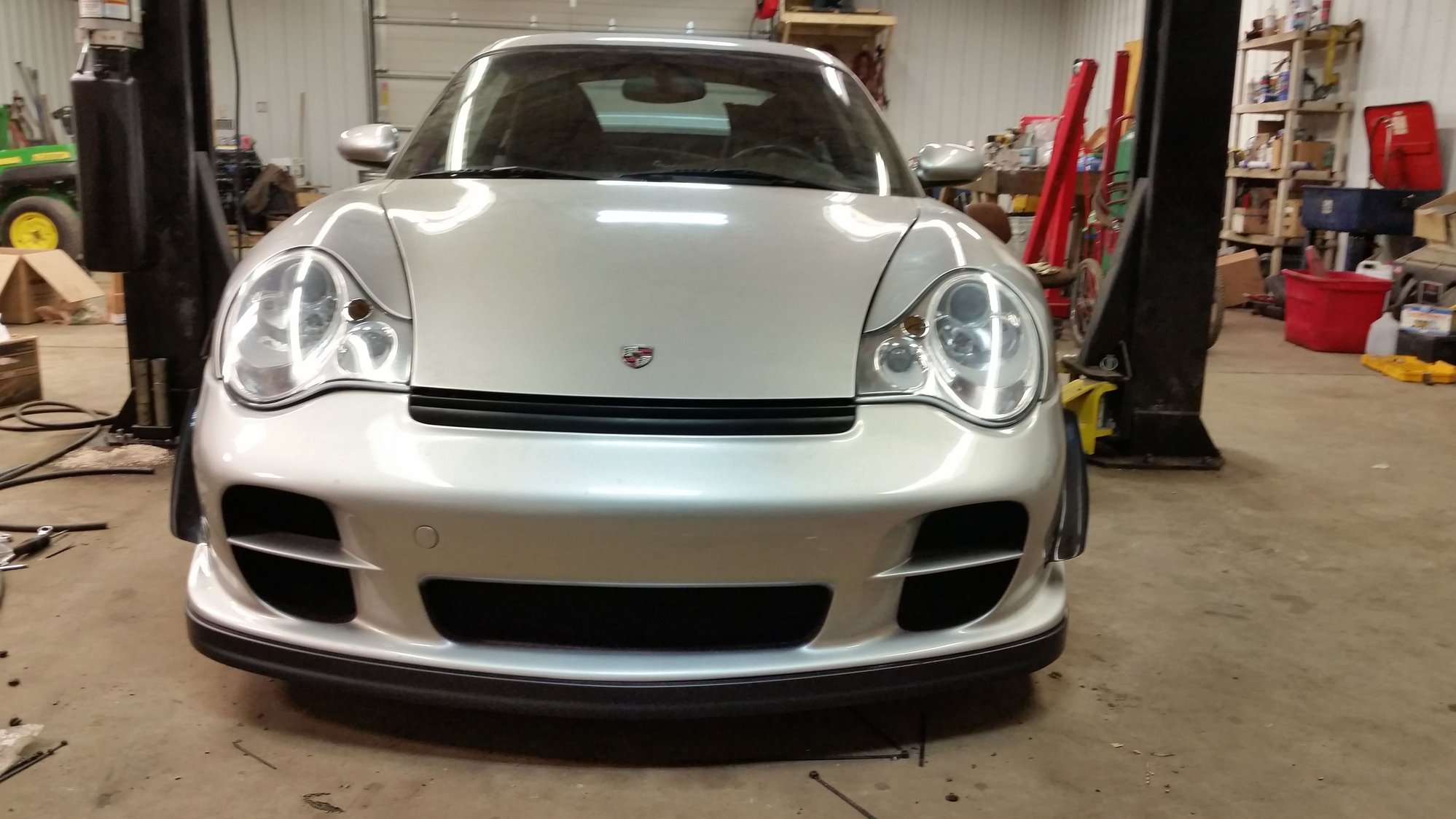

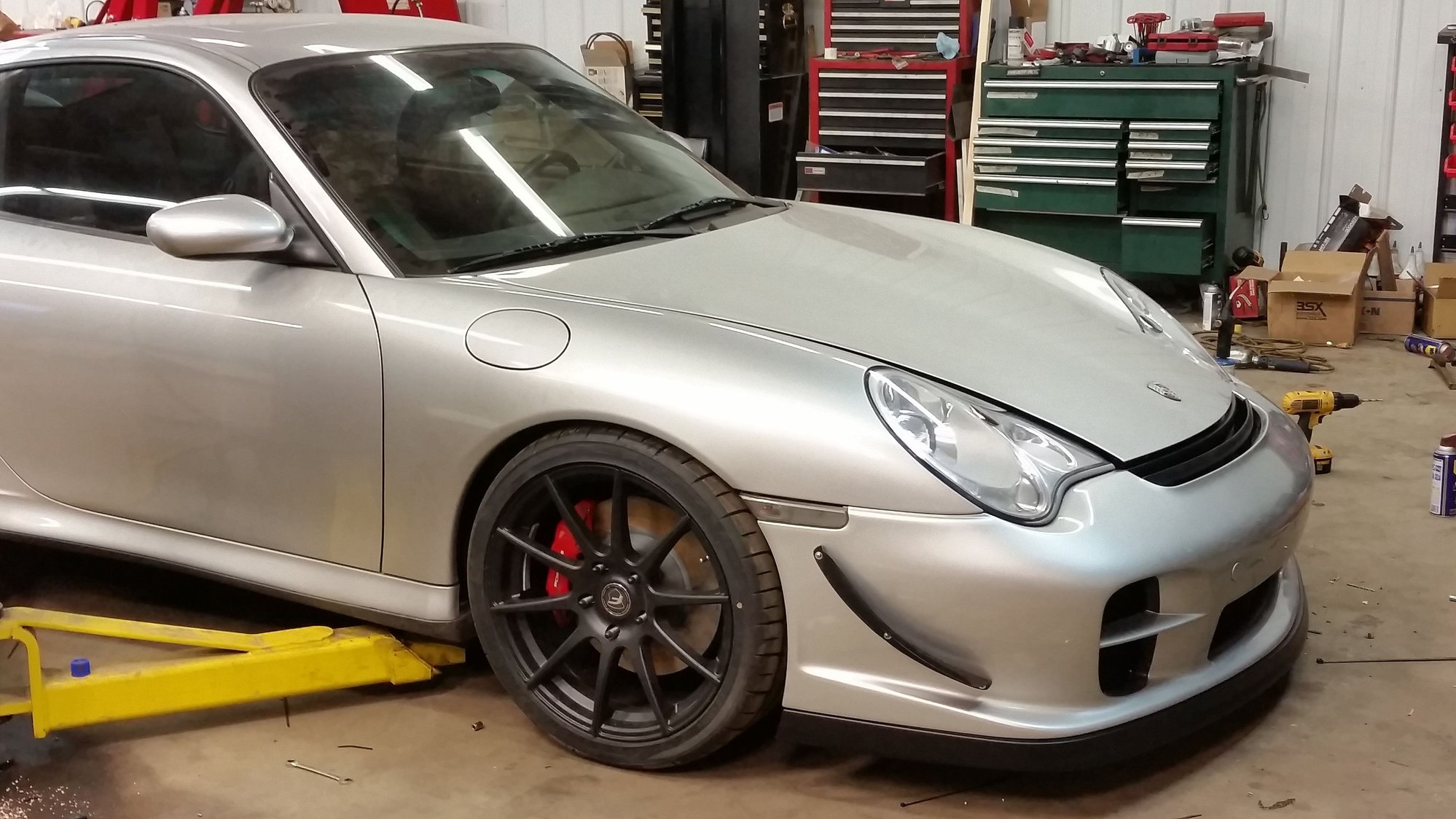

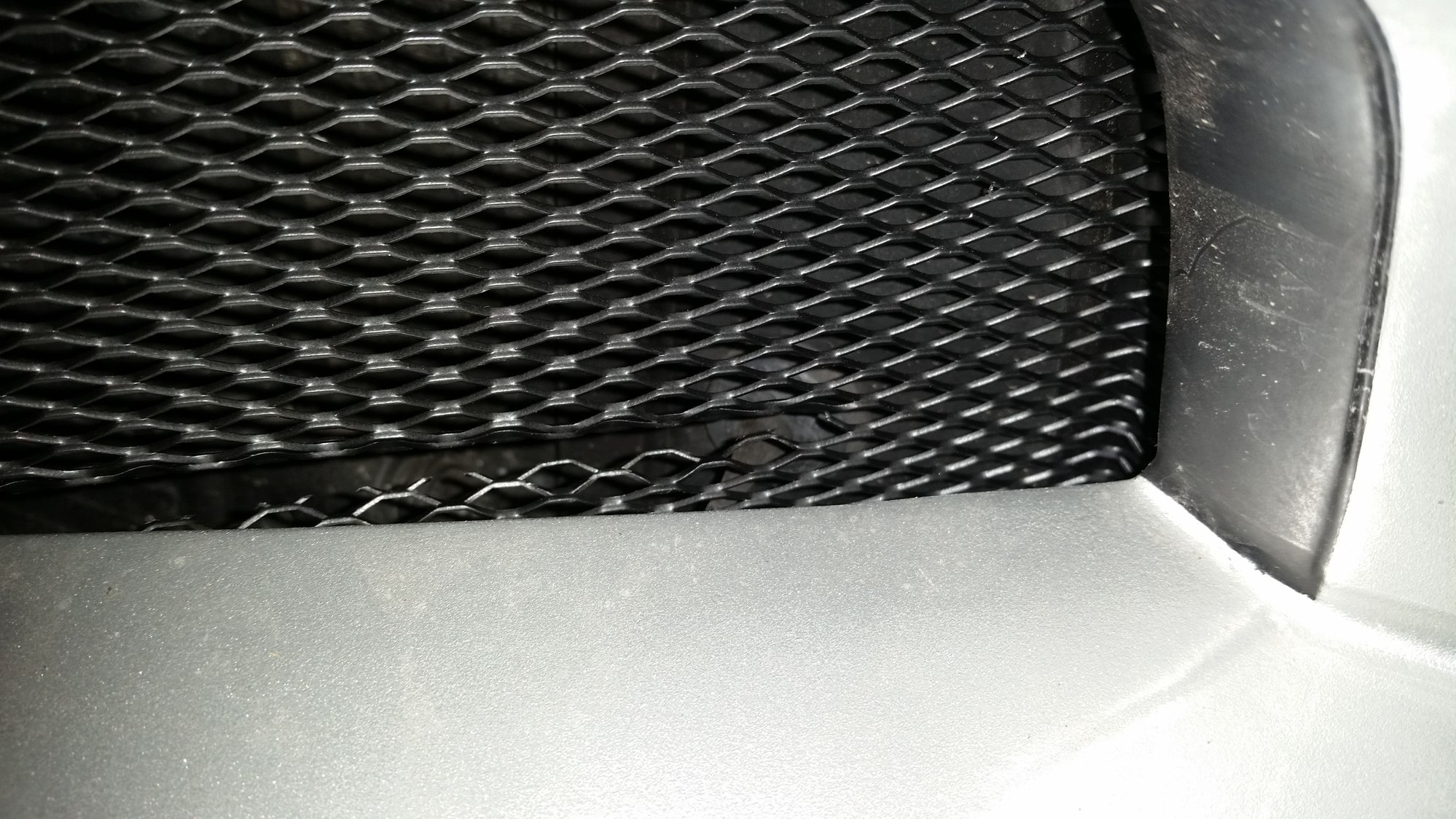

We talked about those saturday. I don't but should get them eventually. Here I what it looks like right now which again is still better than nothing there. Also some shots with the bumper on.
















Old Apr 25, 2016 | 08:04 AM
  #79
32krazy!'s Avatar
Banned
Joined: Dec 2008
Posts: 5,551
From: tn
Rep Power: 628
32krazy! Is a GOD !32krazy! Is a GOD !32krazy! Is a GOD !32krazy! Is a GOD !32krazy! Is a GOD !32krazy! Is a GOD !32krazy! Is a GOD !32krazy! Is a GOD !32krazy! Is a GOD !32krazy! Is a GOD !32krazy! Is a GOD !
Originally Posted by flewis763
We talked about those saturday. I don't but should get them eventually. Here I what it looks like right now which again is still better than nothing there. Also some shots with the bumper on.
Thats likely why the screens dont fit well

Old Apr 25, 2016 | 08:11 AM
  #80
flewis763's Avatar
Thread Starter
|
Registered User
Joined: Jun 2015
Posts: 829
From: Fargo, ND
Rep Power: 76
flewis763 has a reputation beyond reputeflewis763 has a reputation beyond reputeflewis763 has a reputation beyond reputeflewis763 has a reputation beyond reputeflewis763 has a reputation beyond reputeflewis763 has a reputation beyond reputeflewis763 has a reputation beyond reputeflewis763 has a reputation beyond reputeflewis763 has a reputation beyond reputeflewis763 has a reputation beyond reputeflewis763 has a reputation beyond repute
Originally Posted by 32krazy!
Thats likely why the screens dont fit well
Didn't even know those vents existed until after I bought the kit. As some right now I don't want to pull the bumper back of as I already sealed arundel the headlights. I will get them eventually though and make it right.

Old Jun 20, 2016 | 09:16 AM
  #81
flewis763's Avatar
Thread Starter
|
Registered User
Joined: Jun 2015
Posts: 829
From: Fargo, ND
Rep Power: 76
flewis763 has a reputation beyond reputeflewis763 has a reputation beyond reputeflewis763 has a reputation beyond reputeflewis763 has a reputation beyond reputeflewis763 has a reputation beyond reputeflewis763 has a reputation beyond reputeflewis763 has a reputation beyond reputeflewis763 has a reputation beyond reputeflewis763 has a reputation beyond reputeflewis763 has a reputation beyond reputeflewis763 has a reputation beyond repute

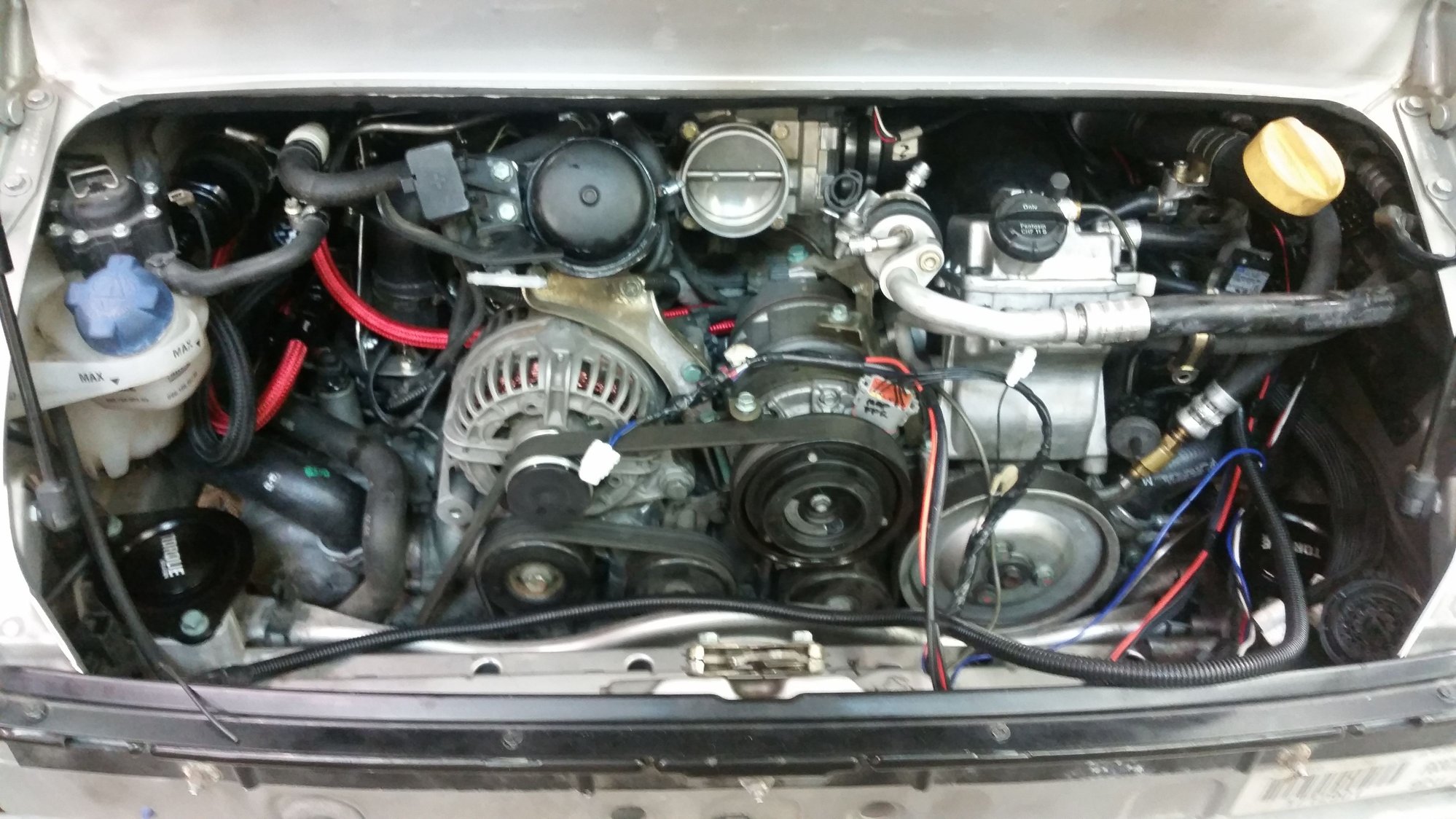

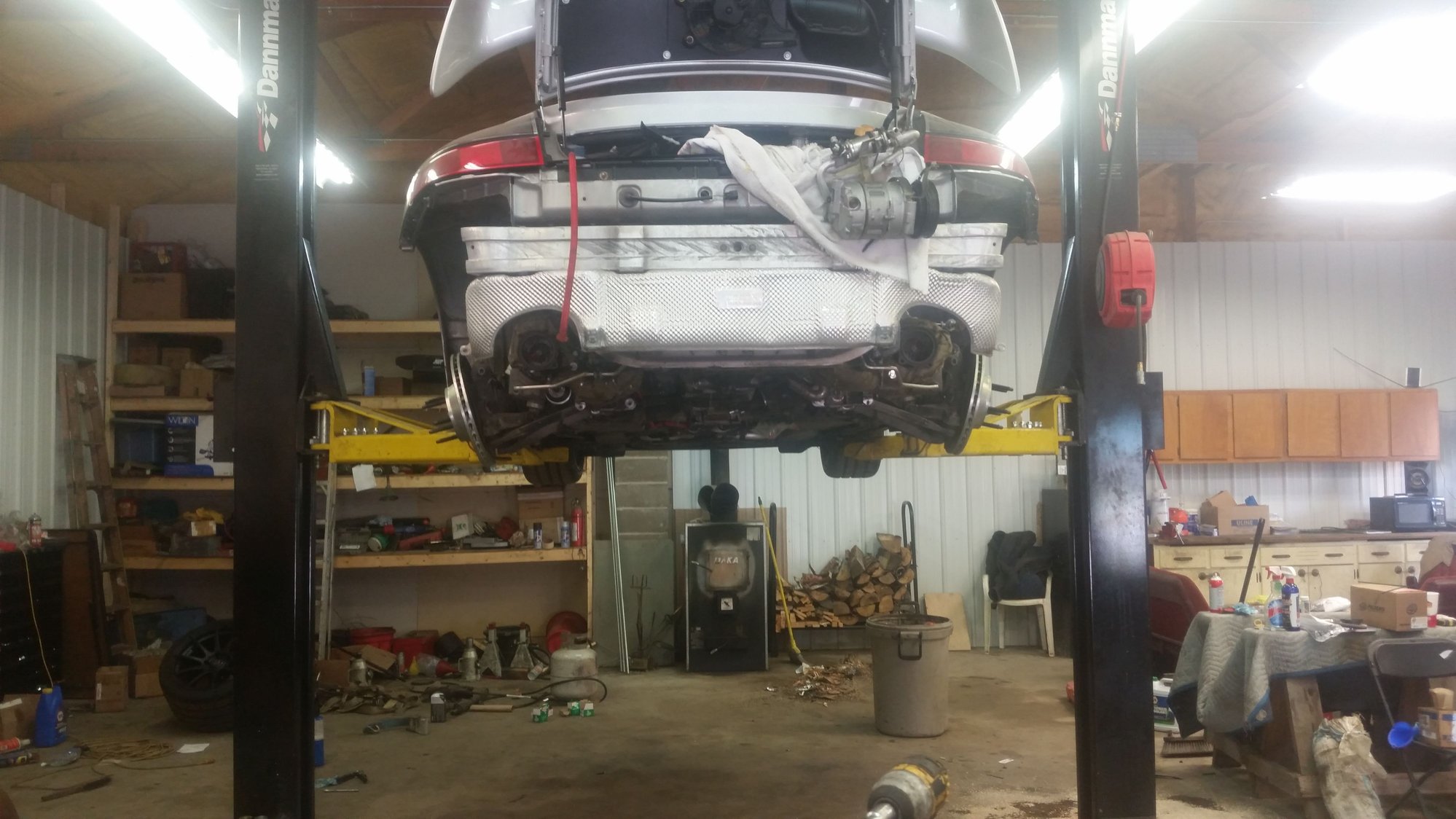

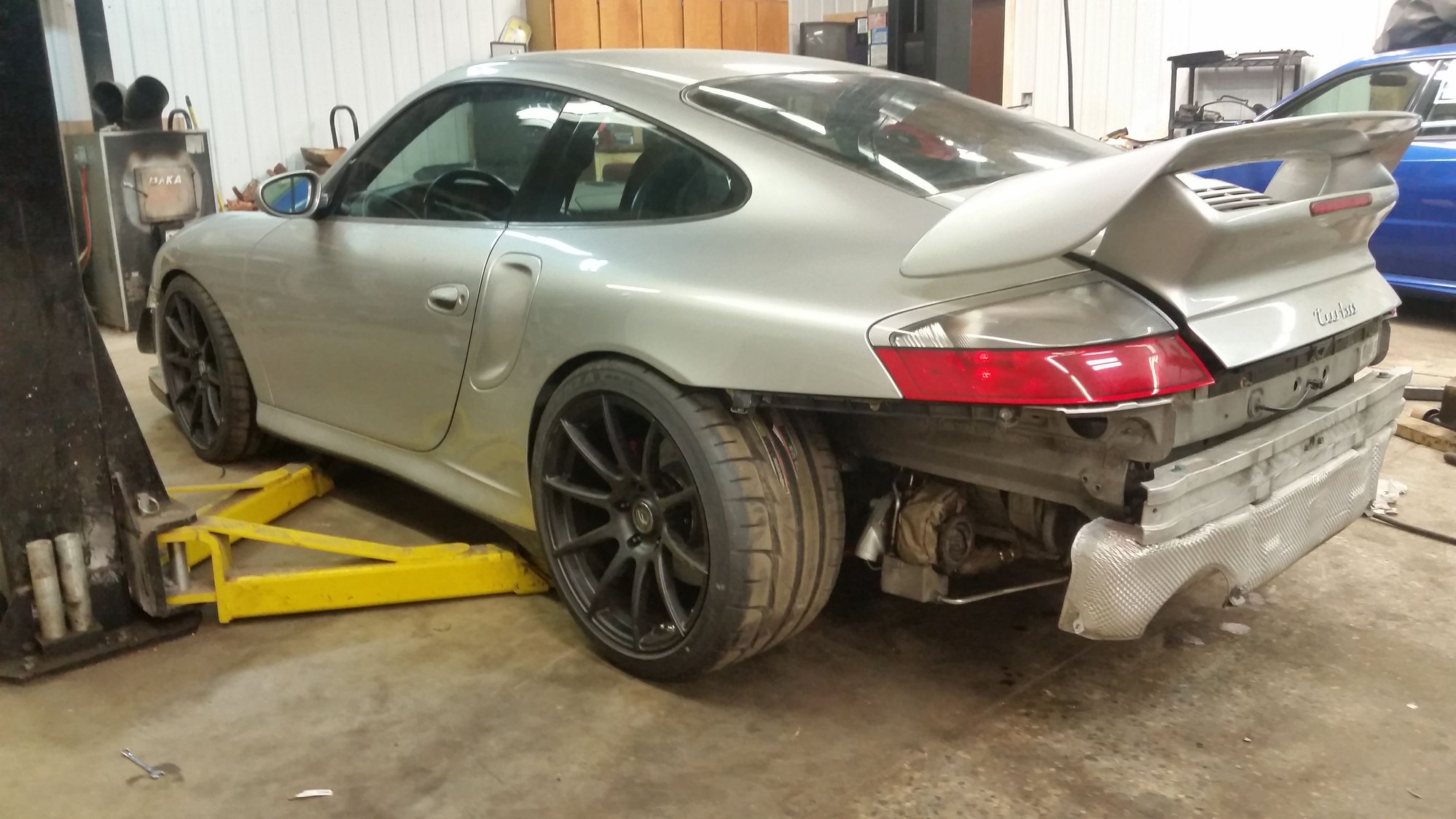

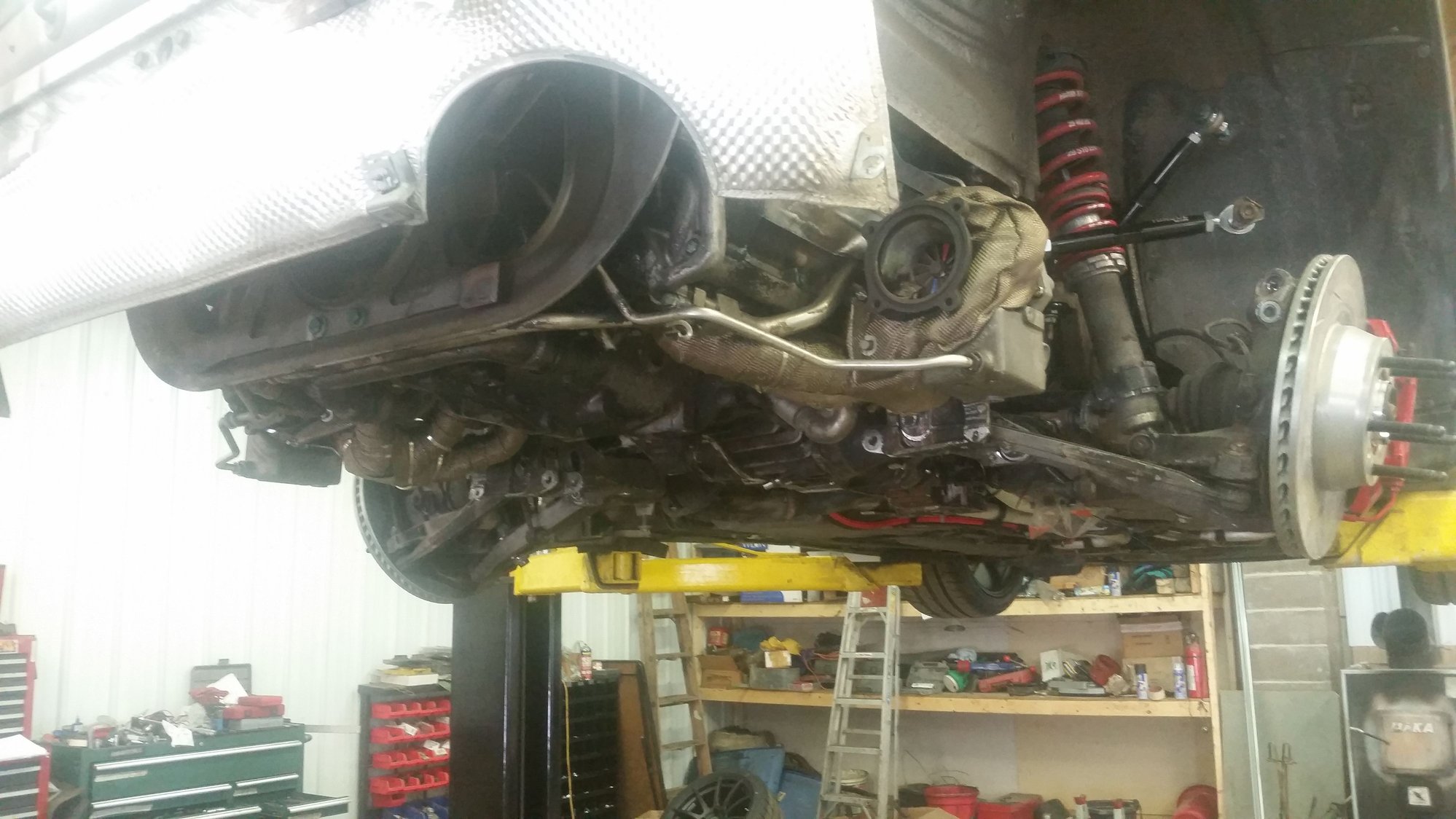

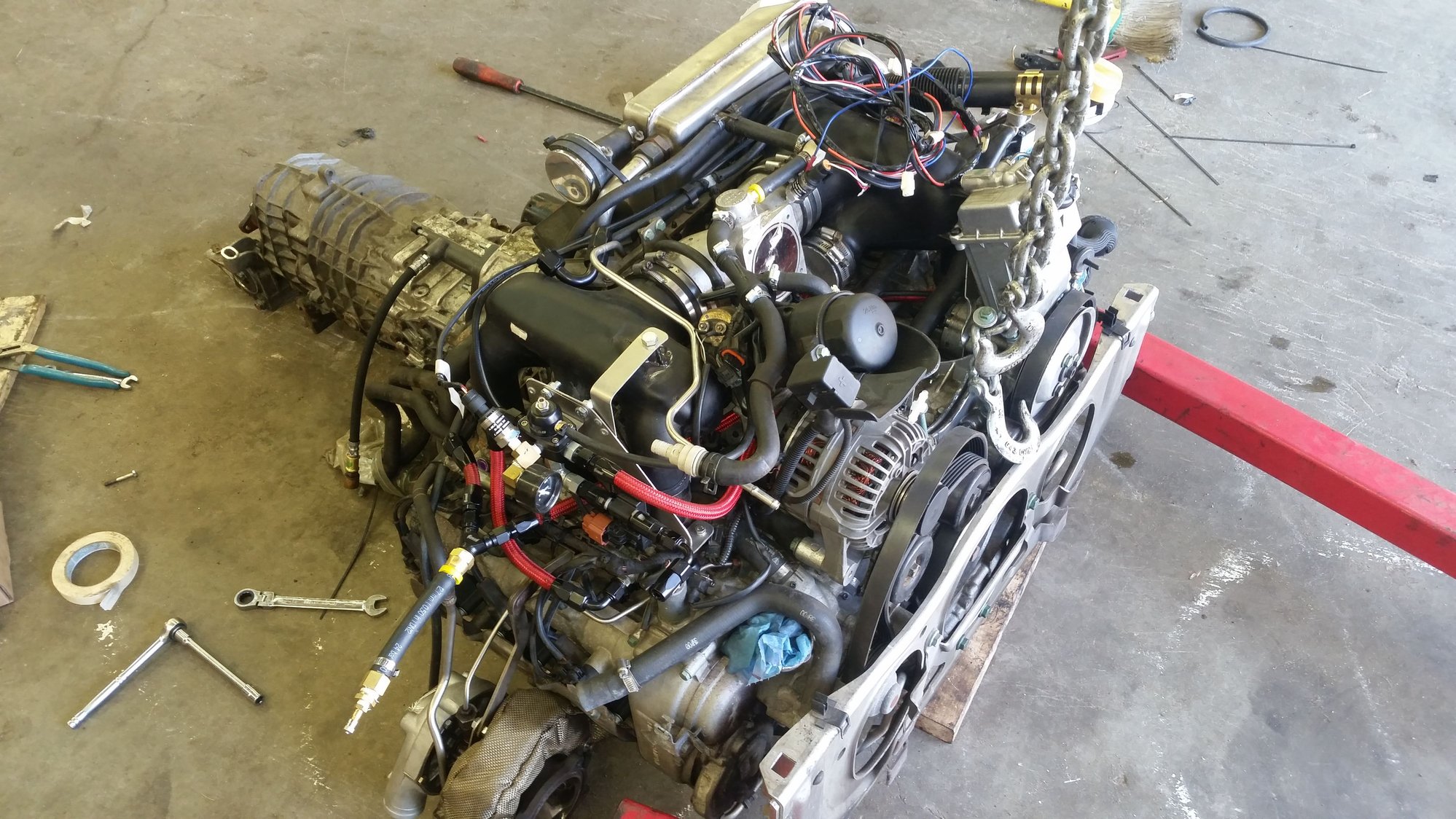

Well after 6 weeks on the road and basically home for 1 night, I got some work done this weekend but has set backs of course. Engine and trans are in with the new mounts. Fuel system is all complete and hooked up. Wiring is 90% done.

Problems now with my intakes. Filters I bought are to large, ordered smaller one this morning. Going to make that work for this year and come up with a new idea I think this winter.

Waiting on my 4.5 intercoolers from sean at srm and still have to weld the exhaust together. Also have to put the gt2 clutch master and spring in and bleed that.

Hopefully next weekend it will be complete and running. Lots of tuning to do but hoping it can at least be on the road over the 4th weekend because I'm suppose to go on a charity cruise for the red cross on the 3rd in Wisconsin with MNE&S.

Hoping next weekend I can con friends into coming and help finish it up.













Old Jun 27, 2016 | 09:42 PM
  #82
flewis763's Avatar
Thread Starter
|
Registered User
Joined: Jun 2015
Posts: 829
From: Fargo, ND
Rep Power: 76
flewis763 has a reputation beyond reputeflewis763 has a reputation beyond reputeflewis763 has a reputation beyond reputeflewis763 has a reputation beyond reputeflewis763 has a reputation beyond reputeflewis763 has a reputation beyond reputeflewis763 has a reputation beyond reputeflewis763 has a reputation beyond reputeflewis763 has a reputation beyond reputeflewis763 has a reputation beyond reputeflewis763 has a reputation beyond repute

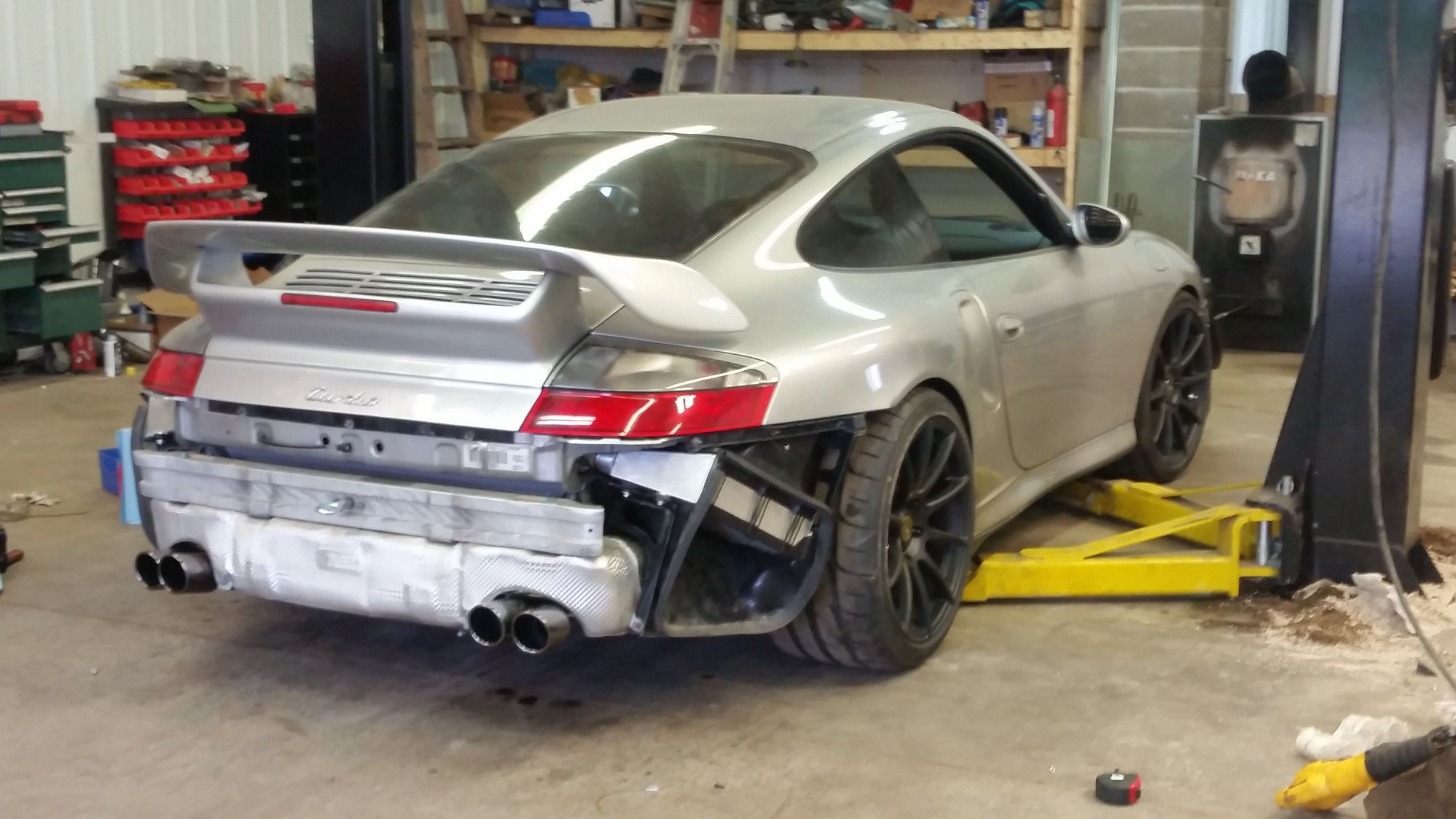

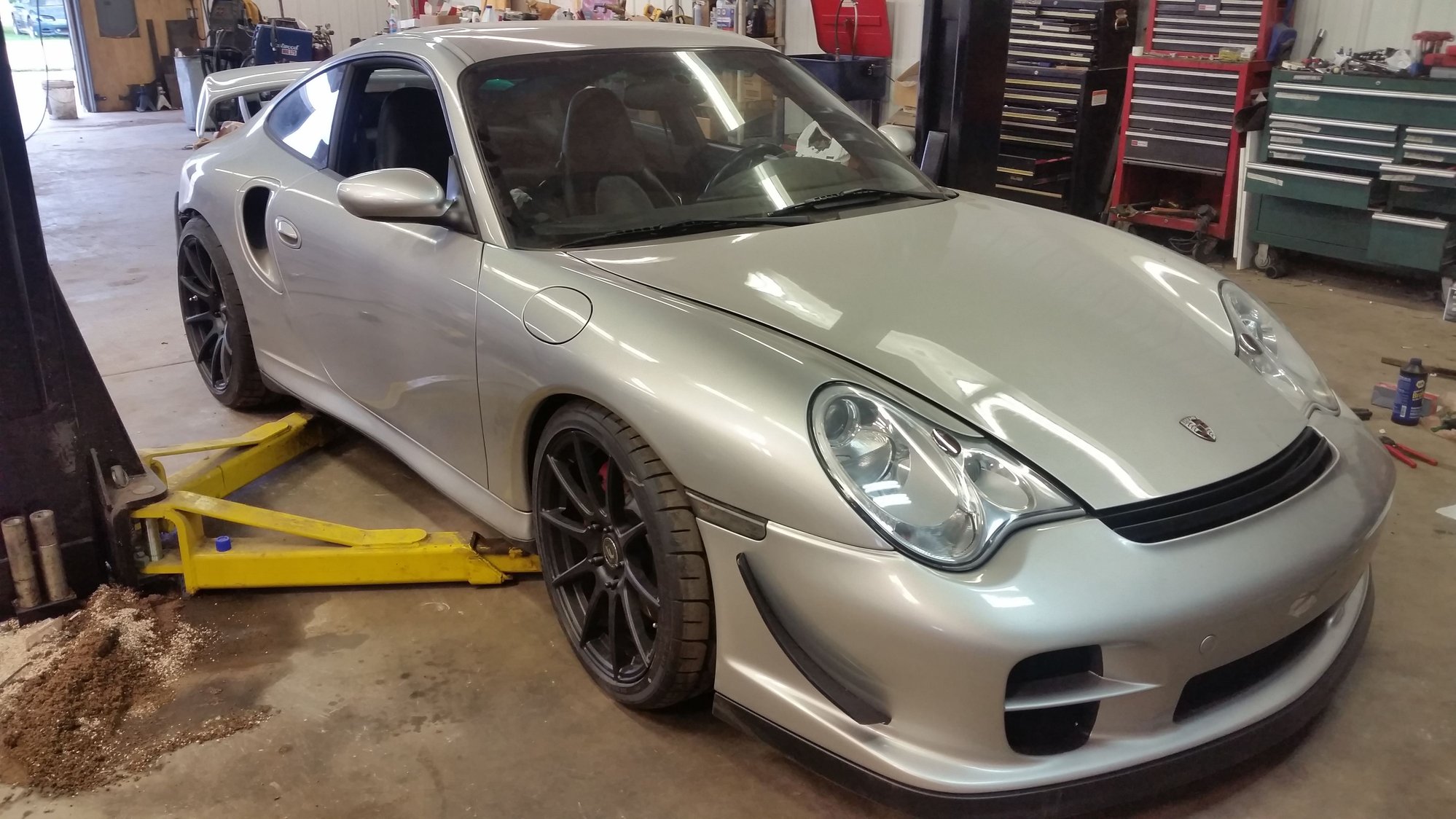

Will thought I was going to be able to finish the car over the weekend and today but just a little short. Overall I got a lot done though.

Built the exhaust, turned out ok, not as nice as I'd like it to have been. Also mig welded it because I didn't have time to tig it.

Ecu and wiring is 100% done

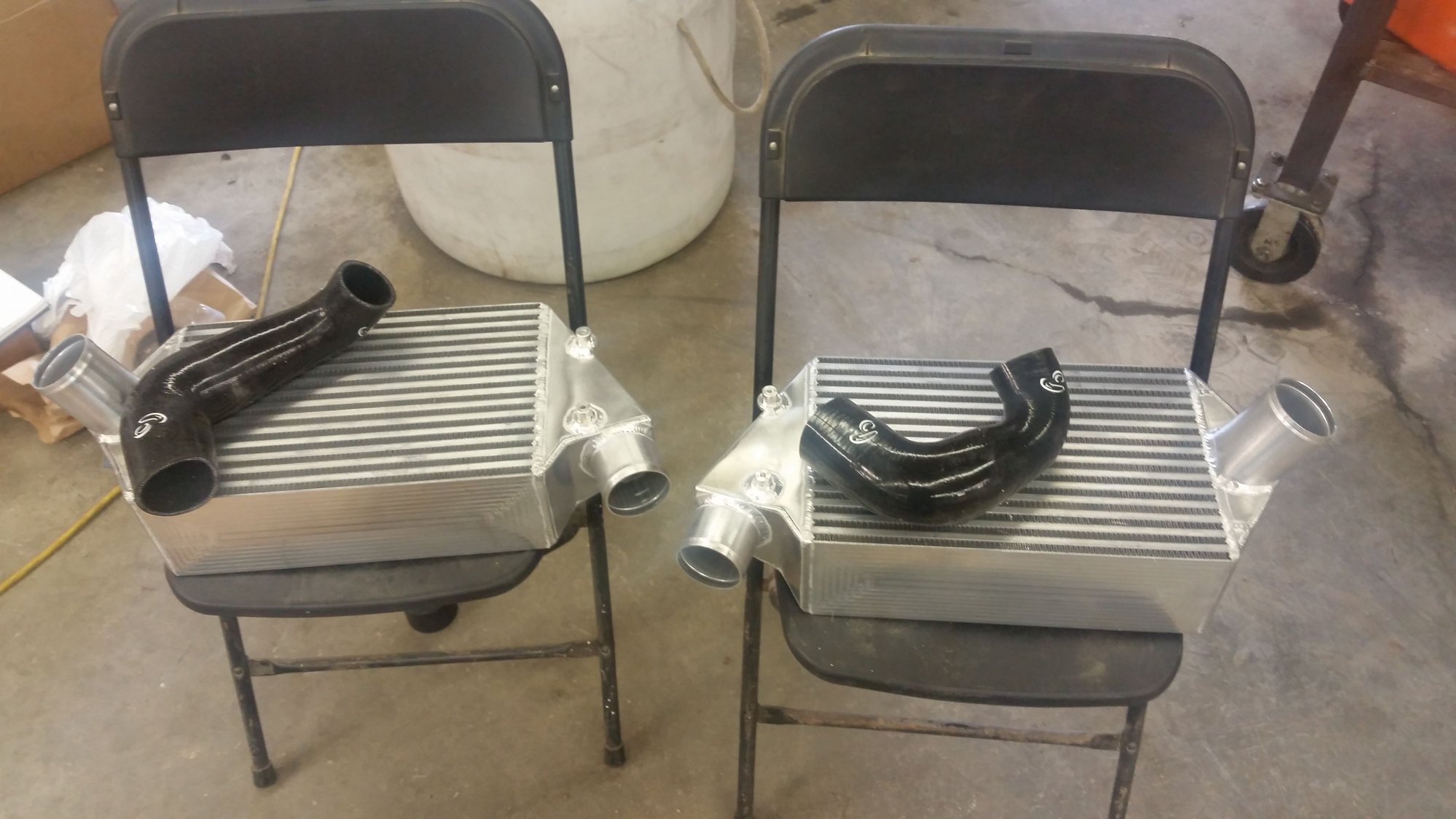

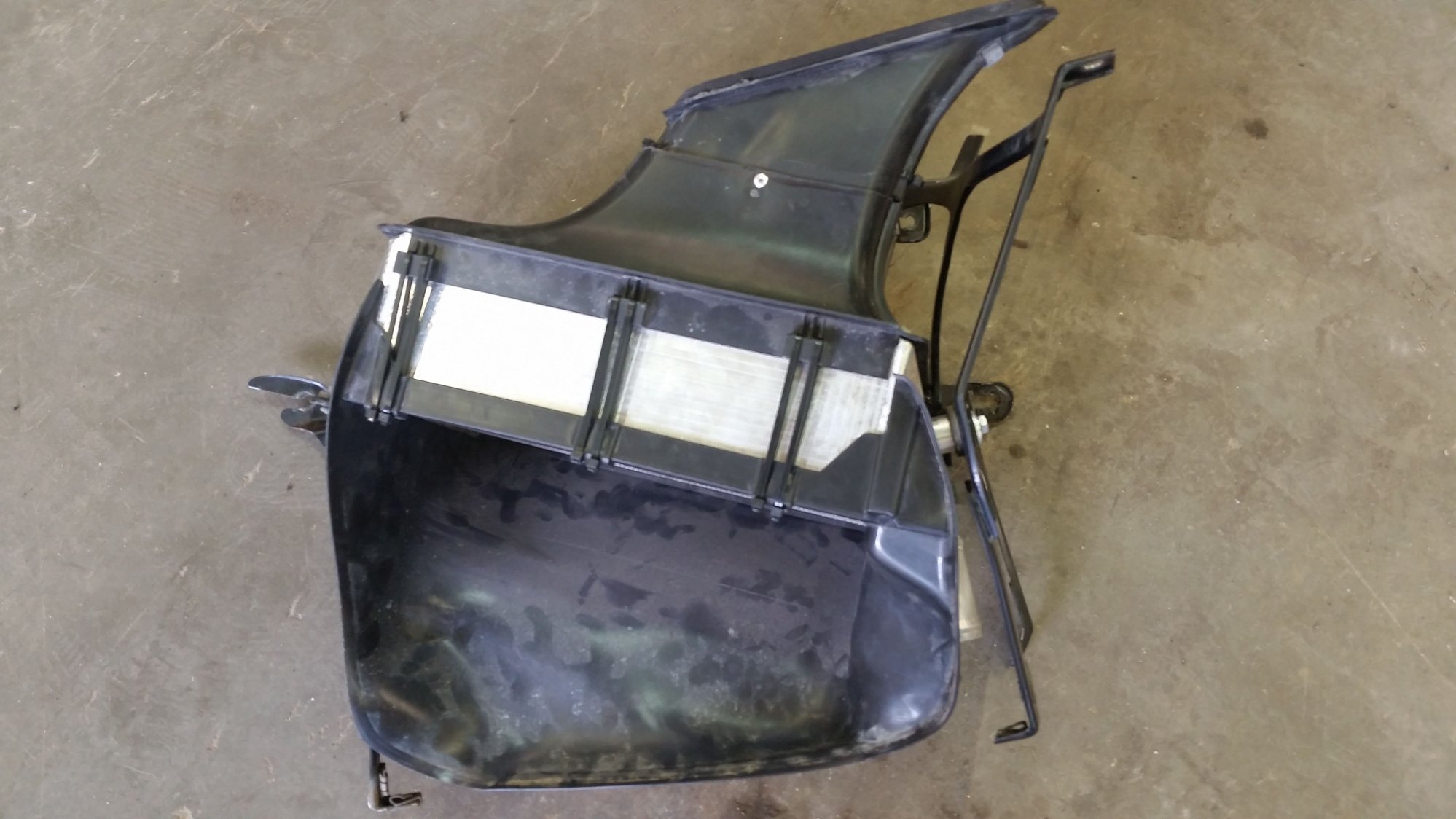

Srm 4.5 intercoolers in and shrouds modded

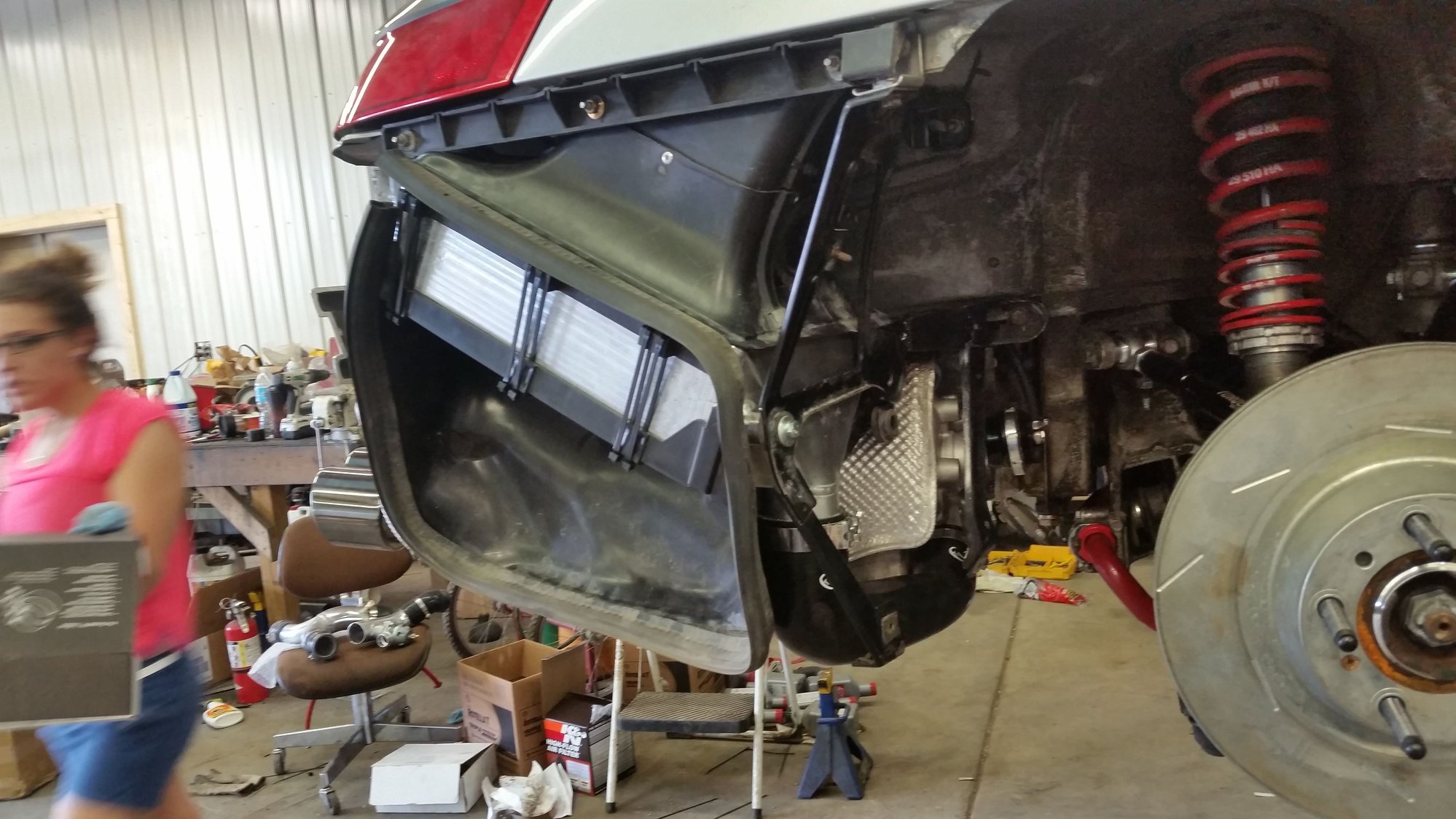

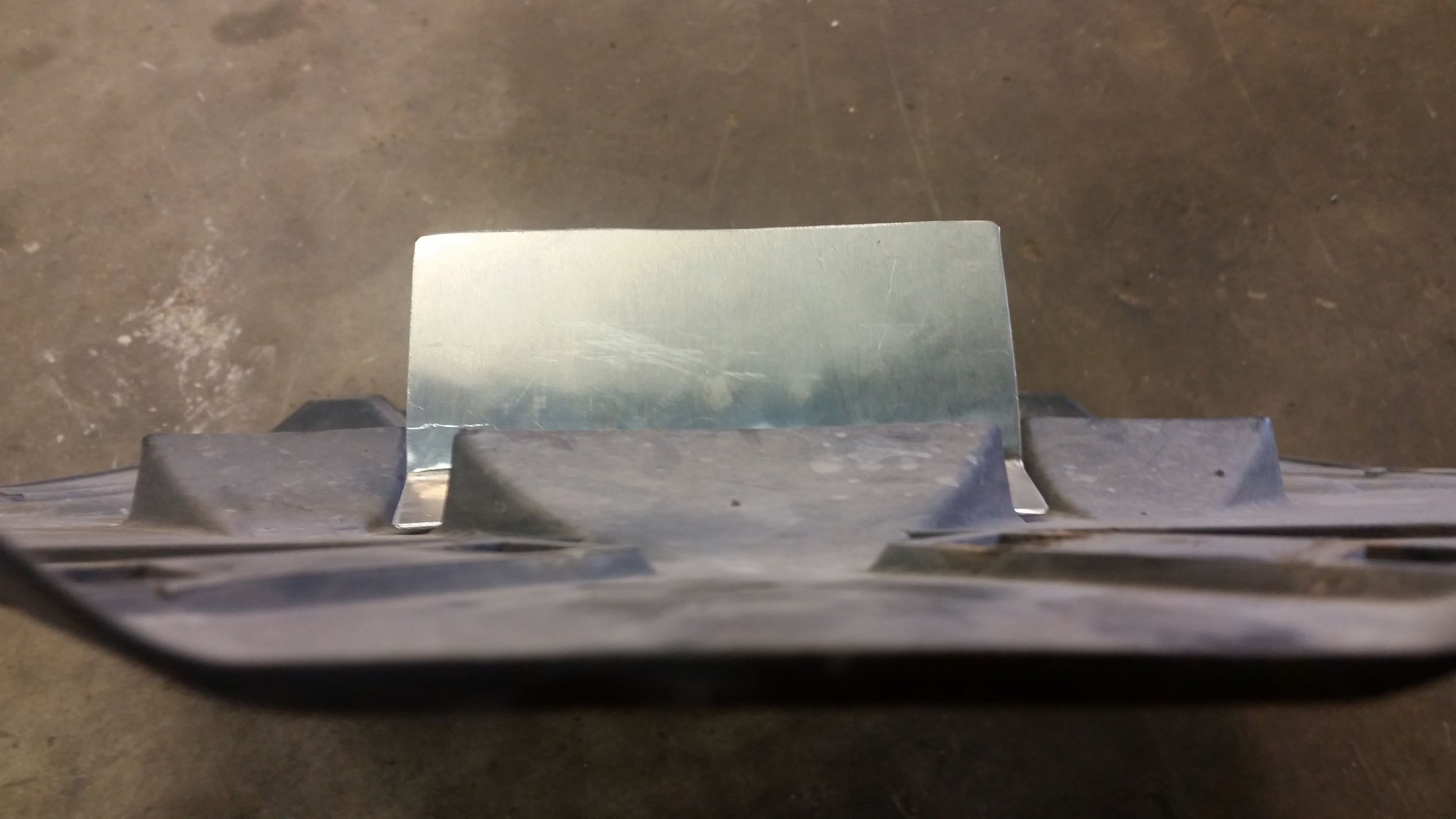

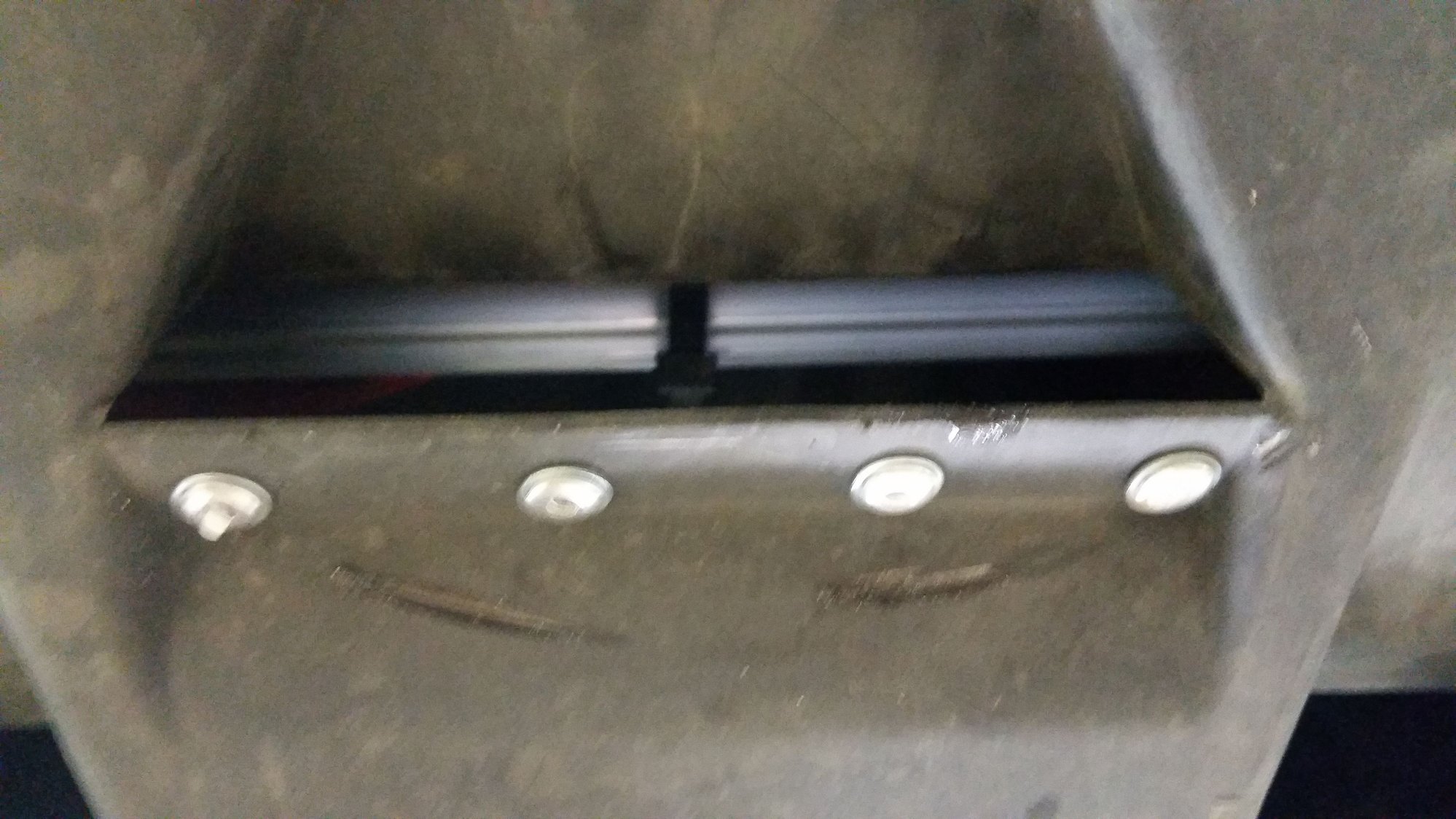

Scoop for my fuel cooler worked will with the factor diff vent.

Alignment is done

All I have left is install the y pipe, rear undertray, fender liners, and remount the air intakes. Then tuning.



















Old Jun 27, 2016 | 10:33 PM
  #83
brnrdtns's Avatar
Registered User
10 Year Member
Joined: Jan 2012
Posts: 1,717
From: Boise, Idaho
Rep Power: 149
brnrdtns Is a GOD !brnrdtns Is a GOD !brnrdtns Is a GOD !brnrdtns Is a GOD !brnrdtns Is a GOD !brnrdtns Is a GOD !brnrdtns Is a GOD !brnrdtns Is a GOD !brnrdtns Is a GOD !brnrdtns Is a GOD !brnrdtns Is a GOD !
Looking good. I'm interested in seeing what kind of power you can make with your turbo design.

Old Jun 28, 2016 | 06:18 AM
  #84
flewis763's Avatar
Thread Starter
|
Registered User
Joined: Jun 2015
Posts: 829
From: Fargo, ND
Rep Power: 76
flewis763 has a reputation beyond reputeflewis763 has a reputation beyond reputeflewis763 has a reputation beyond reputeflewis763 has a reputation beyond reputeflewis763 has a reputation beyond reputeflewis763 has a reputation beyond reputeflewis763 has a reputation beyond reputeflewis763 has a reputation beyond reputeflewis763 has a reputation beyond reputeflewis763 has a reputation beyond reputeflewis763 has a reputation beyond repute
Originally Posted by brnrdtns
Looking good. I'm interested in seeing what kind of power you can make with your turbo design.
Thanks. Yep should be very similar to the pineapple express numbers in the 725-750whp and 600wlb

Old Jun 28, 2016 | 04:08 PM
  #85
Sourcerock's Avatar
Registered User
Joined: Mar 2014
Posts: 115
From: YYC
Rep Power: 24
Sourcerock is a splendid one to beholdSourcerock is a splendid one to beholdSourcerock is a splendid one to beholdSourcerock is a splendid one to beholdSourcerock is a splendid one to beholdSourcerock is a splendid one to beholdSourcerock is a splendid one to behold
Originally Posted by flewis763
Thanks. Yep should be very similar to the pineapple express numbers in the 725-750whp and 600wlb
Impressive project, well done.

How many miles on the motor ? I think internals are stock ?

Old Jun 28, 2016 | 06:07 PM
  #86
flewis763's Avatar
Thread Starter
|
Registered User
Joined: Jun 2015
Posts: 829
From: Fargo, ND
Rep Power: 76
flewis763 has a reputation beyond reputeflewis763 has a reputation beyond reputeflewis763 has a reputation beyond reputeflewis763 has a reputation beyond reputeflewis763 has a reputation beyond reputeflewis763 has a reputation beyond reputeflewis763 has a reputation beyond reputeflewis763 has a reputation beyond reputeflewis763 has a reputation beyond reputeflewis763 has a reputation beyond reputeflewis763 has a reputation beyond repute
Originally Posted by Sourcerock
Impressive project, well done.

How many miles on the motor ? I think internals are stock ?
Yes stock internals. Motor has 60k

Old Jun 28, 2016 | 11:24 PM
  #87
brnrdtns's Avatar
Registered User
10 Year Member
Joined: Jan 2012
Posts: 1,717
From: Boise, Idaho
Rep Power: 149
brnrdtns Is a GOD !brnrdtns Is a GOD !brnrdtns Is a GOD !brnrdtns Is a GOD !brnrdtns Is a GOD !brnrdtns Is a GOD !brnrdtns Is a GOD !brnrdtns Is a GOD !brnrdtns Is a GOD !brnrdtns Is a GOD !brnrdtns Is a GOD !
Originally Posted by flewis763
Thanks. Yep should be very similar to the pineapple express numbers in the 725-750whp and 600wlb
I thought K16 billets were limited to about 600 wheel. Maybe your design is better but it's tough to imagine k16 anything getting 725 wheel. You sure about that? I think 720 is about maxed for k24 hybrids.

Old Jun 29, 2016 | 12:48 AM
  #88
DSCOFF's Avatar
Registered User
Joined: Sep 2013
Posts: 1,117
From: North NJ
Rep Power: 173
DSCOFF Is a GOD !DSCOFF Is a GOD !DSCOFF Is a GOD !DSCOFF Is a GOD !DSCOFF Is a GOD !DSCOFF Is a GOD !DSCOFF Is a GOD !DSCOFF Is a GOD !DSCOFF Is a GOD !DSCOFF Is a GOD !DSCOFF Is a GOD !
Originally Posted by brnrdtns
... I think 720 is about maxed for k24 hybrids.
I made 775RWHP on K24/20s (on E85)

Old Jun 29, 2016 | 04:49 AM
  #89
flewis763's Avatar
Thread Starter
|
Registered User
Joined: Jun 2015
Posts: 829
From: Fargo, ND
Rep Power: 76
flewis763 has a reputation beyond reputeflewis763 has a reputation beyond reputeflewis763 has a reputation beyond reputeflewis763 has a reputation beyond reputeflewis763 has a reputation beyond reputeflewis763 has a reputation beyond reputeflewis763 has a reputation beyond reputeflewis763 has a reputation beyond reputeflewis763 has a reputation beyond reputeflewis763 has a reputation beyond reputeflewis763 has a reputation beyond repute
Originally Posted by brnrdtns
I thought K16 billets were limited to about 600 wheel. Maybe your design is better but it's tough to imagine k16 anything getting 725 wheel. You sure about that? I think 720 is about maxed for k24 hybrids.
Not running billet k16s (I should probabaly update the first page). Running what I call a k20/ billet 20g. Turbine wheel is half way between a k16 and a k24 and compressor is a billet 20g. At 30 psi the turbos would be capable of making just over 900whp. I'm running e85 though, not just pump gas
Originally Posted by freyyc
Who's going to tune it?
Matt Sandbeck of srd in fargo, nd
Originally Posted by DSCOFF
I made 775RWHP on K24/20s (on E85)
Yep exactly, big potential.

Big thing I have that many don't is 0 emissions stuff on thay car. No cats, filters right on the turbos now I decided last night and bought different ones...again, no evap, and proefi. My extra power potential on the same size setup compared to someone else that has to meet emissions is quite a bit higher.

Old Jun 29, 2016 | 08:55 AM
  #90
brnrdtns's Avatar
Registered User
10 Year Member
Joined: Jan 2012
Posts: 1,717
From: Boise, Idaho
Rep Power: 149
brnrdtns Is a GOD !brnrdtns Is a GOD !brnrdtns Is a GOD !brnrdtns Is a GOD !brnrdtns Is a GOD !brnrdtns Is a GOD !brnrdtns Is a GOD !brnrdtns Is a GOD !brnrdtns Is a GOD !brnrdtns Is a GOD !brnrdtns Is a GOD !
Oh yah, I forgot that you changed the turbine also. This is still on a k16 frame though, right?
