First check the loom connections under the seat to ensure they are properly locked and then check the fuse panel.
Registered User
Joined: Nov 2014
Posts: 2
From: PA
Rep Power: 0
Thank you, where are they located under the seat. Does anyone have pics of what I should be looking for their or in the fuse box? thank you
Registered User
Joined: Oct 2011
Posts: 543
From: Thornhill, Ontario CANADA
Rep Power: 49
I would first disconnect both batteries (remove negative terminal from starter battery and then negative terminal from main battery. Reconnect in reverse order. When you reconnect the batteries, there are some initialization steps to undertake (resetting side windows, etc)). Give the car 15 minutes to sort itself out after reconnection.
The fuse location is in the drivers facia fusebox (close to the interior hood release). It is a 5 amp fuse. (see location diagram with yellow highlight).

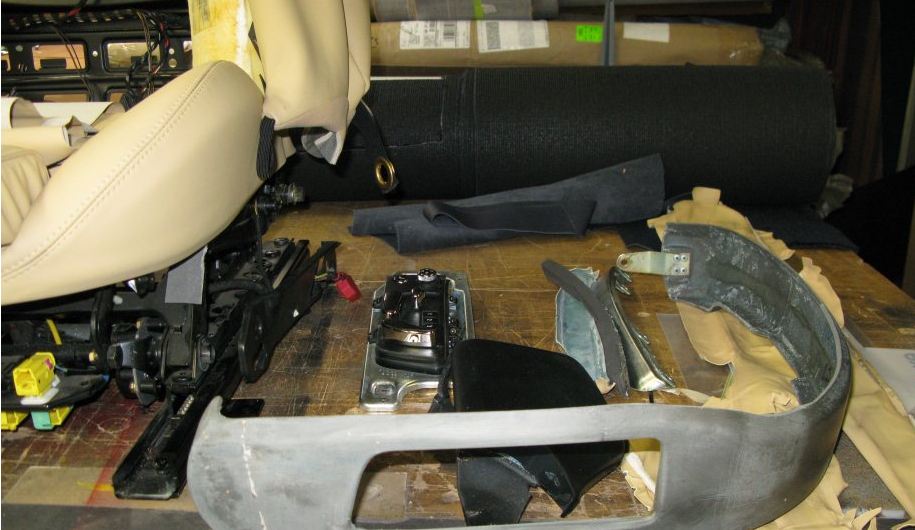

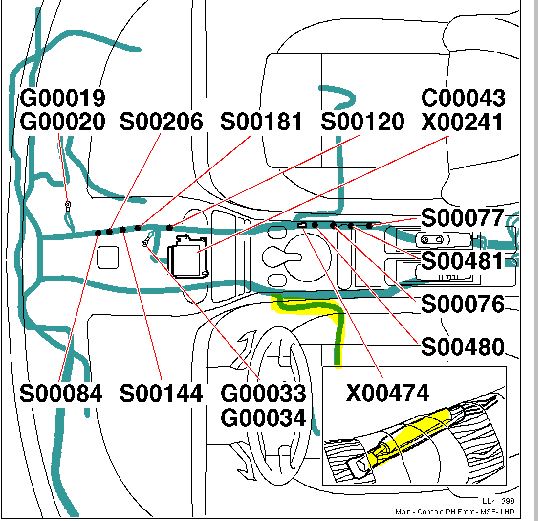

The airbag controller is in the center console (see C00043 in the attachment). The wiring loom for the driver's seat comes from the center console to the driver's seat (I think the harness is under the floor liner). See the attached diagram looking for X00474 (yellow highlights). Be VERY careful not to fire the airbag. If you have any hesitancy, seek help from a professional. You may have to remove the seat. I have also included a shot of one of my seats when we re-upholstered. You can see the front surround cover is off and some of the myriad connections (red and yellow and yellow/green are visible).
The fuse location is in the drivers facia fusebox (close to the interior hood release). It is a 5 amp fuse. (see location diagram with yellow highlight).
The airbag controller is in the center console (see C00043 in the attachment). The wiring loom for the driver's seat comes from the center console to the driver's seat (I think the harness is under the floor liner). See the attached diagram looking for X00474 (yellow highlights). Be VERY careful not to fire the airbag. If you have any hesitancy, seek help from a professional. You may have to remove the seat. I have also included a shot of one of my seats when we re-upholstered. You can see the front surround cover is off and some of the myriad connections (red and yellow and yellow/green are visible).
