I did think there was a scenario when there was no external amp, but I am prepared to be wrong!



Was, for cayenne, but not for 997.



Serg, when I look at the schematics they say that both ASK and Bose are options, what happens if you specify neither of these options?

Also the schematics show the speaker wires going into the ASK amp, not into the rear of the PCM as Phil has?



When 997 was new car there wasn't such alternative to choose nothing. Or ASK or BOSE. In fact Philipp car have ASK option.

Sure speakers connected to amp, how can it be else?))
Philipp was told by some electrician, who was wrong. So...



Hi Serg,
Hi Tim,

today i put off the plastics, but i couldnt find any amp

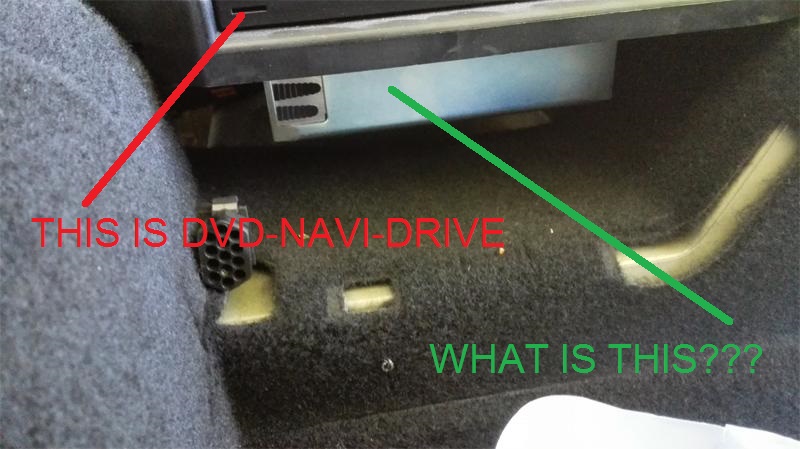

first two photos - silver brick - what is that?



thats the dvd unit for the navi as on pic 4



wrong answer



Thanks Serg - You are absolutely right it is the amp:



I didnt think that porsche could fit it under the dvd unit.

So now i have to swap this against the new one:



and buy 3B7035447 to connect.

Am i right?

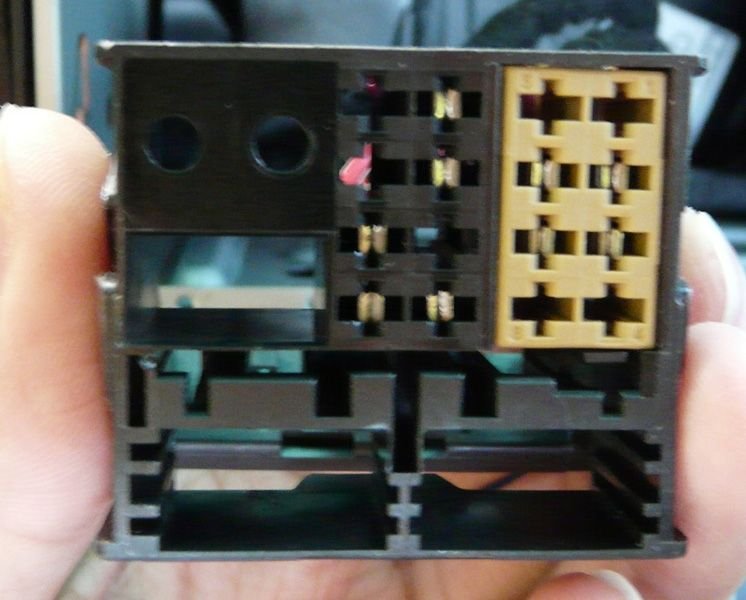

no, leave that in place, buy only plug.



ok, but where should i connect the plug? - at the pcm3?

As this looks fair different?

http://www.ebay.com/itm/VW-OEM-Radio-Connector-For-Audi-VW-SEAT-SKODA-Radio-Bluetooth-3B7-035-447-B-/221520153164



what s wrong with your google? http://www.google.com/search?q=3B7035447



... The never ending thread!

Recently completed my conversion



ac unit fighted?



AC not working yet but I'm hoping it will be soon. I was in Porsche dealer for hours this week going over parts between my car and 2009 Turbo. It seems the AC compressor and Evaporator (temp sensor etc) are all the same, the only change being the control unit and wiring loom. I plan to get wiring loom form 2009 Turbo and fit it to my AC and controller and then it should work.
