Hello all my new friends!

On my DB9 Volante I have a frozen latch for the deck of the top. It is in the closed position and I can't get it to open. Any ideas on how to fix that without having to dismantle the motor that is hidden behind the rear window motor?

Thanks

Francis
[img alt="Hete is the gap
"]https://cimg8.ibsrv.net/gimg/www.6speedonline.com-vbulletin/2000x1504/17360697689164068050493634740169_26616f0bcd6e8d270 f7580ebd690196f7afe8445.jpg[/img]

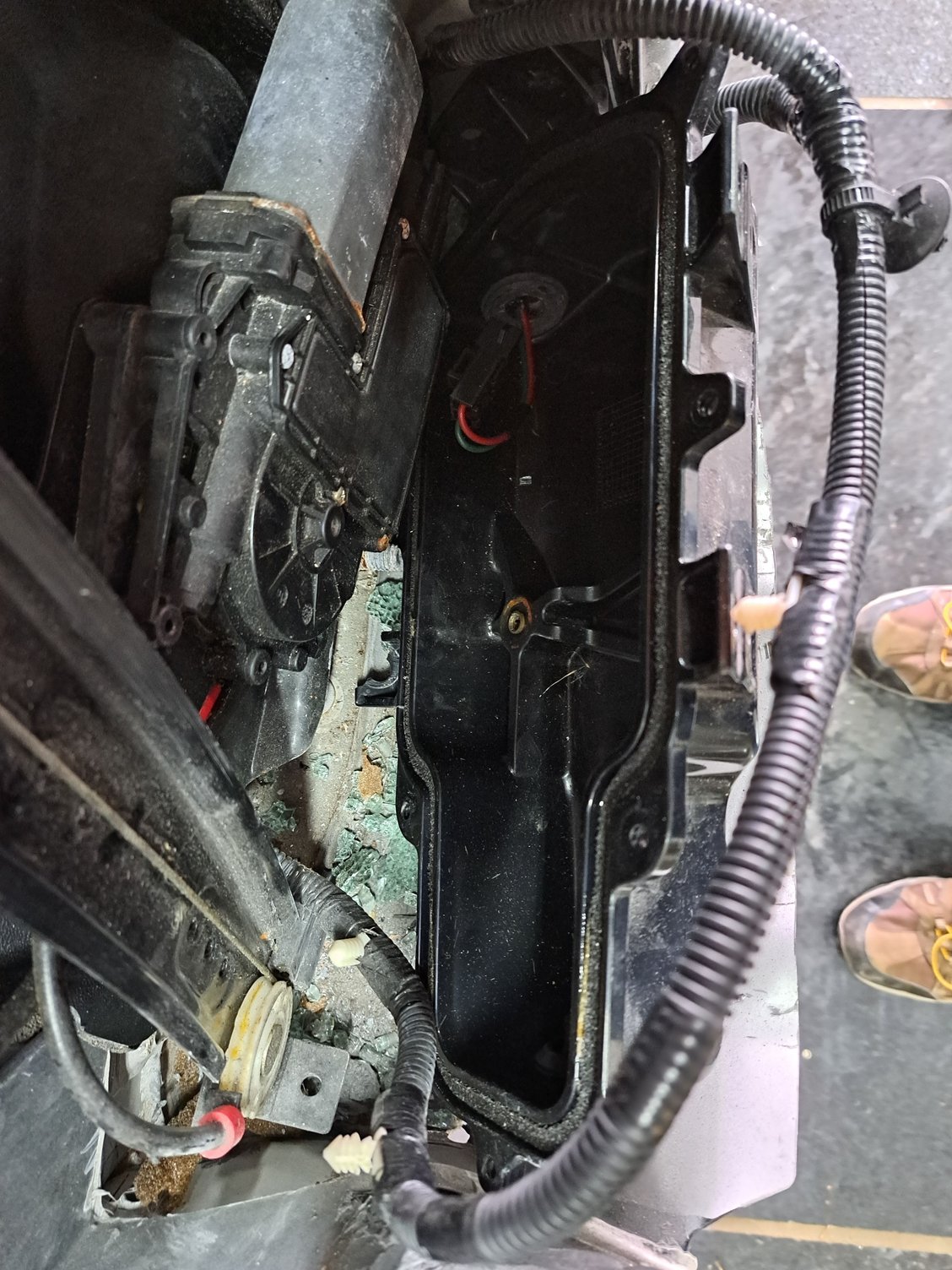

Here is the gap

Motor assembly taken from my parts car. I had to pry it from behind the window mechanism...



Have you tried putting 12V on it? It wouldn't surprise me that it is like the motors for electric parking brakes - runs till it torques out. Try running it backwards?



I thought about it but the motor is inside a plastic box in two parts screwed together. 7 screws 6 of which are hidden by the widow motor/ mechanism.

The screwed panel on the box is fairly flimsy and could be cut with a cutter knife and glued back but it would be messy and still behind the window motor.

I may have to resort to that in the end.

Francis



I would just add 12v (from a battery tender/charger) to the connector at the end of the pig tail and see what happens. If it doesn't spin or gets hot, stop!

Unfortunately I have the coupe wiring diagram and not the volante. Sheets 17, 18, & 19 would be most informative if anyone has them!





All the wiring diagrams (including Volante) are in the DB9 workshop manual, link below

https://db9s.com/db9-manuals-and-brochures/



Thanks,

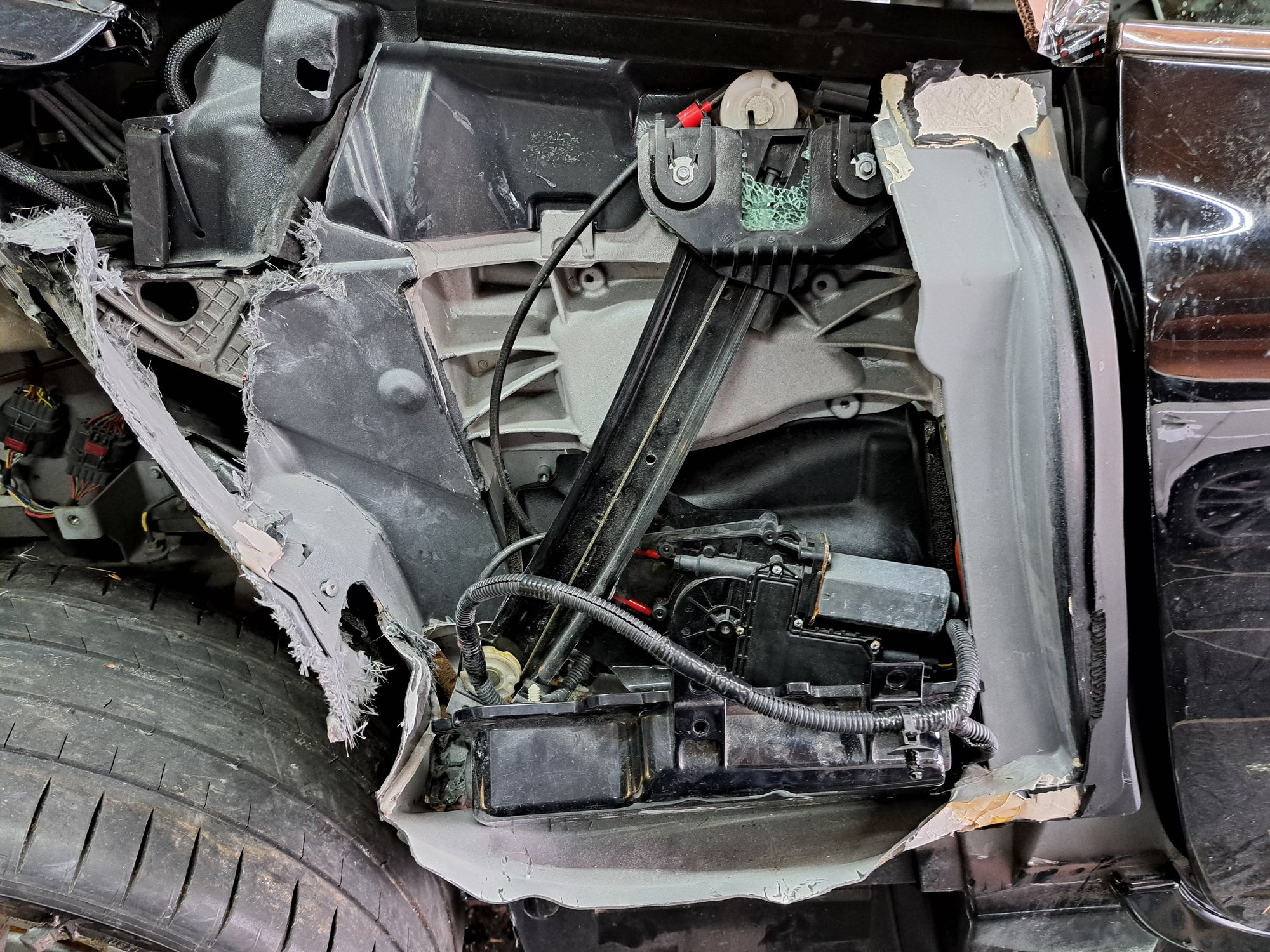

Pictures of the rear-end damaged car.



Thanks for the links!
