DIY Head Light Switch Remove and Replace

Both of my head lights suddenly cut out and I figured it was the dashboard switch. Got a replacement from Sunset Porsche for about $80.

Thought I'd take a few snaps detailing the process for the rest of you gear heads!

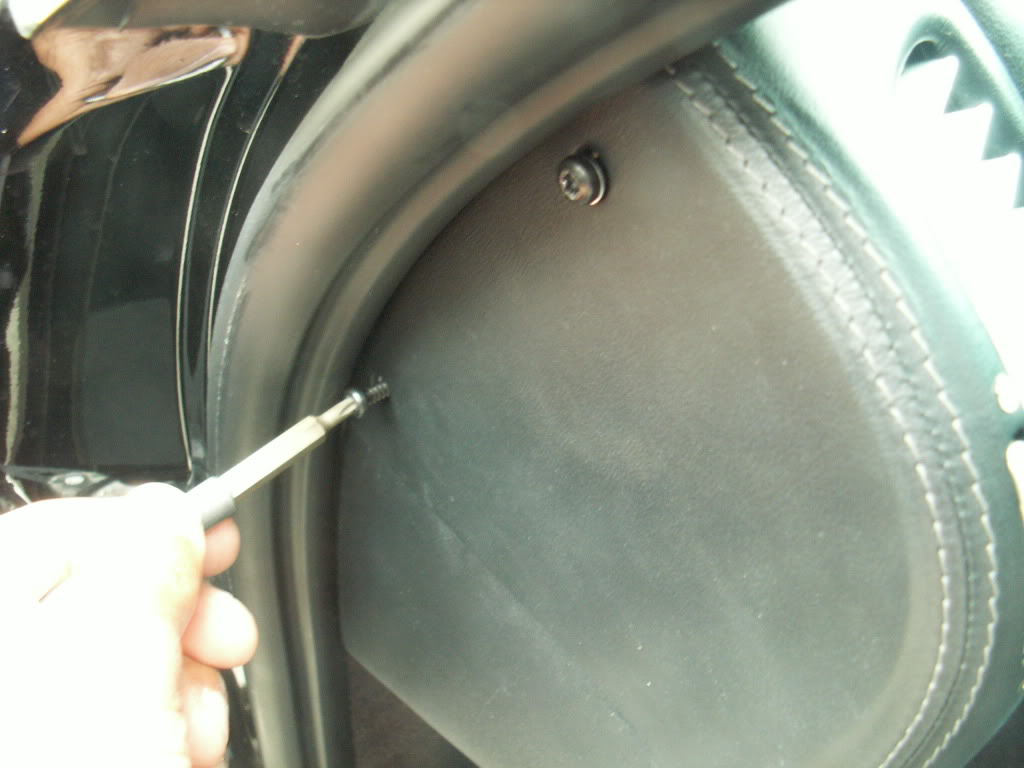

1- Disconnect battery. Then take out two #20 tork screws on the lateral aspect of the left AC vent:

Name:  PICT0009-1.jpg
Views: 2577
Size:  107.4 KB

2- remove the light switch **** by pushing in the lock under the **** with a small screw driver and pulling

Name:  PICT0012-1.jpg
Views: 2944
Size:  123.4 KB

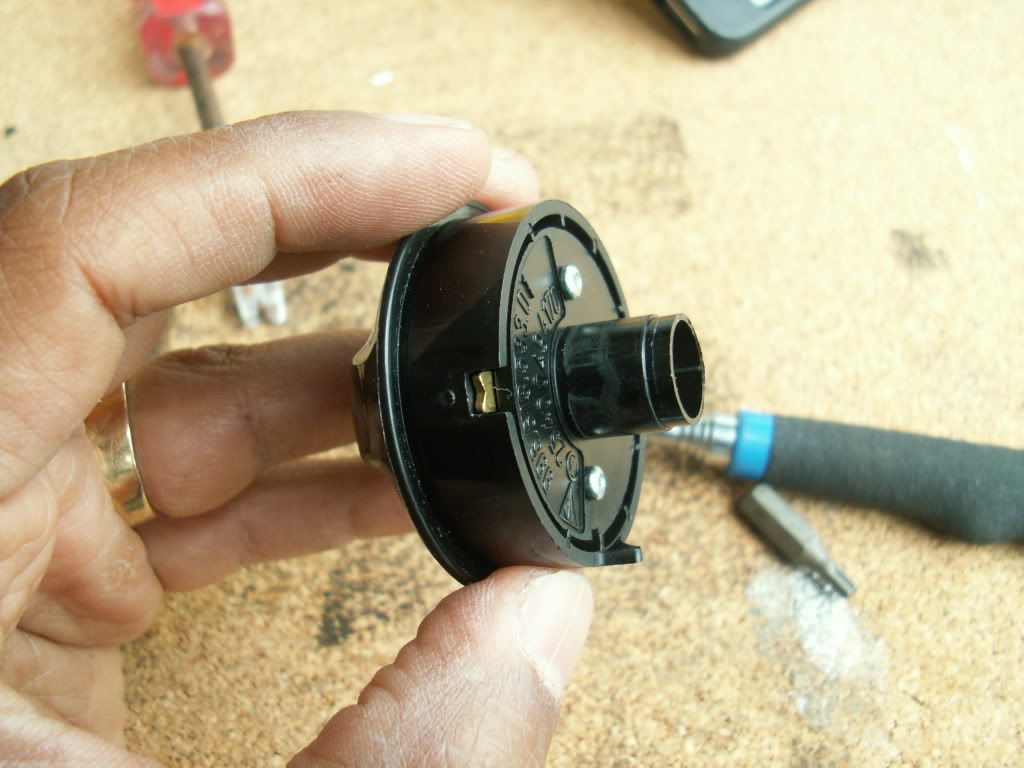

Name:  PICT0011-1.jpg
Views: 2603
Size:  122.4 KB

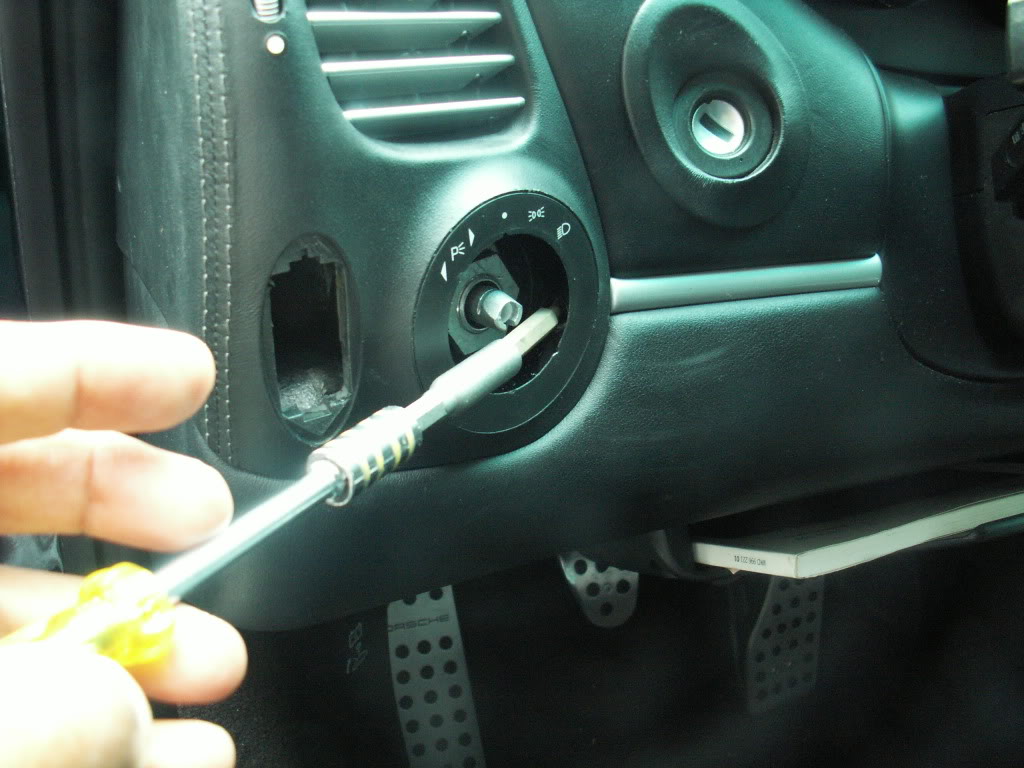

3- remove 3rd tork screw in medial aspect, behind ****:

Name:  PICT0008-1.jpg
Views: 2587
Size:  139.5 KB

4- pull AC vent straight back- surprisingly snug- requires a firm pull

Name:  PICT0006-1.jpg
Views: 2591
Size:  144.5 KB

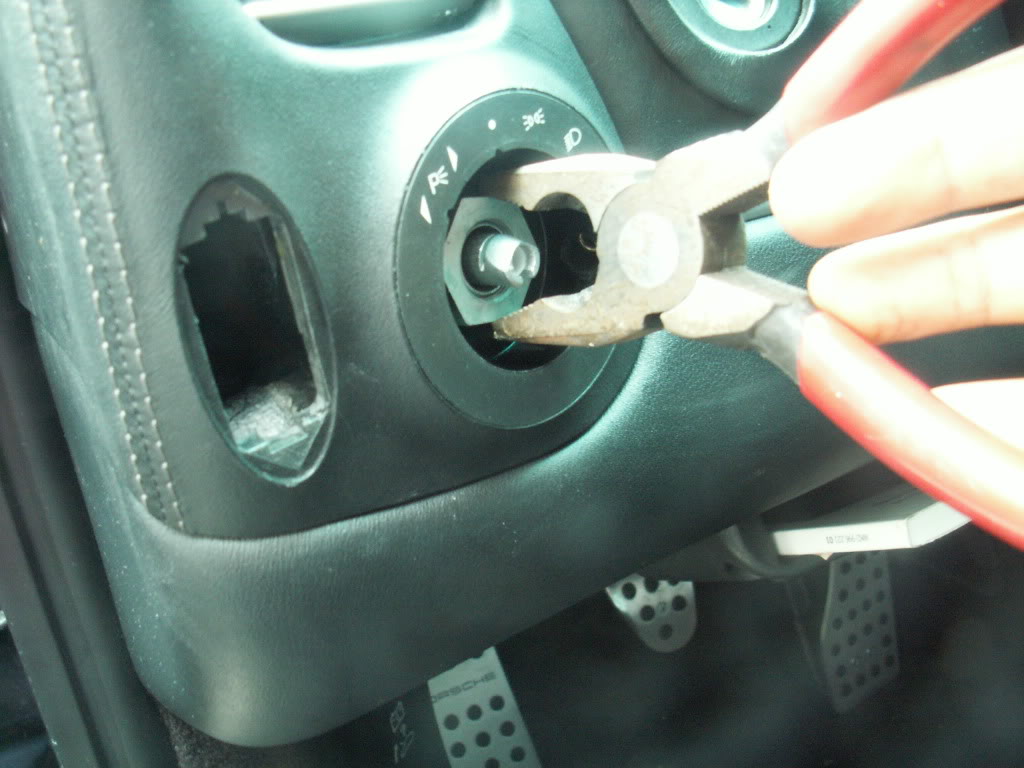

5- remove nut around light switch

Name:  PICT0007-1.jpg
Views: 2830
Size:  123.8 KB


6- disconnect electrical connections

Name:  PICT0005-1.jpg
Views: 2564
Size:  159.7 KB

Name:  PICT0004-1.jpg
Views: 2547
Size:  145.8 KB

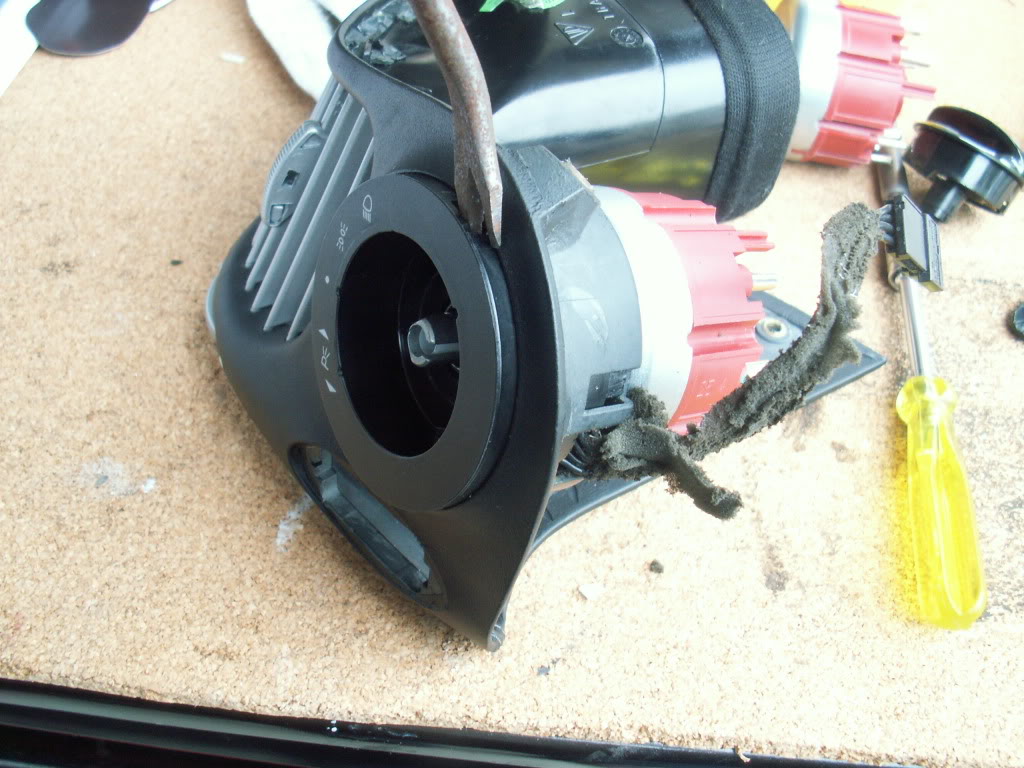

7- remove bezel around **** and switch

Name:  PICT0001-1.jpg
Views: 2576
Size:  167.7 KB

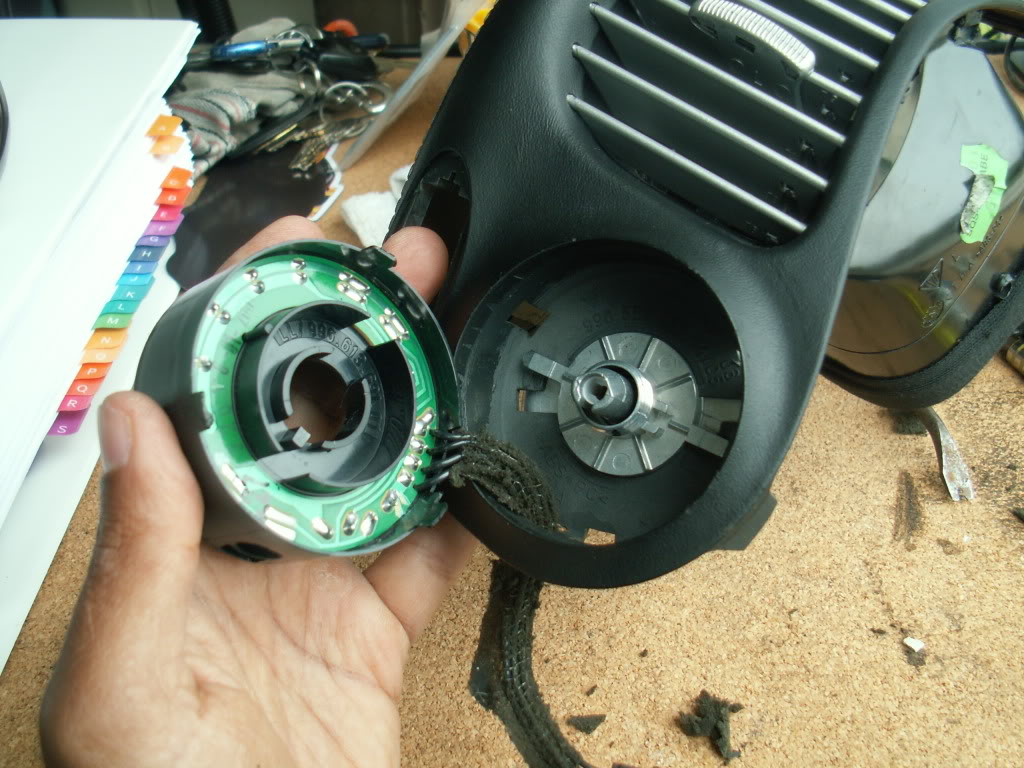

8- twist switch to remove

Name:  PICT0003-1.jpg
Views: 2577
Size:  182.9 KB

9- when replacing make sure groove in switch lines up with grove in bezel or else bezel will not seat flush.

10- reconnect battery and off to Mexico for some late night runs!

Name:  PICT0013-2.jpg
Views: 2595
Size:  116.2 KB




6-

  #2
Old 06-25-2009, 04:19 PM
Registered User
Join Date: Sep 2005
Location: Tx
Posts: 132
Rep Power: 19
hardtop
Thanks for the write up.

  #3
Old 06-25-2009, 04:42 PM
ColoradoSilver's Avatar
Registered User
Join Date: May 2009
Location: Denver, CO
Posts: 464
Rep Power: 39
ColoradoSilver has much to be proud ofColoradoSilver has much to be proud ofColoradoSilver has much to be proud ofColoradoSilver has much to be proud ofColoradoSilver has much to be proud ofColoradoSilver has much to be proud ofColoradoSilver has much to be proud ofColoradoSilver has much to be proud ofColoradoSilver has much to be proud of
Nice Write up.

I recently spent $190 at the dealer for parts + labor to have mine replaced.

Looks like this would have been the easiest way to save myself that hassle.

  #4
Old 06-25-2009, 05:02 PM
skandalis447's Avatar
Registered User
Join Date: Dec 2007
Location: Athens
Age: 41
Posts: 1,685
Rep Power: 129
skandalis447 has a reputation beyond reputeskandalis447 has a reputation beyond reputeskandalis447 has a reputation beyond reputeskandalis447 has a reputation beyond reputeskandalis447 has a reputation beyond reputeskandalis447 has a reputation beyond reputeskandalis447 has a reputation beyond reputeskandalis447 has a reputation beyond reputeskandalis447 has a reputation beyond reputeskandalis447 has a reputation beyond reputeskandalis447 has a reputation beyond repute
In my previous 996C2C sometimes the lights did not came up...was it the switch or a relay?

  #5
Old 06-25-2009, 08:17 PM
SaintGT2's Avatar
Registered User
Join Date: Apr 2009
Location: Australia
Posts: 254
Rep Power: 24
SaintGT2 is just really niceSaintGT2 is just really niceSaintGT2 is just really niceSaintGT2 is just really niceSaintGT2 is just really nice
Thanks, great write up.

  #6
Old 11-15-2009, 09:26 AM
braj28's Avatar
Registered User
Join Date: Oct 2008
Location: NOVA
Posts: 24
Rep Power: 0
braj28 will become famous soon enough
Thanks for the great write up.

I had my light switch intermittently not work and was going to order another part when I remembered that I had the MAF cleaning stuff I had bought. So i sprayed the contacts of the switch and down the tube of the switch and reconnected the **** and tuned it around in all the light positions to allow the liquid to clean within the switch assembly.

After letting the switch dry I reconnected everything and the lights now are working great.

So if you have the MAF cleaning stuff give it a try and the switch might come back to life.

  #7
Old 11-15-2009, 11:28 AM
smistry007's Avatar
Registered User
Thread Starter
Join Date: Jul 2005
Location: Palos Verdes, California
Age: 53
Posts: 553
Rep Power: 65
smistry007 has a reputation beyond reputesmistry007 has a reputation beyond reputesmistry007 has a reputation beyond reputesmistry007 has a reputation beyond reputesmistry007 has a reputation beyond reputesmistry007 has a reputation beyond reputesmistry007 has a reputation beyond reputesmistry007 has a reputation beyond reputesmistry007 has a reputation beyond reputesmistry007 has a reputation beyond reputesmistry007 has a reputation beyond repute
Originally Posted by braj28 View Post
Thanks for the great write up.

I had my light switch intermittently not work and was going to order another part when I remembered that I had the MAF cleaning stuff I had bought. So i sprayed the contacts of the switch and down the tube of the switch and reconnected the **** and tuned it around in all the light positions to allow the liquid to clean within the switch assembly.

After letting the switch dry I reconnected everything and the lights now are working great.

So if you have the MAF cleaning stuff give it a try and the switch might come back to life.

this is a great idea for this and probably any other electrical switch. After all, these switches are exactly cheap anyways!

  #8
Old 11-15-2009, 11:57 AM
a66cobra1's Avatar
Registered User
Join Date: Sep 2008
Location: Italia
Posts: 311
Rep Power: 31
a66cobra1 is a splendid one to beholda66cobra1 is a splendid one to beholda66cobra1 is a splendid one to beholda66cobra1 is a splendid one to beholda66cobra1 is a splendid one to beholda66cobra1 is a splendid one to beholda66cobra1 is a splendid one to behold
Yep, that is exactly how it goes, I went this path last weekend. Now I feel bad that I didn't take pics and post em up. Great idea and this will be very helpful to those of us in need.

  #9
Old 11-19-2009, 09:04 PM
Registered User
Join Date: May 2008
Location: St. Louis Park, MN
Posts: 233
Rep Power: 30
911TurboRules has much to be proud of911TurboRules has much to be proud of911TurboRules has much to be proud of911TurboRules has much to be proud of911TurboRules has much to be proud of911TurboRules has much to be proud of911TurboRules has much to be proud of911TurboRules has much to be proud of
Thanks for the write up and helpful photos!!!

Did cleaning the switch connectors fix your problem once and for all? Did the problem come back? I'm wondering because I saw another post from someone else who replaced the light switch and it turned out to be the ignition switch.

I have a 2002 Turbo and the headlights (both) sometimes don't turn on. Most of the time they do turn on. Sometimes I just have to turn the switch off and on a few times and it comes on. Sometimes I have to shut the car down and restart the engine and turn the light switch on.

Thanks,
Paul

  #10
Old 12-12-2009, 08:27 PM
Registered User
Join Date: May 2008
Location: St. Louis Park, MN
Posts: 233
Rep Power: 30
911TurboRules has much to be proud of911TurboRules has much to be proud of911TurboRules has much to be proud of911TurboRules has much to be proud of911TurboRules has much to be proud of911TurboRules has much to be proud of911TurboRules has much to be proud of911TurboRules has much to be proud of
Awesome write up! It is easy to follow, photos were very useful and 100% accurate!!! Thanks!

I replaced the ignition switch and the light switch still intermittently did not work. I then replaced the light switch and everything works great! I wasted $30 in misdiagnosing the ignition switch. Not bad.

Paul

  #11
Old 02-13-2010, 12:20 AM
stefenolsen's Avatar
Registered User
Join Date: May 2007
Location: Fairfax, Virginia
Posts: 262
Rep Power: 22
stefenolsen is on a distinguished road
Talking Thank You

I know this is an old thread, but I hope to try this to fix my problem with my headlights not coming on. Thanks I'll let you know my outcome soon.

  #12
Old 02-13-2010, 09:51 AM
Registered User
Join Date: May 2009
Location: Finland
Posts: 20
Rep Power: 0
hartar197 is on a distinguished road
Thank you

  #13
Old 02-14-2010, 10:47 AM
braj28's Avatar
Registered User
Join Date: Oct 2008
Location: NOVA
Posts: 24
Rep Power: 0
braj28 will become famous soon enough
Originally Posted by 911TurboRules View Post
...
Did cleaning the switch connectors fix your problem once and for all? Did the problem come back? I'm wondering because I saw another post from someone else who replaced the light switch and it turned out to be the ignition switch.
...
Thanks,
Paul
Yes, cleaning the switch has fixed my lights, have not had a single issue since.

  #14
Old 02-14-2010, 11:45 AM
steve harris's Avatar
Registered User
Join Date: Nov 2005
Location: rocklin ca
Posts: 3,672
Rep Power: 254
steve harris has a reputation beyond reputesteve harris has a reputation beyond reputesteve harris has a reputation beyond reputesteve harris has a reputation beyond reputesteve harris has a reputation beyond reputesteve harris has a reputation beyond reputesteve harris has a reputation beyond reputesteve harris has a reputation beyond reputesteve harris has a reputation beyond reputesteve harris has a reputation beyond reputesteve harris has a reputation beyond repute
makes me happy i'm never out after dark( in the 996tt )

  #15
Old 10-19-2010, 06:34 PM
2001Porsche911's Avatar
Registered User
Join Date: Nov 2008
Location: Bowmanville, Ontario
Posts: 65
Rep Power: 13
2001Porsche911 is on a distinguished road
We just bought a 2004 C4S and got a PPI done, they said the headlights are not working and said it is most likely the switch. Can you guys tell me what lights work on your car when the switch stops working? Does complete headlight unit not work or just the high/low beam? Do the fog lamps in the headlight work?
